Summary of Contents for Schlage Everest 29

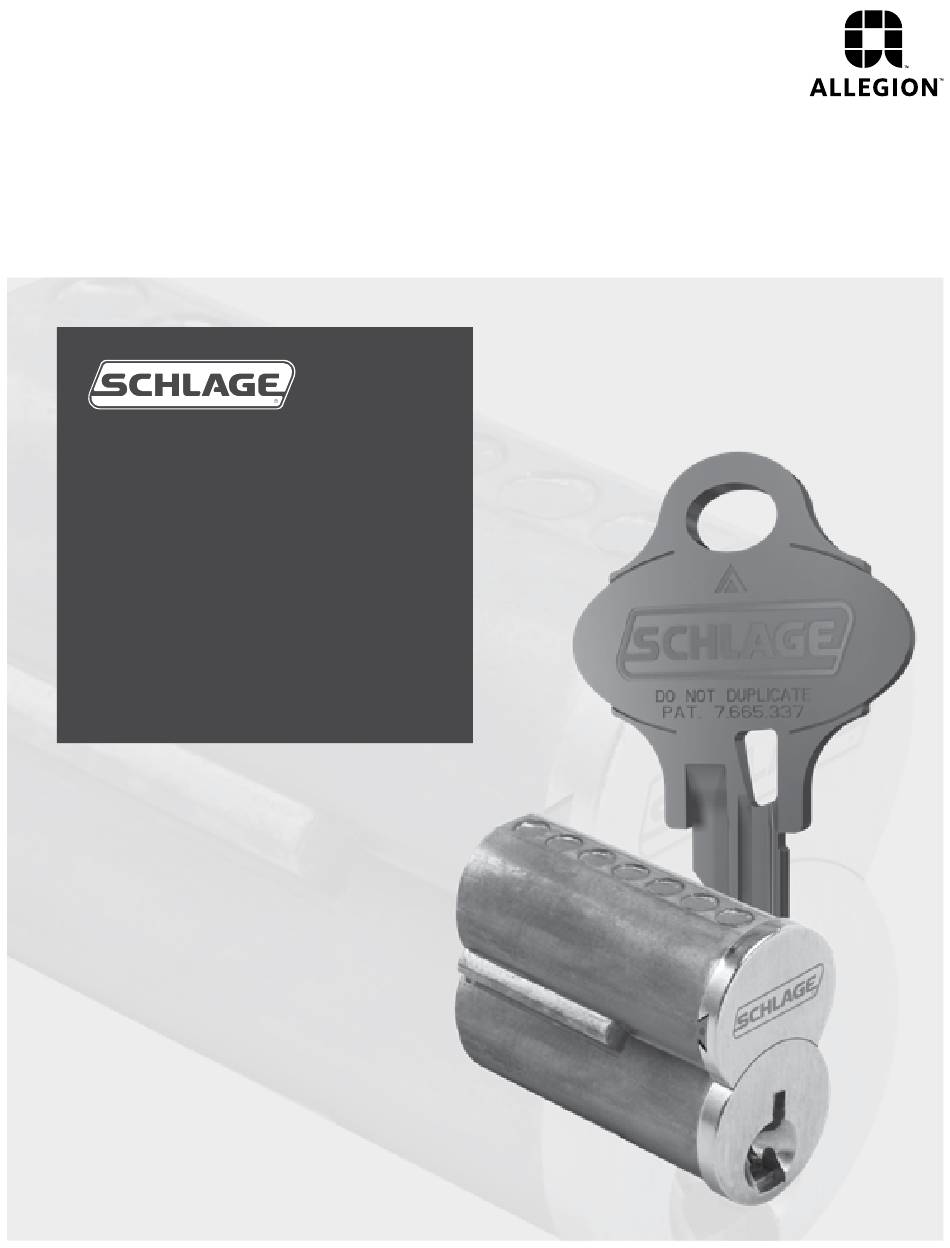

  • Page 1 Schlage small format cores Service manual...

  • Page 3: Table Of Contents

    Contents Everest 29 Patented Key Control Key Control Summary Non-Patented Cores Locksets Mortise and Rim Cylinders If You Are Familiar With Pinning Small Format Interchangeable Cores Schlage SFIC Keys If You Are Not Familiar With Pinning Small Format Interchangeable Cores...
  • Page 5 Schlage • SFIC service manual • 5...

  • Page 6: Everest 29 Patented Key Control

    Most Everest 29 R Family restricted keyways are for end users who do their own key cutting. The keyway is used for each job is registered to the end user by Schlage. Everest 29 restricted key blanks, cut keys and cores are furnished only...

  • Page 7: If You Are Familiar With Pinning Small Format Interchangeable Cores

    If you already own a different brand of specialized pin kit and tools for SFIC, you may use them for Schlage cores with the following exceptions and cautions: Do not use Arrow bottom pins because the bottom flat is smaller and may not seat properly on a zero cut when next to a 9.

  • Page 8: If You Are Not Familiar With Pinning Small Format Interchangeable Cores

    90 There are two shear lines in each chamber; one for the operating keys (change, master, grand master, etc.) and one for the control key. A build-up pin is used to span 8 • Schlage • SFIC service manual...
  • Page 9 Slide cap on at the top of each chamber. Pins fall into keyway Plug tur ned too far 1 Schlage uses FinLub TF from Interflon. Other lubricants can be used, however, performance can vary greatly depending on lubricant properties. Schlage • SFIC service manual • 9...

  • Page 10: Pin Combinating Example (Tip To Bow

    “units of stuff” loaded. 10 (= top pin) must be added 9 (= top pin) must be added 6 (= top pin) must be added to total 23 to total 23 to total 23 10 • Schlage • SFIC service manual...

  • Page 11: Troubleshooting

    .2375” Non-patented cores may be combinated to A3 or A4 system specifications, but these would be non-Schlage key systems *Not used in pure 2-step progression. and are not within the scope of this manual. Schlage • SFIC service manual • 11...

  • Page 12: Cutting Keys

    7 = .2312” 8 = .2187” 9 = .2062” 1.096" To cut Schlage keys on a rotary cutter code machine, it may be necessary to modify or replace the vise jaw for reliable .946" Code Card gripping. Contact your key machine manufacturer directly.

  • Page 13: Service Equipment

    Everest 29 patented keyway cores. 100/pack Bottom Pins Master, Build-up and Top Pins Key Machine for Everest 29 B Family Keys Only 34-902 34-800 40-071 34-903* 34-801...
  • Page 16 As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 7,800 people and sells products in more than 120 countries across the world. Allegion comprises 23 global brands, including strategic brands CISA , Interflex , LCN , Schlage and Von Duprin ® ® ® ®...
