BACK BOX INSTALLATION

IMPORTANT NOTES:
The JBL SYNTHESIS SCL-2 speaker requires a minimum 6-inch (152mm) wall depth.
The SCL-2 is a large, heavy loudspeaker. Installation will go more smoothly and safely with two people. We strongly
suggest enlisting the aid of a helper when installing this product.
The crossover with Molex connector is at one end of the back box. Be sure to orient the back box in the correct
orientation to achieve the desired horn alignment (horn up, down, left, right) and speaker orientation before cutting
existing drywall or installing the back box (Figure 13).
For vertical orientation mounting, the SCL-2 should be located between two wall studs.
If you need to cut through existing wall studs, make sure in advance that they are not load bearing studs.
8
1
2
3
6

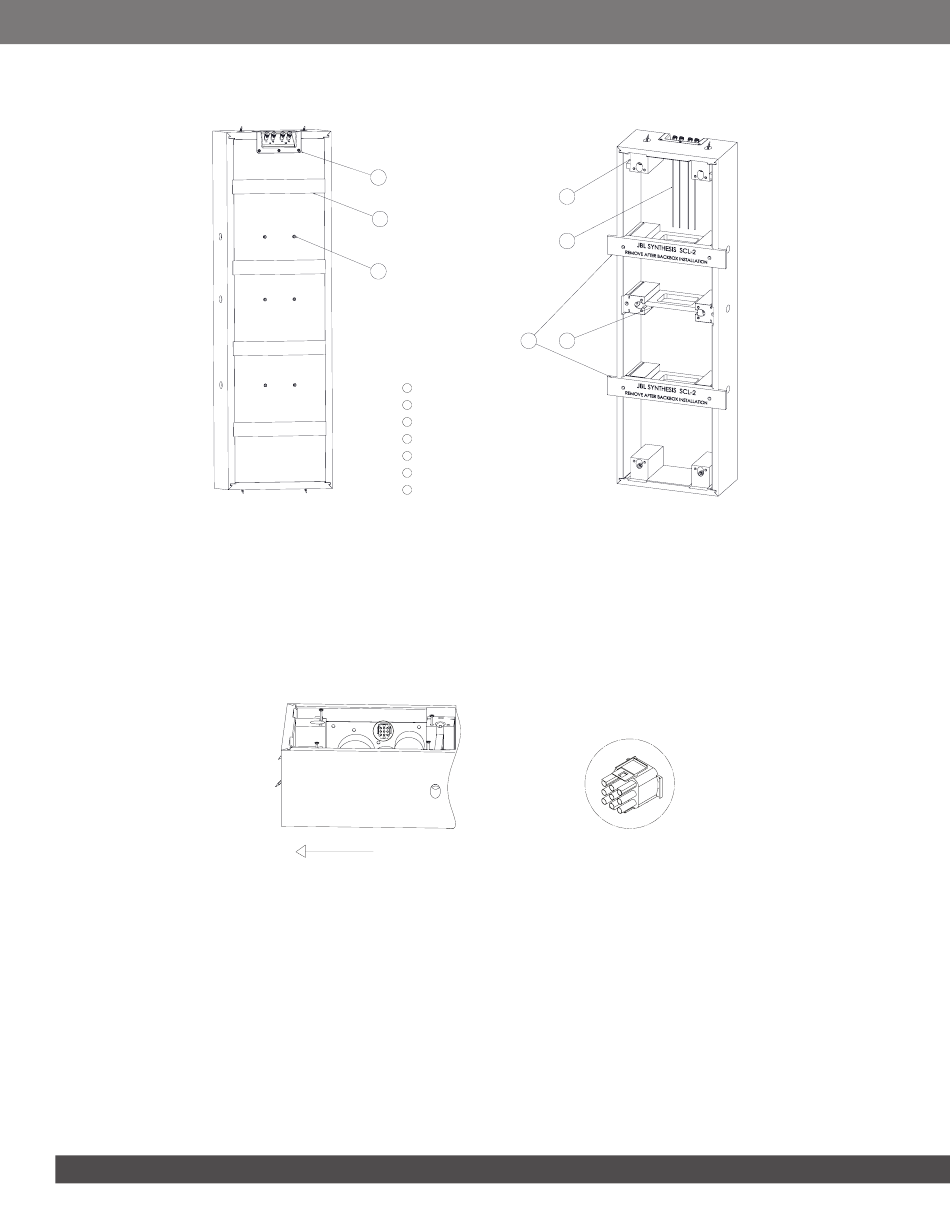

1 TERMINAL CUP
2 FOAM ANTI-VIBRATION PADS
3 BRACE SCREW - DO NOT TOUCH!
4 WOOD BLOCK FOR MOUNTING SCREWS
5 INPUT WIRES
6 MOUNTING BARS
7 CABINET BRACE
Figure 12
HORN
END
Figure 13
4
5
7
