Lumel SM5 User Manual

Module with 8 logic inputs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODULE
WITH 8 LOGIC
INPUTS
SM5 TYPE
USER'S MANUAL


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumel SM5

Summary of Contents for Lumel SM5

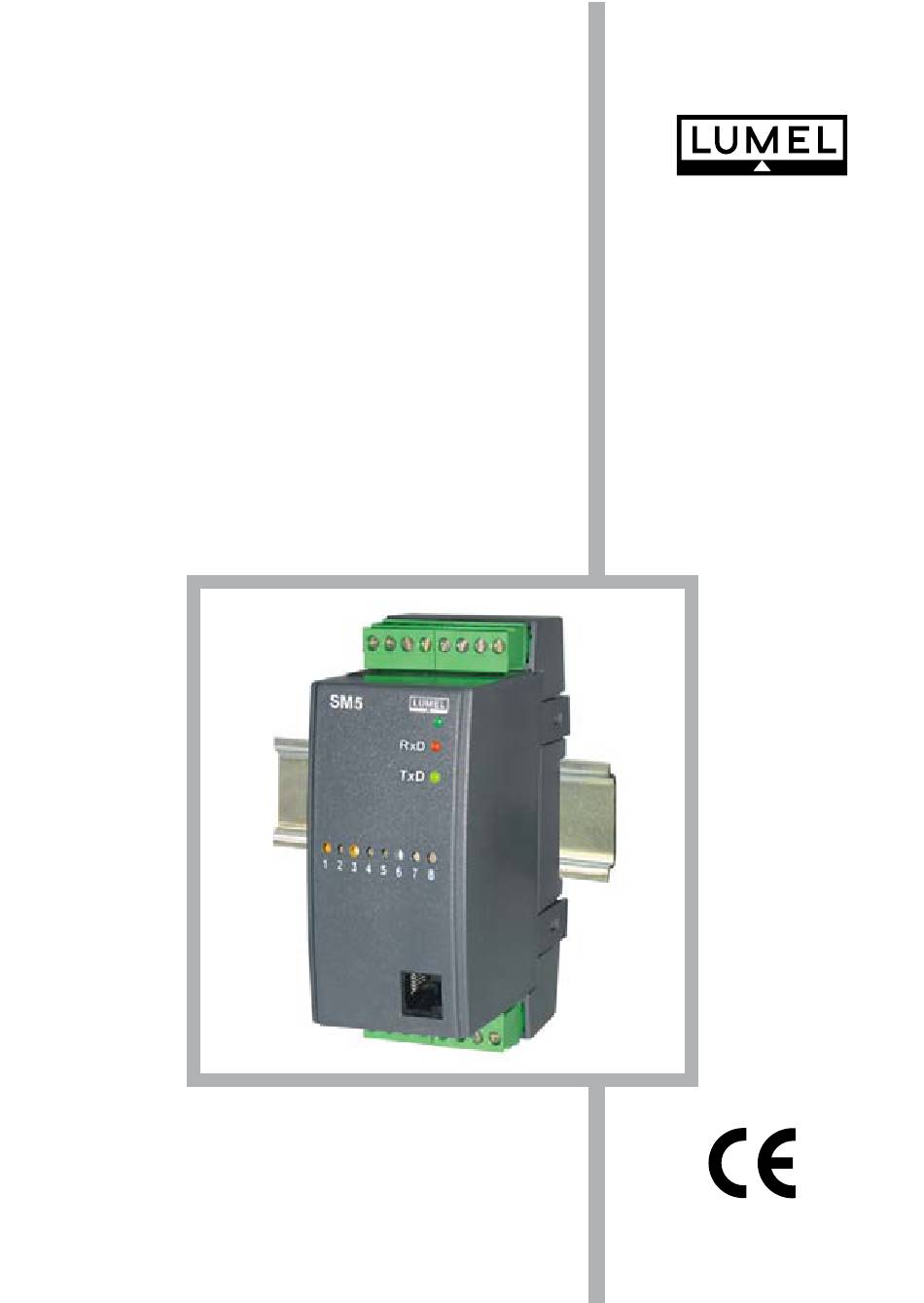

  • Page 1 MODULE WITH 8 LOGIC INPUTS SM5 TYPE USER’S MANUAL...

  • Page 3: Table Of Contents

    CONTENTS 1. APPLICATION ..................5 2. MODULE SET ..................5 3. BASIC REQUIREMENTS AND OPERATIONAL SAFETY ....6 4. INSTALLATION ................8 4.1. Module fixing ................8 4.2. Electrical connections ...............8 5. SERVICE ..................11 5.1 Description of the MODBUS protocol implementation ... 11 5.2 Description of the MODBUS protocol functions .....12 5.3.

  • Page 5: Application

    1. APPLICATION The SM5 module has 8 logic inputs and RS-485 and RS-232 interfaces with MODBUS RTU and ASCII transmission protocols. It is destined to readout logic states of logic inputs and enables their access in industrial systems. Ports in RS-485 and RS-232 are galvanically isolated from input signals and the supply.

  • Page 6: Basic Requirements And Operational Safety

    (EN 61010 -1 issued by CENELEC). Remarks concerning the operator safety: 1. General The SM5 module is destined to be installed in measuring systems,  on a 35 mm mounting rail Non-authorized removal of the required housing, inappropriate use, incorrect ...
  • Page 7  for the compliance with the required limit values demanded by the EMC legislation. 5. Operation Measuring systems including SM5 modules must be equipped with protection  devices according to the corresponding standard and regulations for prevention of accidents. After the instrument has been disconnected from the supply voltage, live ...

  • Page 8: Installation

    4. INSTALLATION 4.1 Module fixing The SM5 module is fixed on a 35 mm rail in accordance with EN 60715. The module housing is made of a self-extinguishing plastic. Overall dimensions of the housing: 45 x 120 x 98 mm.
  • Page 9 Regarding electromagnetic interference one must use shielded wires to connect binary input signals and RS-485 interface signals. The shield must be connected to the protective terminal in one point. Fig 2. Electrical connections of SM5 logic input module There are three diodes on the frontal plate: green - signals switching the supply on ...
  • Page 10 To obtain the communication with the computer of PC class throught the RS-485 port, it is essential to apply an RS-232/RS-485 converter (e.g. PD51 from Lumel production) or an RS-485 interface card. Marking of transmission lines for the card in the PC computer depends on the card producer.

  • Page 11: Service

    Fig. 4 Way of the RS-232 interface connection. 5. SERVICE After connecting external signals and switching the supply on, the SM5 module is ready to work. The lighted green diode signals the module work. The green diode (RxD) signals the module polling, however the yellow diode (TxD) signals the module response.

  • Page 12: Description Of The Modbus Protocol Functions

    „0” is identified as the data  transmission mode (transmission to many devices). 5.2. Description of the MODBUS protocol function Following functions of the MODBUS protocol have been implemented in the SM5 module. Description of MODBUS protocol functions Table 2...
  • Page 13 Answer: Device Number Value from the register Checksum Function address of bytes 2200 - 2207 6048 Readout of n-registers (code 03h) The function is not accessible in the broadcast mode. Example: Readout of 2 registers with 1DBDh (7613) address: Request: Register Register Number of...
  • Page 14 Write of values in the register (code 06h) The function is accessible in broadcast mode. Example: Write of the register with 1DBDh (7613) address Request: Register Register Checksum Value from the register Device Function address address 1DBD (7613) address 85 AD Answer: Register Register...

  • Page 15: Map Of Module Registers

    Example: The work in RTU mode, e.g.: Mode = RTU 8N2 (value 0x02 in case of readout/write through the interface). Device address set on Adr=0x01, For the SM5 module, the response frame has the following shape: Device Checksum Number Device...

  • Page 16: Set Of Module Registers

    5.4. Set of module registers Set of registers for readout the SM5 module Table 3 Quantity name Name Identifier Constant identifying the device 4000 7500 – Status  is a register describing Status 1 4001 7501 – current states of binary inputs.
  • Page 17 Bit-15...8 not used State 0 Bit- 0 State of IN 1 input 0 - open 1 - shorting Bit- 1 State of IN 2 input 0 - open 1 - shorting Bit- 2 State of IN 3 input 0 - open 1 - shorting Bit- 3 State of IN 4 input 0 - open...
  • Page 18 Description of the Status 2 register Operating Baud rate mode and in- formation unit bits Bit-15...6 Not used Their States are free Bit-5...3 Operating mode and information unit 000 - interface switched off 001 - 8N1 - ASCII 010 - 7E1 - ASCII 011 - 7O1 - ASCII 100 - 8N2 - RTU 101 - 8E1 - RTU...
  • Page 19 Set of registers for SM5 module readout and write Table 4 Symbol Range Description Identifier Device identifier 4200 7600 Baud rate of the RS-485 Rate 4201 7601 0... 6 interface (bit/s) Value 2400 4800 9600 19200 38400 57600 115200 Kind of transmission via the RS-485...

  • Page 20: Technical Data

    6. TECHNICAL DATA Logic levels 1 logic: shorted input 0 logic: open input shorting resistance of the contact without potential  10 k opening resistance of the contact without potential  150 k Transmission data: a) RS-485 interface: - transmission protocol MODBUS - ASCII: 8N1, 7E1, 7O1...

  • Page 21: Before A Damage Will Be Declared

    Dimensions 45 x 120 x 100 mm Weight < 0.25 kg SM5 housing adapted to be mounted on a 35 mm rail acc. to EN 60715 Electromagnetic compatibility: - Immunity acc. to EN 61000-6-2 - emission acc. to EN 61000-6-4 Safety requirements acc.to EN 61010-1:...

  • Page 22: Ordering Codes

    8. ORDERING CODES Table 5 Module of 8 binary inputs - SM5 X XX X Supply voltage: 85...230...253 V a.c./d.c............1 20...24...50 V a.c./d.c............2 on order * ................X Kind of version: catalogue ..................00 custom -made * ................. XX Acceptance tests: without extra requirements ..............8...

  • Page 23: Maintenance And Guarantee

    9. MAINTENANCE AND GUARANTEE The SM5 module does not require any periodical maintenance. In case of some incorrect operations: 1. After the dispatch date and within the period stated in the guarantee card One should return the instrument to the Manufacturer’s Quality Inspection Dept. If the module has been used in compliance with the instructions, the Manufacturer guarantees to repair it free of charge.
  • Page 28 According to ISO 9001 and ISO 14001 international requirements. All our instruments have CE mark . For more information, please write to or phone our Export Department Lubuskie Zak³ady Aparatów Elektrycznych LUMEL S.A. ul. Sulechowska 1, 65-022 Zielona Góra, Poland Tel.: (48-68) 329 51 00 (exchange) Fax: (48-68) 329 51 01 e-mail: lumel@lumel.com.pl...
