Summary of Contents for Novy 6830/16

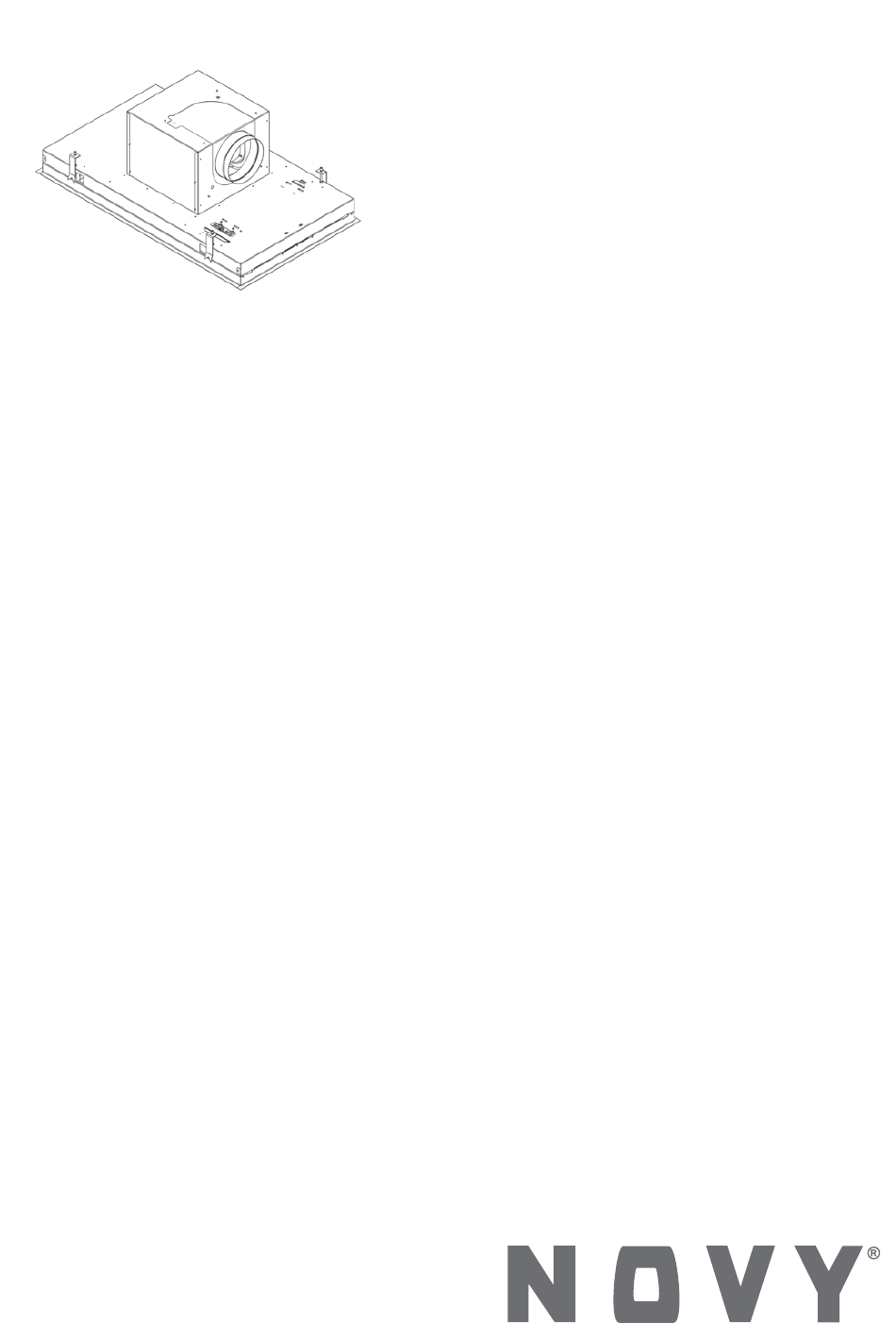

- Page 1 Installatievoorschriften p. 4 Instructions d’installation p. 8 Montageanleitung p. 11 Operating and installation Instructions p. 15 6830/16 - 6831/16 6840/16 - 6841/16...
- Page 2 12 x 906116...
- Page 4 GENERAL INFORMATION General These are the mounting instructions for the Novy unit shown on the cover. The user manual is delivered separately with this unit. Carefully read these instructions before installing and commissioning this unit. It is recommended to have one or more qualified persons carry out the installation.
- Page 5 Changing the exhaust direction of the motor (if desired). Sideways: - Open the bottom plate and remove the filters from the ceiling unit. - Disconnect the cord that connects the motor to the ceiling unit. - Loosen the 8 screws located next to the protective grid. - Turn the motor with the exhaust into the desired position and screw the motor back on using the 8 screws.
- Page 6 The advantage is the low build-in height (article number 6830052). Recirculation If you choose for recirculation, Novy offers the exhaust box in different sizes, including type 830400 (stainless steel ex- haust grid), type 831400 (white exhaust grid), type 7900400 (stainless steel exhaust grid) or type 7910400 (stainless steel exhaust grid).
- Page 7 NOVY nv behoudt zich het recht voor te allen tijde en zonder voorbehoud de constructie en de prijzen van haar producten te wijzigen. NOVY SA se réserve le droit de modifier en tout temps et sans préavis la construction et les prix de ses produits.
