CHAPTER ONE
Connecting The Set Top Box

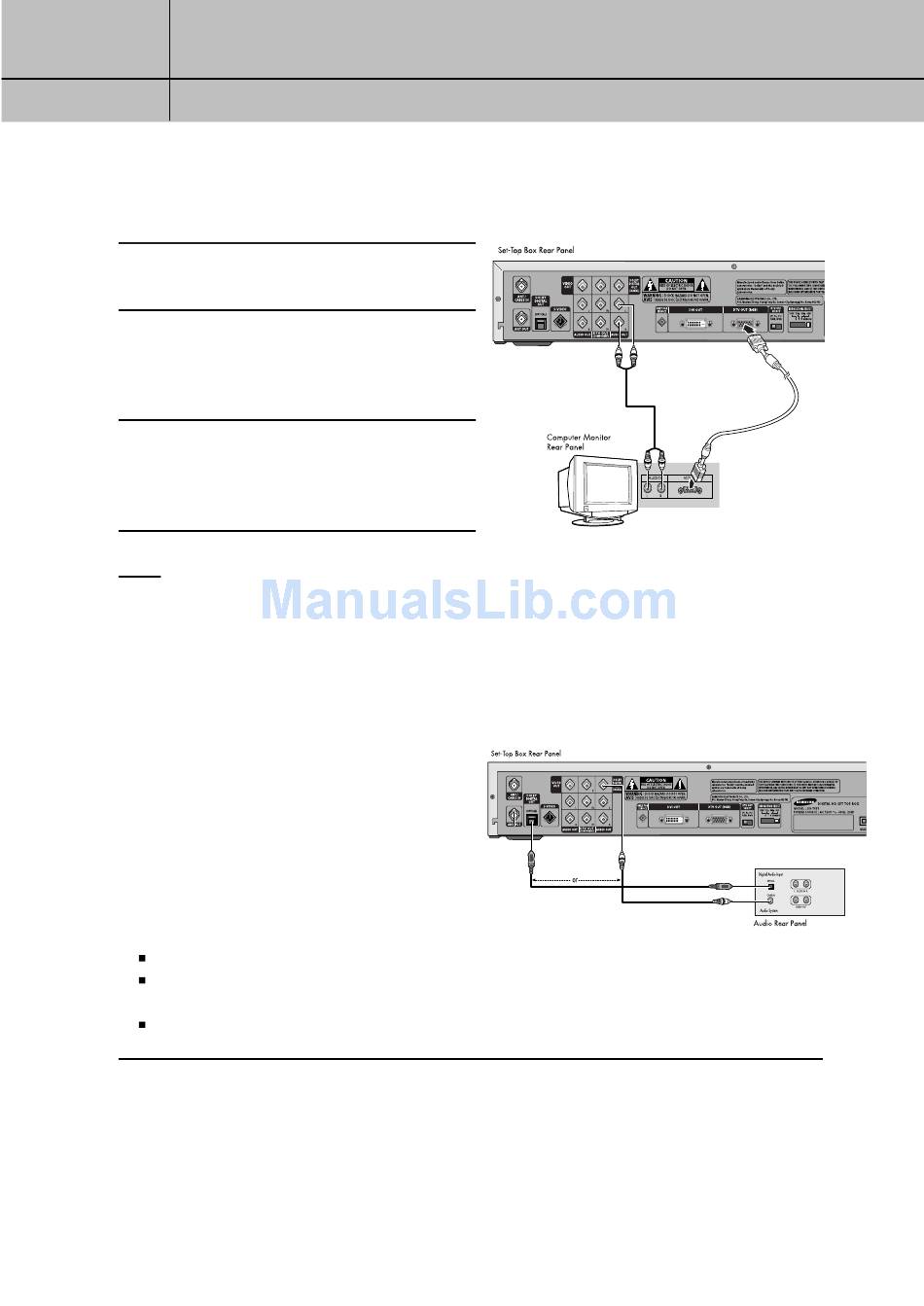

Connecting the Set-Top Box to a Computer Monitor

Connect an antenna cable to the ANT/CABLE
1
IN jacks on the Set-Top Box.
Connect a computer video monitor cable
2
between the DTV OUT (RGB) jack
on the Set-Top Box and the VIDEO IN jack on
the computer monitor.
Connect an audio cable between the
3
Lt/Rt AUDIO OUT jacks on the Set-Top
Box and the L/R AUDIO IN jacks on the
computer monitor.
NOTE
You must set "DTV OUT SELECT (Y , P

Connecting an Audio Component

There are many types of audio systems on the
market today.
A simplified illustration of an audio system is
shown to the right. For more information, see
your audio system owner's manual.
If your audio system has :
A coaxial digital audio input, connect the audio system to the DOLBY DIGITAL OUT (COAXIAL) jack on the Set-Top Box.
An optical digital audio input, connect the audio system to the DOLBY DIGITAL OUT (OPTICAL) jack on the Set-Top Box.
Be certain to remove the black cover from the optical output before inserting the cable.
Both coaxial and optical digital audio inputs, SAMSUNG recommends you use the optical digital output.
Do not connect both optical and coaxial cables. This may damage your audio system.
, P /RGB,DVI)" for RGB interface.
b r
17
