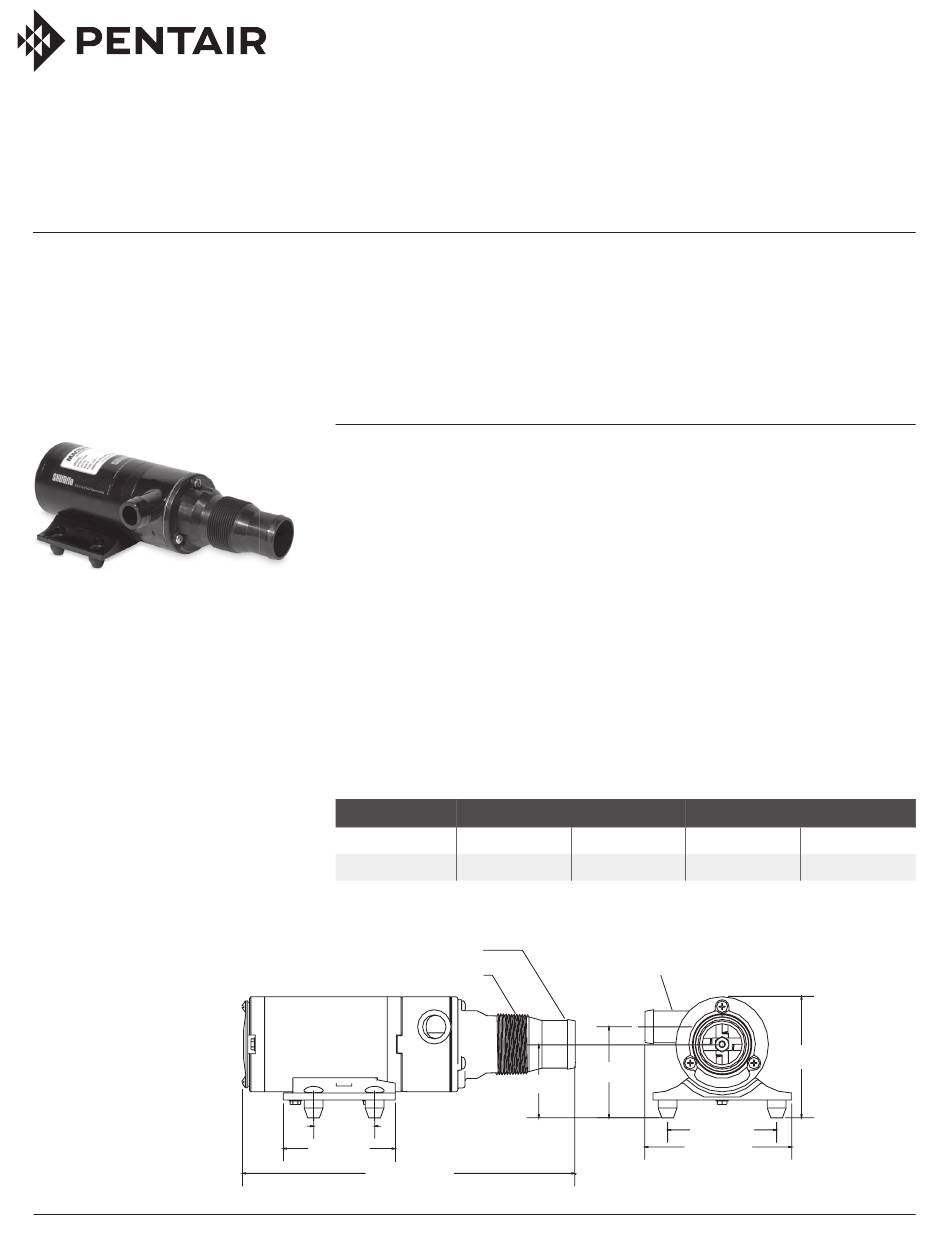

SHURFLO

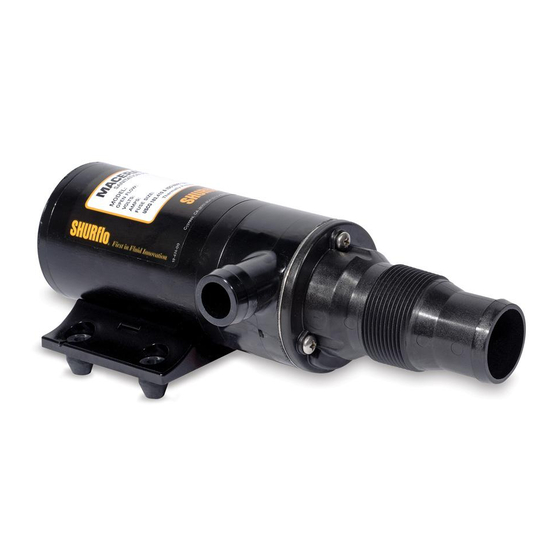

3200 MACERATOR PUMP
®
INSTALLATION, OPERATION & REPAIR MANUAL
SHURFLO's macerator pump is designed to empty marine and RV holding tanks of normal waste. It is also an excellent choice
for emptying fi sh boxes of scales and residual waste. A fl ow rate of up to 13 gallons per minute conveniently empties any tank
in minutes. The unique dual-cut blade design ensures waste is ground up thoroughly. The pump is self-priming to a fi ve foot lift
when impeller is wet, four foot lift when impeller is dry, but for optimum performance and life, it should be mounted as close to
the tank as possible. Marine pump out must be in proper discharge zones only. This macerator will not handle hard objects, rags,
or feminine napkins.
911-566 REV. P

PRODUCT SPECIFICATIONS

Motor:
Seamless can motor, 1/8 hp Thermally protected
Lead Wires:
14 GA
Fuse:
See motor label for fuse size
Pump Type:
Flexible Impeller
Duty Cycle:
Intermittent duty only
Ports:
Inlet: 1-1/2" hose barb &
Outlet: 1" hose barb
Impeller:
Brandonite
Blade:
316 stainless "Double-cut"
Dimensions:
See drawing
Weight:
5 lbs.
Approvals:
Ignition protected, ISO 8846, CE, and CSA, models available
Typical Flow:
Dependent on fl uid viscosity (Chart below based on water)
HEAD
Ft. [m]
0 [0]
Max. Operating Head = 30 feet
1-1/2" Hose Barb
1-1/2" NPT Male
2.0 [50.0]
3.6 [91.9]
10.8 [273.3]
1-1/2" NPT Male
®
FLOW GPM [LPM]
12 V
24 V
13 [49]
13 [49]
1" Hose Barb
2.9 [72.9]
2.3 [58.4]
MAX. DC AMPS
12 V
24 V
17
9
3.8 [97.3]
3.5 [89.7]
4.8 [120.9]
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHURFLO 3200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pentair SHURFLO 3200

  • Page 1 SHURFLO 3200 MACERATOR PUMP ® INSTALLATION, OPERATION & REPAIR MANUAL SHURFLO’s macerator pump is designed to empty marine and RV holding tanks of normal waste. It is also an excellent choice for emptying fi sh boxes of scales and residual waste. A fl ow rate of up to 13 gallons per minute conveniently empties any tank in minutes.
  • Page 2 ELECTRICAL CONNECTIONS WARNING: If the pump is operated in an ELECTRICAL INSTALLATION CHECKLIST 12 Volt System Min. Wire Size (20 Amps) area containing flammable vapors, the √ Separate circuit from power source wire leads must be joined by insulated Total Wire Length* 3% Drop 10% Drop √...
  • Page 3 MAINTENANCE PARTS & KITS LIST TURN OFF ALL POWER! Item Description Qty. REAR END CAP/ MOTOR SHAFT SLOT ACCESS Cover Screw Loosen end cap screws (17). Rotate shaft cover (16) to access slot on motor shaft. Cutter Housing PUMP DISASSEMBLY O-Ring Remove 3 cover screws (1).
  • Page 4 3545 HARBOR GATEWAY SOUTH, SUITE 103, COSTA MESA, CA 92626, (800) 854-3218 WWW.SHURFLO.COM All Pentair trademarks and logos are owned by Pentair, Inc. All other brand or product names are trademarks or registered marks of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
