MOUNTING THE LIMIT SWITCH IN AN EXISTING EQUIPMENT

When the AMD limit switch is to be fitted to an existing device, please follow these steps.
8.1

Kit contents

The kit contains the following elements:
Quantity
1
2
1
1
2
2
2
In the kits, the O-rings (5) and the blanking plugs (7) are not provided as loose parts. They are
incorporated in the cable glands (6).
8.2

Preparing the kit

Remove the cover, unscrewing the four screws "Allen" M5 and plastic washers, in the back
side of the indicator housing, using a 4 mm Allen key.

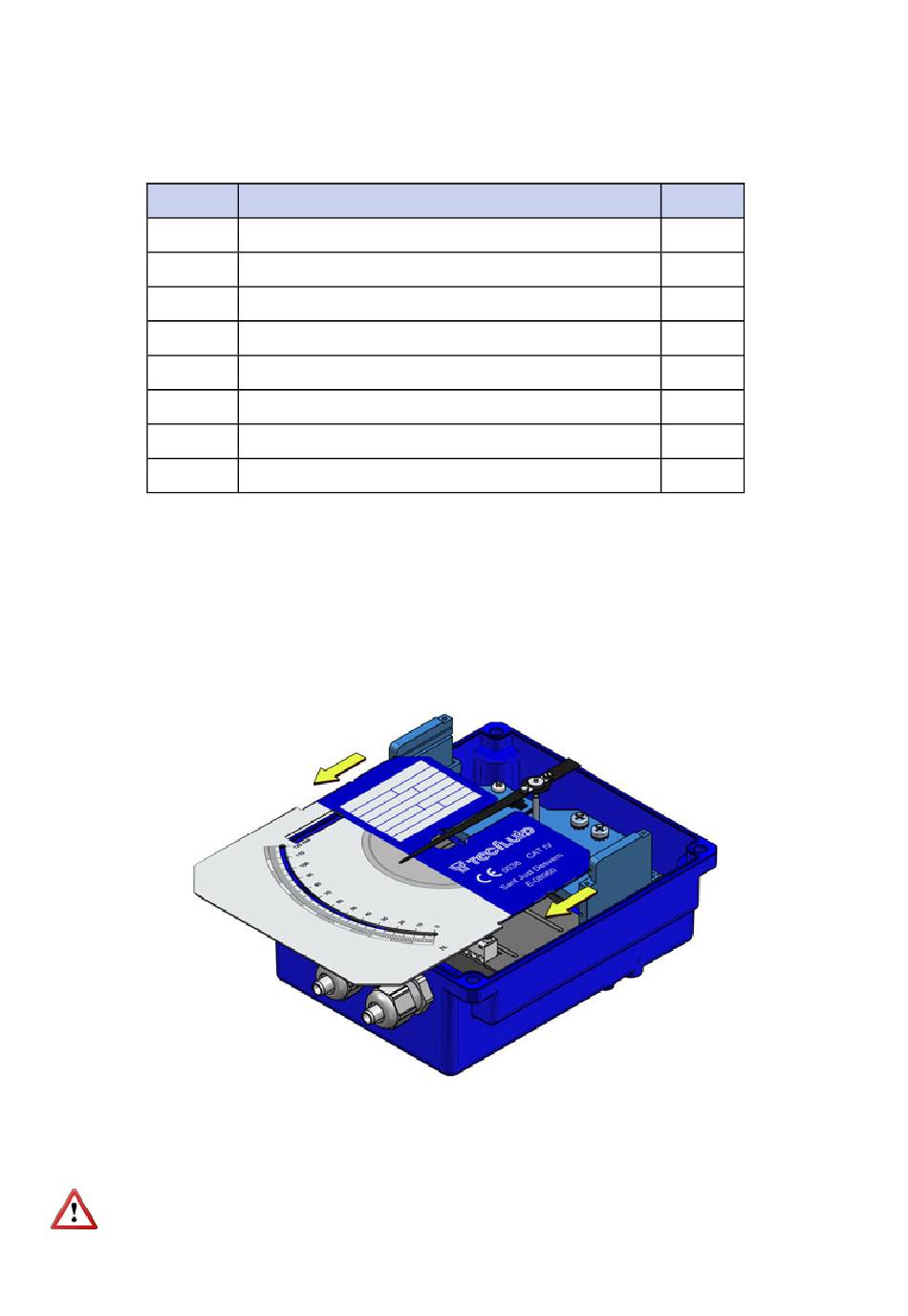

Slide the scale plate in the direction indicated in the figure, until it is released from the slot.
Ensure that the O-rings (5) are placed in the thread of the gland (6). If not, they should be
placed. Remove the plugs from the indicator box with a flat screwdriver and replace them by
the two cable glands.
The cable glands that are not expected to be used should be left with the blanking plug (7)
placed to preserve watertight.
AMD limit switch circuit
Self tapping screw DIN7982 B-2,2 x 9,5 Nº2 A2
Screw DIN7985 M3 x 6 A2
External tooth lock M3 A4
O-ring Ø 16 x 18,5 x 1,25 mm NBR-70
Cable gland IP68
Cable gland blanking plug
AMD kit
Material
14
Position
1
2
3
4
5
6
7
