GE Profile PP9036DJ Dimensions And Installation Information

PP9036DJ
GE Profile Series 36" Built-In Touch Control Cooktop
™

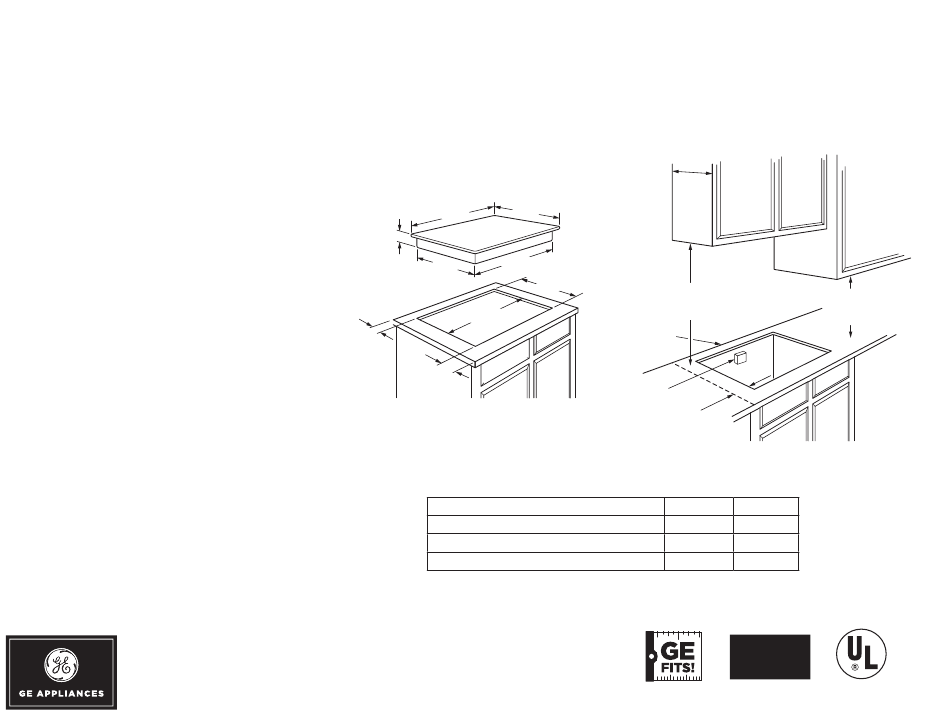

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires
a 15" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with a
48" flexible armored cable.
NOTE: 36" Ribbon cooktops are approved for
use over select GE 30" Single Wall Ovens and
Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic
Downdraft System, consult both the cooktop
and downdraft installation instructions packed
with product before installing. Cooktop gas/
electric supply may need to be re-routed to
install downdraft. The countertop cutout
requires 23-1/2" minimum flat countertop
surface and 25" minimum total countertop
depth. In addition, other clearances to front
edge of the countertop must be considered.
Before installing, consult installation
instructions packed with product for
current dimensional data.
For answers to your Monogram, GE Café
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center
APPROXIMATE COOKING DIMENSIONS
36"
3-1/4" at front of unit and
Cooktop
5-9/16" at conduit location
18-7/8"
33-7/8"
1-3/4" MIN.
to 34"
to rear wall
2-1/2" MIN.
Required
To insure accuracy, it is best to make a
template when cutting the opening in the counter
VOLTAGE (60HZ AC)
CONNECTED LOAD (MAX.)
CURRENT DRAW (MAX.)
RECOMMENDED CIRCUIT BREAKER
NOTE: Check local codes for required breaker size.
†
™ Series, GE Profile ™ Series or
® Service, 800.626.2000.
CP9536SJ, PP9036DJ,
PP7036DJ, JP5036DJ
13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)
20-3/8"
33-3/4"
19-1/8" to
19-1/4"
30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)
See label next
to nameplate for
MIN. clearance
to wall
Electrical junction box 16" MIN.
below countertop
2" MIN. clearance
to side wall from cut-out
on both sides of cooktop
240V
9.6kW
40.0 Amps
† 40 Amps
15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop
208V
7.2kW
34.7 Amps
40 Amps
Listed by
ADA
Underwriters
Laboratories
COMPLIANT
Specification Revised 6/16
