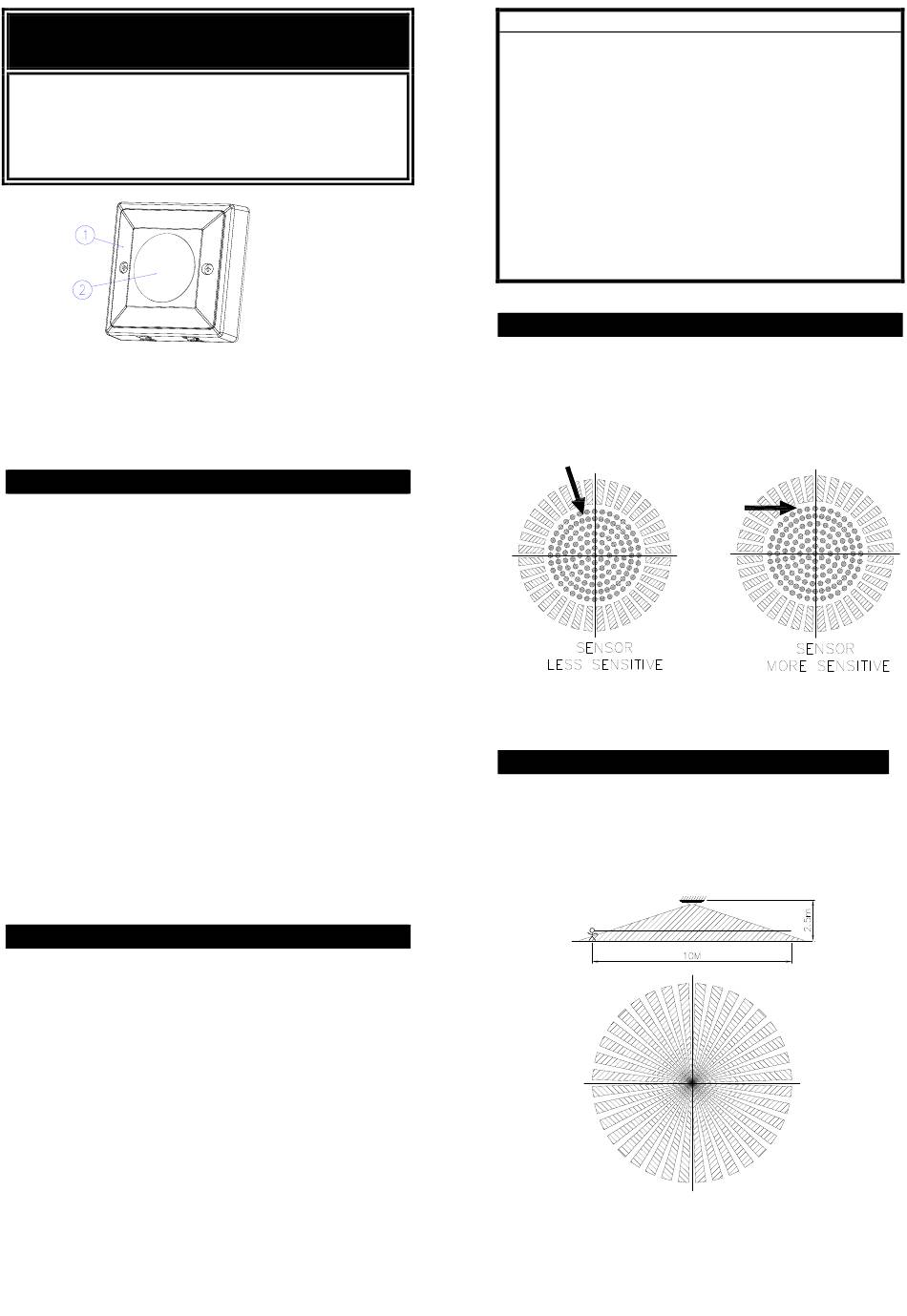

Titan TOCS01 Manual

TOCS01
SURFACE MOUNT 360°
MICROSENSITIVE
OCCUPANCY DETECTOR
 Main Body
 Lens
INTRODUCTION
The use of occupancy detectors in commercial and
industrial applications can significantly reduce energy
usage reducing both energy costs and helping the
environment.
The TOCS01 360
surface mount OCCUPANCY DETECTOR uses
passive infrared sensors (PIR) which react to changes
in temperature emitted by the slight motion of persons
or objects passing through its detection area. The PIR
sensor automatically operates the connected load
when an area is occupied. After a preset time on
non-activation (when an area is vacated) the load will
be switched off. In addition the built in photocell takes
natural light (daylight) into account when determining
its activation.
Note : Read this entire manual before you start to
install the system.
SAFETY PRECAUTIONS
 Do not install when it may be possible for water
to access the fitting.

Be sure to switch off power source before
installing.

Make sure that the power wiring comes from
circuit with an external miniature circuit breaker
not higher than 16A for the short circuit protection
or a suitable fuse.
degrees MICROSENSITIVE
IMPORTANT
Some local building codes may require installation
of this product by a qualified electrician.
Check your local codes as they apply to your
situation. If the house wiring is of aluminum,
consult with an electrician about proper wiring
methods.
Before proceeding with the installation, TURN OFF
THE POWER TO THE LIGHTING CIRCUIT AT
THE CIRCUIT BREAKER OR FUSE BOX TO
AVOID ELECTRICAL SHOCK.
CHOOSING A MOUNTING LOCATION

Avoid aiming the motion sensor at heating vents,
air conditioners or objects which may change
temperature rapidly.

Do not allow sunlight to fall directly on the front of
unit.
INSTALLATION
The unit has a sensing angle of 360°. It detects micro
movement within a 7m diameter (sitting zone) and can
detect general movement up to 10m diameter at a
mounting height of 2.5 meters. (FIGURE 2)
.
1
FIGURE 1
FIGURE 2
