TITAN WIRELESS PIR DETECTOR
j Front Cover
k PIR Motion Sensor
l Time-off Knob
The PIR Detector is designed to detect movement in a protected area by detecting
moving heat sources, for example, when a person moves within or across the
devices field of vision. When movement is detected a radio signal will be emitted to
the Receiver(s).

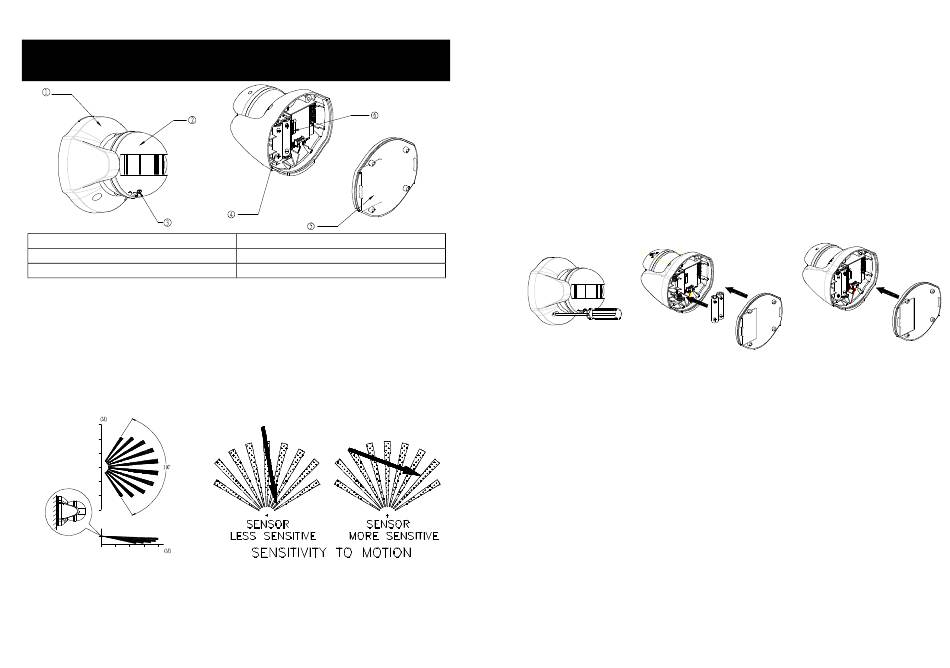

The recommended position for mounting the PIR Detector is approximately 1.8 to
2m from the floor. At this height, the detector will detect movement up to 8-12m
depending on adjustment. (FIGURE 1a). Before selecting a position for a PIR
Detector the following points should be noted:
9
6
3
0
3
6
9
2.0
0
3
6
9
12
FIGURE 1a
m Battery
n Rear Cover
o Tamper Switch
FIGURE 1b
1. Do not position the detector facing direct sunlight.
2. Do not position the detector directly above or facing any source of heat, eg: fires,
radiators, boiler etc.
3. Where possible, mount the detector so that the logical path of an intruder would
cut across the fan pattern rather than directly towards the detector.(FIGURE 1b)
4. The PIR Detector can be used with all TRS receivers providing they are all
coded with the same code.
LOADING THE BATTERY

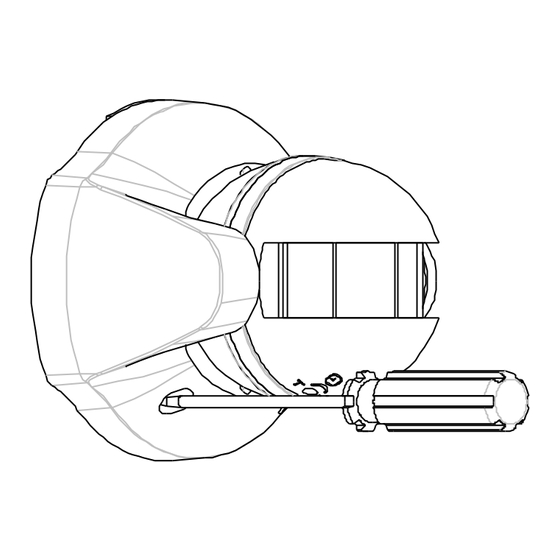

1. Using a Phillips screwdrivers to detach the rear cover. (FIGURE 2a)
2. Insert 2 AAA-size 1.5V batteries to the battery compartment, ensuring correct
polarity. (FIGURE 2b)
3. Refit the rear cover. (FIGURE 2c) when any settings are completed and the unit
has been fixed in place.
FIGURE 2a
SETTING
1. The units ID code is fixed ex-factory and cannot be adjusted.
2. Emitting the ID code
Step 1: After inserting the batteries to the PIR Detector, it will have a 60-second
warm up period before emitting the ID code.
Step 2: Set the Receiver to code learning mode. (refer to Receiver's instruction
manual).
Step 3: Pressing the tamper switch for more than 3 seconds will emit the ID
code to the Receiver.
Step 4: If the Receiver responds with a long bleep, the code learning is
successful. If not, please repeat Step 2.
Step 5: If consecutive short bleeps have been heard from the Receiver, the
code learning has failed.
Step 6: Start again from Step 1 to re-try.
1
FIGURE 2b
FIGURE 2c
