POLA HP17 Handbook

INSTALLATION

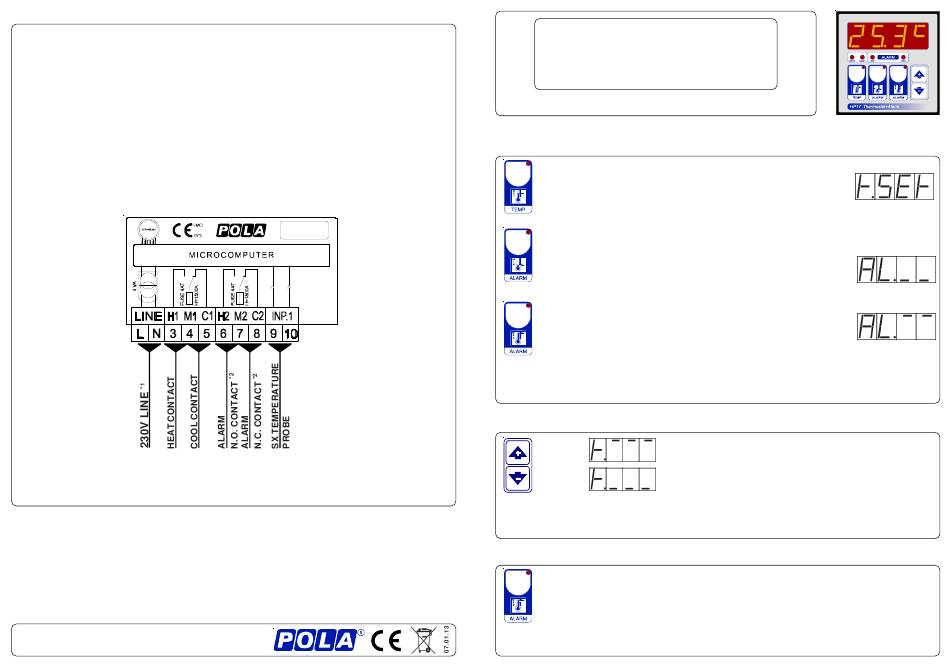

How to connect the sensors

Connect the sensor provided as shown in the diagram. For remote connections
use a standard 0.5-square millimeter two-pole wire, taking great care over the
connections, by insulating and sealing the joins carefully. -O.C.- is displayed when the
temperature sensor wiring is open, -S.C.- is displayed when the temperature sensor
wiring is short circuit.

How to connect the line

Connect 230V line on terminals L-N.
Protect supply with adequate fuse.

How to connect the contacts

Connect terminals on the terminal block (contacts up to 4AMP.AC1).
*1
Other power voltage
if you required.
*2
Alarm relay de excited or excited in normal condition referring to Cost, function rY.AL.
As it company policy to continually improve the products the Manufacturers
reserve the right to make any modifications thereto without prior notice. They
cannot be held liable for any damage due to malfunction.
HP17
HP17
SL 3.1
Thermostat with alarm
Handbook

MAIN SETTING (Run Mode)

TEMPERATURE SETTING

Press TEMP (key lamp flashes): this message will be displayed
instead of the ° Set temperature value .
Press + or - to modify, press SET to escape.

MINIMUM ALARM TEMPERATURE

Press MIN ALARM (key lamp flashes): this message will be
displayed instead of the ° Set Minimum temperature value .
Press + or - to modify (*), press ALARM MIN to escape.
TEMPERATURE SETTING
Press MAX ALARM (key lamp flashes): this message will be
displayed instead of the ° Set Maximum temperature value .
Press + or - to modify (*), press ALARM MAX to escape.
* If option o.ALA=1 (see COSt) the c.AL_ or c.AL- message appears on display.
If option o.ALA=2 (see COSt) the r.AL_ or r.AL- message appears on display.

VIEWING TEMPERATURE RECORDING

Press + : will be displayed followed by
°Maximum Temperature Recording.
Press - : will be displayed followed by
°Minimum Temperature Recording.
Values recorder are memory permanent stored: for memory clear keep pushed + keys
for more than 3 seconds: CLEA message will be composed on display before clearing
operation.

PRESET PROGRAMS (Bootstrap)

At delivery this processor is programmed with the following (variable) settings.
To return to these settings at any time.
Power off the processor, press ALARM MAX key and keep it pressed giving
power on: release ALARM MAX key when on the screen boot message
appears. t.SEt = 25.0° AL _ _ = 10.0° AL - - = 30.0°
The COSt values are shown in COSt Programming.
