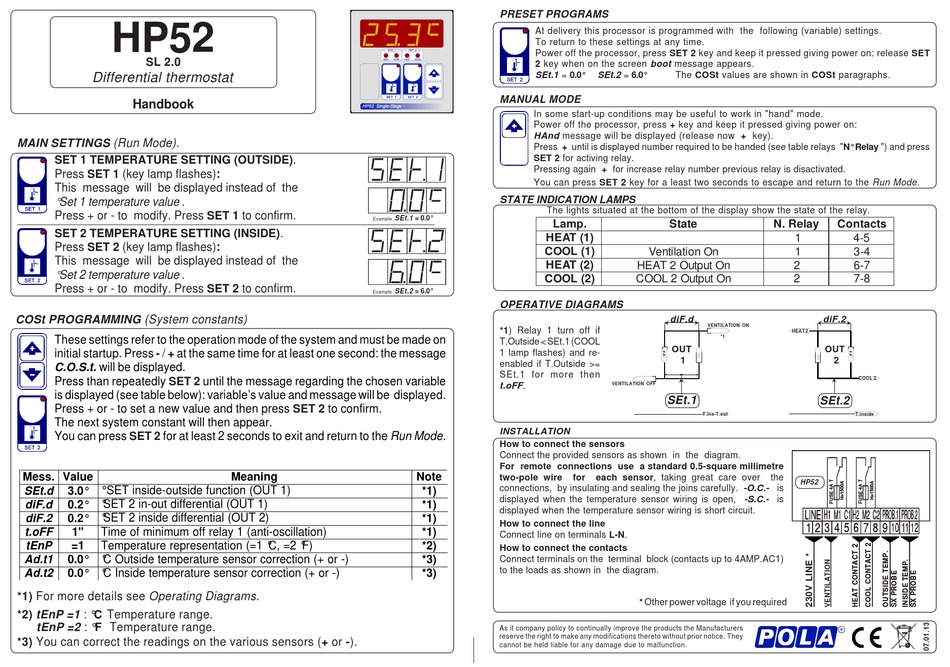

POLA HP52 Handbook

HP52
SL 2.0
Differential thermostat
Handbook
MAIN SETTINGS (Run Mode).
SET 1 TEMPERATURE SETTING (OUTSIDE).
Press SET 1 (key lamp flashes):
This message will be displayed instead of the
°Set 1 temperature value .
Press + or - to modify. Press SET 1 to confirm.
SET 2 TEMPERATURE SETTING (INSIDE).
Press SET 2 (key lamp flashes):
This message will be displayed instead of the
°Set 2 temperature value .
Press + or - to modify. Press SET 2 to confirm.
COSt PROGRAMMING (System constants)
These settings refer to the operation mode of the system and must be made on
initial startup. Press - / + at the same time for at least one second: the message
C.O.S.t. will be displayed.
Press than repeatedly SET 2
is displayed (see table below): variable's value and message will be displayed.
Press + or - to set a new value and then press
The next system constant will then appear.
You can press SET 2 for at least 2 seconds to exit and return to the Run Mode.
Mess. Value
° SET inside-outside function (OUT 1)
SEt.d 3.0°
° SET 2 in-out differential (OUT 1)
diF.d 0.2°
diF.2 0.2° ° SET 2 inside differential (OUT 2)
t.oFF 1" Time of minimum off relay 1 (anti-oscillation)
tEnP =1 Temperature representation (=1 ° C, =2 ° F)
Ad.t1 0.0° ° C Outside temperature sensor correction (+ or -)
° C Inside temperature sensor correction (+ or -)
Ad.t2 0.0°
*1) For more details see Operating Diagrams.
*2) tEnP =1 : °C Temperature range.
tEnP =2 : °F Temperature range.
*3) You can correct the readings on the various sensors (+ or -).
Example
Example
until the message regarding the chosen variable
SET 2 to confirm.
Meaning
PRESET PROGRAMS
At delivery this processor is programmed with the following (variable) settings.
To return to these settings at any time.
Power off the processor, press SET 2 key and keep it pressed giving power on: release SET
2 key when on the screen boot message appears.
SEt.1 = 0.0°
MANUAL MODE
In some start-up conditions may be useful to work in "hand" mode.
Power off the processor, press + key and keep it pressed giving power on:
HAnd message will be displayed (release now + key).
Press + until is displayed number required to be handed (see table relays "N° Relay ") and press
SET 2 for activing relay.
Pressing again + for increase relay number previous relay is disactivated.
You can press SET 2 key for a least two seconds to escape and return to the Run Mode.
STATE INDICATION LAMPS
The lights situated at the bottom of the display show the state of the relay.
SEt.1 = 0.0°
L a m
H E A T
C O O L
H E A T
C O O L
SEt.2 = 6.0°
OPERATIVE DIAGRAMS
*1) Relay 1 turn off if
T.Outside < SEt.1 (COOL
1 lamp flashes) and re-
enabled if T.Outside >=
SEt.1 for more then
t.oFF.
INSTALLATION
How to connect the sensors
Connect the provided sensors as shown in the diagram.
For remote connections use a standard 0.5-square millimetre
Note
two-pole wire for
connections, by insulating and sealing the joins carefully. -O.C.- is
*1)
displayed when the temperature sensor wiring is open, -S.C.- is
*1)
displayed when the temperature sensor wiring is short circuit.
*1)
How to connect the line
*1)
Connect line on terminals L-N.
*2)
How to connect the contacts
*3) Connect terminals on the terminal block (contacts up to 4AMP.AC1)
to the loads as shown in the diagram.
*3)
As it company policy to continually improve the products the Manufacturers
reserve the right to make any modifications thereto without prior notice. They
cannot be held liable for any damage due to malfunction.
SEt.2 = 6.0° The COSt values are shown in COSt paragraphs.
. p S a t e t
( ) 1
( ) 1
V e i t n t a l o i n O n
( ) 2 H E A T 2 O u p t t u O n
( ) 2 C O O L 2 O u p t t u O n
diF.d
VENTILATION ON
*1
OUT
1
VENTILATION OFF
SEt.1
T.ins-T.out
each sensor, taking great care over
* Other power voltage if you required
. N R e a l y C o n a t c s t
1 4 5 -
1 3 4 -
2 6 7 -
2 7 8 -
diF.2
HEAT 2
OUT
2
COOL 2
SEt.2
T.inside
the
HP52
