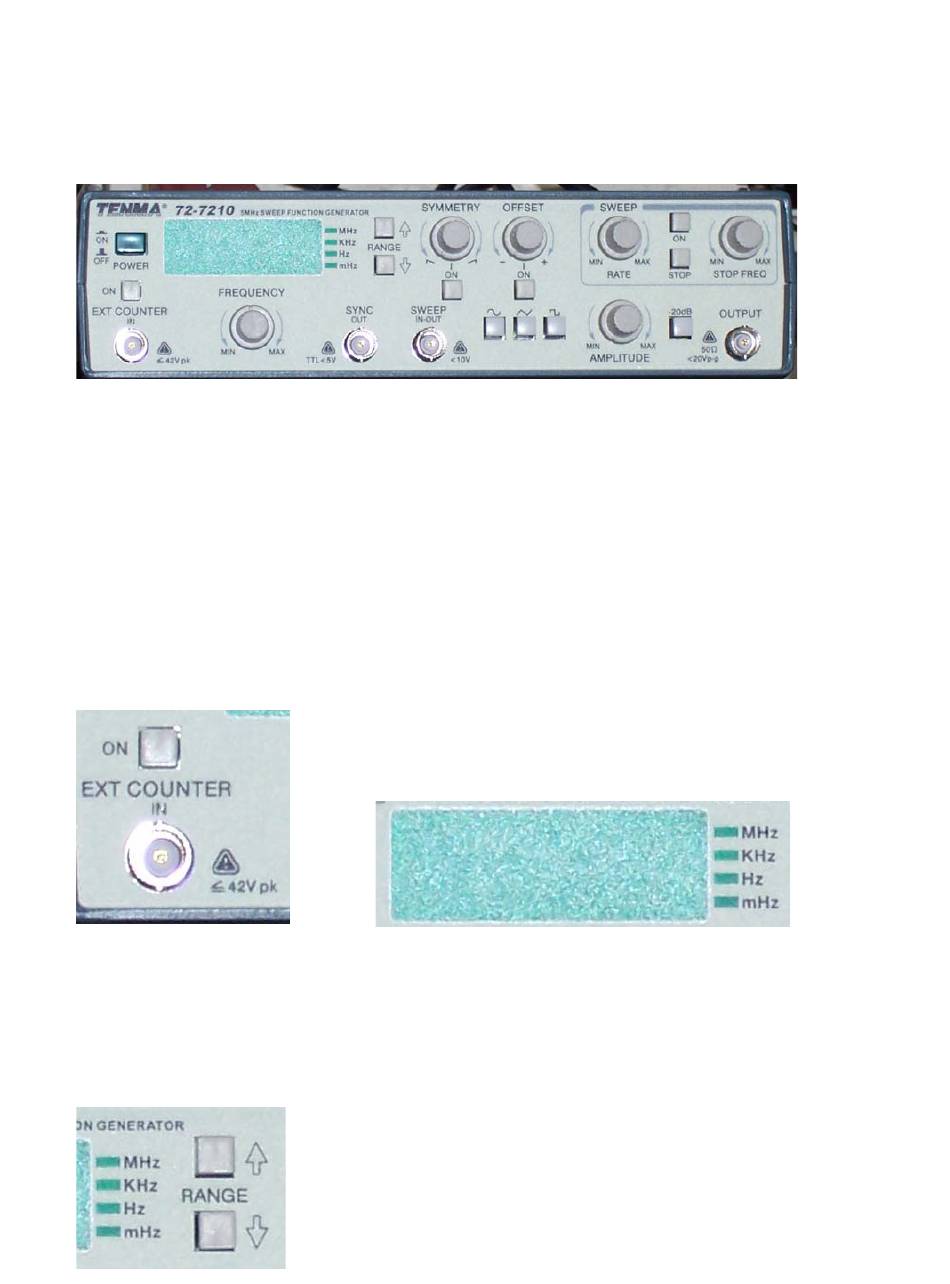

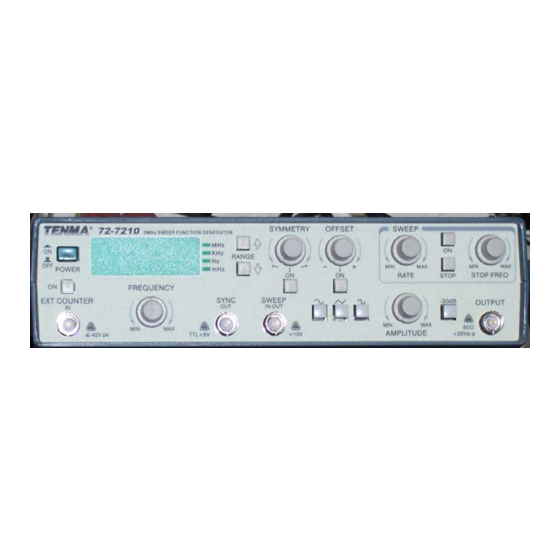

Tenma 72-7210 Function Generator
The Tenma 72-7210 Function generator is a single output repetitive function generator.
It is capable producing a sine, triangle or square wave with an adjustable frequency and
amplitude. The waveform symmetry and base amplitude voltage can be modified, as
well as setting the frequency up to sweep between to limits at an adjustable rate.

Display and Display mode:

The frequency output display can be set to display the output frequency of the function
generator or can be used to measure an external digital frequency.
The display indicates the frequency and the lit indicator to the right of the display
indicates the frequency range.

Frequency setting:

The output frequency is controlled by a combination of two controls. The range buttons
Quick Guide
The ON button switches the display to the external counter
mode. With the button left out, the display will show the value
of the internal frequency generator.
switch the range of the output, rotating through setting from (1-
560) mHz [.001 to .560 Hz] up through (3.6 – 6.2) MHz. Some
ranges have multiple settings. An example of this is the KHz
range selection has 3 selections, each increasing a decade.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 72-7210 and is the answer not in the manual?

Questions and answers

Related Manuals for Tenma 72-7210

Summary of Contents for Tenma 72-7210

  • Page 1: Quick Guide

    Tenma 72-7210 Function Generator Quick Guide The Tenma 72-7210 Function generator is a single output repetitive function generator. It is capable producing a sine, triangle or square wave with an adjustable frequency and amplitude. The waveform symmetry and base amplitude voltage can be modified, as well as setting the frequency up to sweep between to limits at an adjustable rate.
  • Page 2 The frequency value within the selected range is adjusted by the use of the vernier knob located below the display. This is a continuously adjustable knob that allows the adjustment of the frequency anywhere within the selected range. Waveform Shape: The waveform shape is select ed by three buttons located at the bottom of the face.
  • Page 3 mode. The STOP button allows the display to show what the upper level of the sweep frequency is set to. This is adjusted by the STOP FREQ vernial knob. The sweep mode will vary the output signal from the base frequency to the stop frequency. The rate of this change is selected with the RATE vernier.
