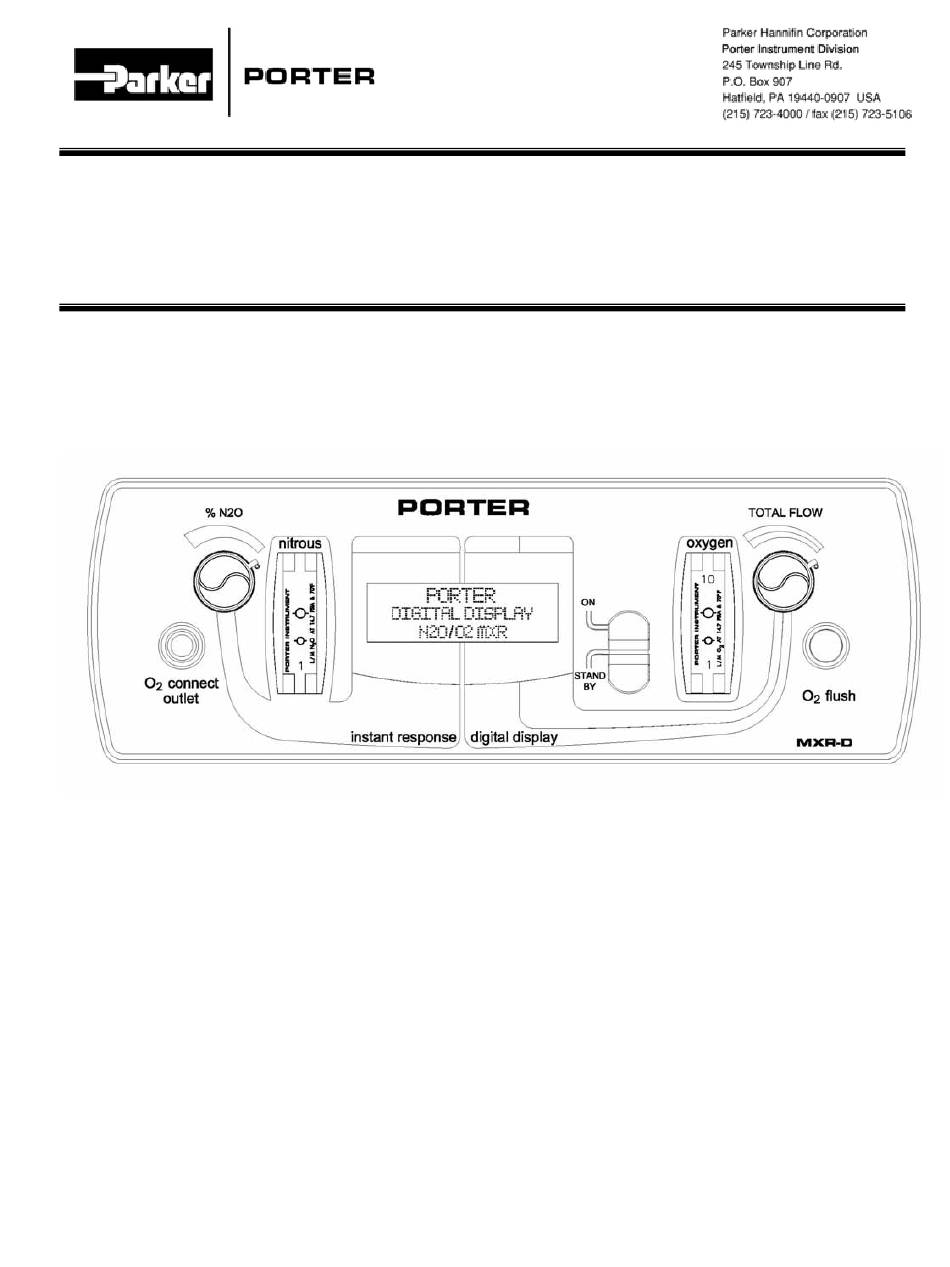

- Page 1 DIGITAL MXR-D Cabinet Mount Flowmeter Component Diagram and Installation Instructions MODEL 4065D FM-1062 Rev. B 6/07...
- Page 2 Earth (Ground) Attention, consult the accompanying documents. Type B Equipment • Distribution of Porter Model 4065D is limited and controlled to United States and Canada only. • The Porter Model 4065D incorporates fusing only in the ungrounded phase conductor. This product must not be used in countries other than the...
-
Page 3: Table Of Contents
Table of Contents TECHNICAL SPECIFICATIONS..................4 TANK REGULATOR SPECIFICATIONS................4 Oxygen Regulator.........................4 Nitrous Oxide Regulator .......................4 UL CLASSIFICATION .......................5 WARNINGS AND PRECAUTIONS..................6 CROSSED LINES WARNING ...................7 Do Not Allow Crossed Lines to Defeat Equipment Safety Features..........8 SAFETY:..........................9 ADA Guidelines ..........................9 NFPA Codes..........................9 INTENDED USE—Flowmeter for Analgesia Delivery System ........9 INSTALL THE GAS LINES....................10 SWITCHING THE UNIVERSAL CONNECTORS ............10... -
Page 4: Technical Specifications
8% from 0-150 branch circuit breaker is the main disconnect. LPM when supply is 800 PSIG. Porter recommends the following: 15A UL circuit Regulation of the supply pressure breaker two-wire with ground. should not change by more than 4% of set pressure at a flow of 75 LPM. -
Page 5: Ul Classification
UL CLASSIFICATION The Porter Digital MXR-D is UL Classified 82AN: Medical Equipment with respect to electric shock, fire and mechanical hazard only in accordance with UL 60601-1 and CAN/CSA C22.2 No. 601.1.UL. The system consists of the Digital MXR-D and Power Supply. -
Page 6: Warnings And Precautions
1/2” O.D. tubing for all Oxygen lines. To assure safe operation and conformation to local fire codes, all Porter Instrument flowmeter systems are designed to be used with sedation delivery systems mounted inside walls and they meet or exceed the guidelines established by the National Fire Protection Association for Nonflammable Medical Gas Systems, NFPA 99. -
Page 7: Crossed Lines Warning
Oxygen from an Oxygen demand valve only if the Oxygen source is independent from the suspected crossed lines area. To check for crossed lines of an installed Porter Vanguard (or Sentinel) Manifold System: 1. At the manifold system (in the tank room), start the check from an operating system with 50 PSI showing on both gauges and the indicator lights turned on –... -
Page 8: Do Not Allow Crossed Lines To Defeat Equipment Safety Features
Do Not Allow Crossed Lines to Defeat Equipment Safety Features Crossed lines in wall structure piping creates hazard of 100% Nitrous Oxide delivery to nasal mask and Oxygen demand valve when Flowmeter is set for 100% Oxygen resulting in over sedation. Over Sedation At gas outlet station, the common run of 1/2 inch pipe for Nitrous The initial installation potential problem:... -
Page 9: Safety
(See NFPA Code.) 2. The system be installed by a competent supplier of gases and equipment. NFPA Codes To assure safe operation and conformation to local fire codes, Porter Instrument Nitrous Oxide Sedation Systems meet exceed guidelines established by the National Fire... -
Page 10: Install The Gas Lines
INSTALL THE GAS LINES The dental dealer is responsible for the final A qualified plumber can install the delivery connections to the flowmeter, the details of piping up to and including the DISS Shut-Off flowmeter installation, checking for crossed- Valves by following the details below and lines, leak testing of connections to the illustrations in this brochure. -
Page 11: Cabinet / Wall Mount Installation
Bottom Connections 3.2. Switching the positions, gently hand- Cabinet Mount Installation: tighten plug Universal Bezel kit B-4988 may be used. This kit is connection into the flowmeter. Do not optional and must be ordered separately. force. The o’ring will help to center the piece in the cavity and the threading should proceed easily. - Page 12 Refer to “Power Supply System Illustration”. 6. Connect Porter supplied “Hospital Grade” power cord. 7. Determine the location of remote bag tee that accommodates visual monitoring of breathing bag during patient treatment.
-
Page 13: Flowmeter Accessories
Cleaning of Porter Scavenger Rubber Goods ppm (parts per million) exposure. Contact System. Porter for details on monitors and testing. Rubber Goods and Bag Tee Storage Remote Inspect and maintain the analgesia delivery bag tee can be disconnected with rubber goods... -
Page 14: Power Supply System Illustration
POWER SUPPLY SYSTEM ILLUSTRATION... -
Page 15: Gas Distribution System Illustration
GAS DISTRIBUTION SYSTEM ILLUSTRATION... -
Page 16: Initialization Procedure
INITIALIZATION PROCEDURE These steps are required for new installations or may be required when a power interruption / outage occurs and the unit is off for 15 minutes or longer (and failsafe message appears). 1. Confirm power supply is plugged into the power source and the back of flowmeter. 2.
