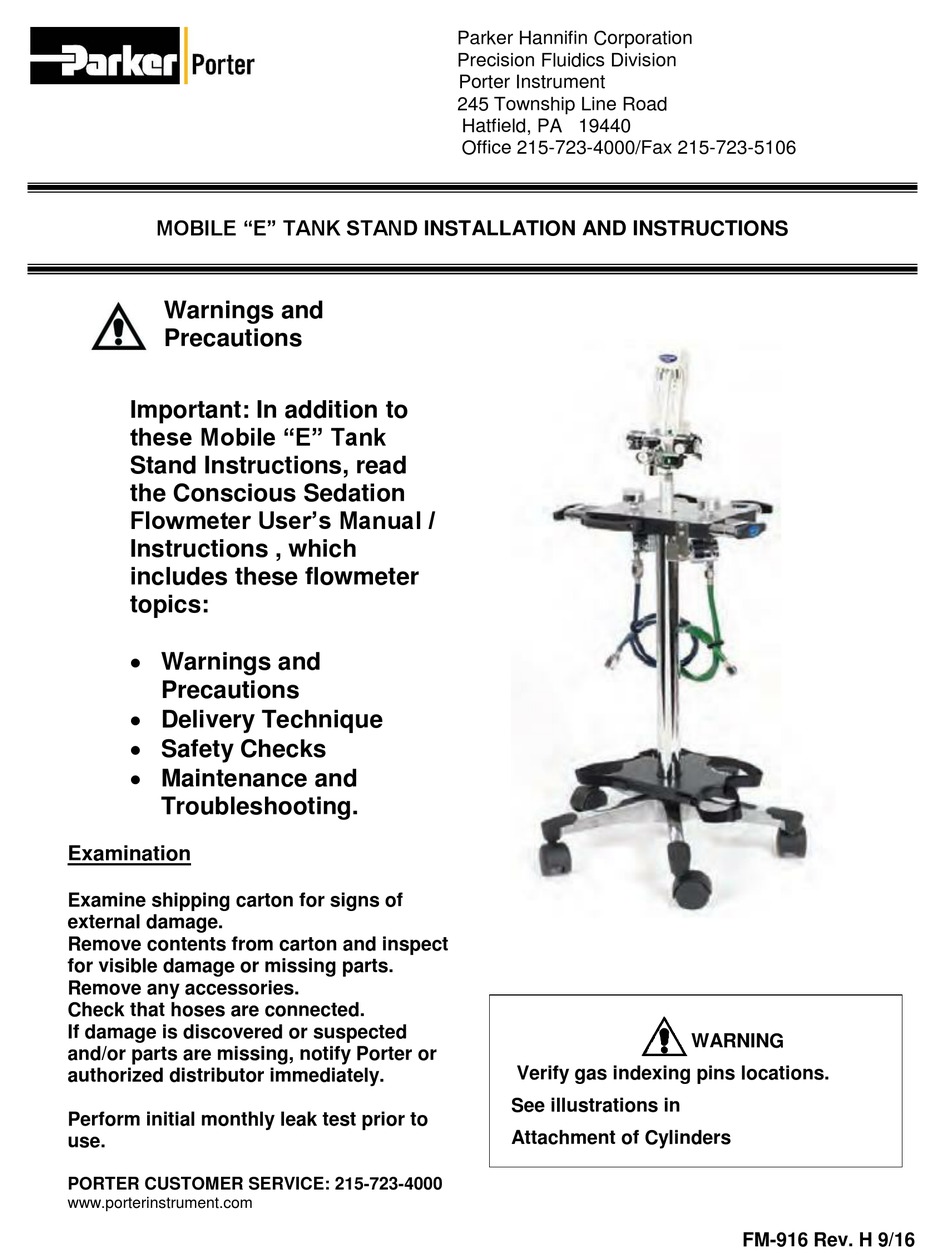

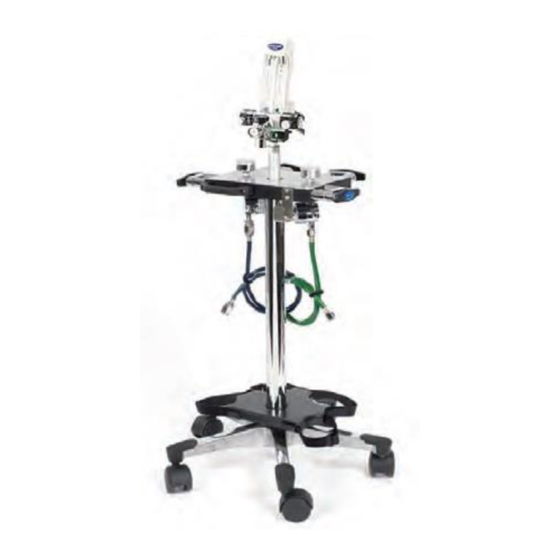

MOBILE "E" TANK STAND INSTALLATION AND INSTRUCTIONS
Warnings and
Precautions
Important: In addition to
these Mobile "E" Tank
Stand Instructions, read
the Conscious Sedation
Flowmeter User's Manual /
Instructions , which
includes these flowmeter
topics:
Warnings and
Precautions
Delivery Technique
Safety Checks
Maintenance and
Troubleshooting.
Examination
Examine shipping carton for signs of
external damage.
Remove contents from carton and inspect
for visible damage or missing parts.
Remove any accessories.
Check that hoses are connected.
If damage is discovered or suspected
and/or parts are missing, notify Porter or
authorized distributor immediately.
Perform initial monthly leak test prior to
use.
PORTER CUSTOMER SERVICE: 215-723-4000
www.porterinstrument.com
Parker Hannifin Corporation
Precision Fluidics Division
Porter Instrument
245 Township Line Road
Hatfield, PA 19440
Office 215-723-4000/Fax 215-723-5106
Verify gas indexing pins locations.
See illustrations in
Attachment of Cylinders
WARNING
FM-916 Rev. H 9/16
