WLA-5200AP-G
802.11b/g Multi-function Wireless Access Point
T

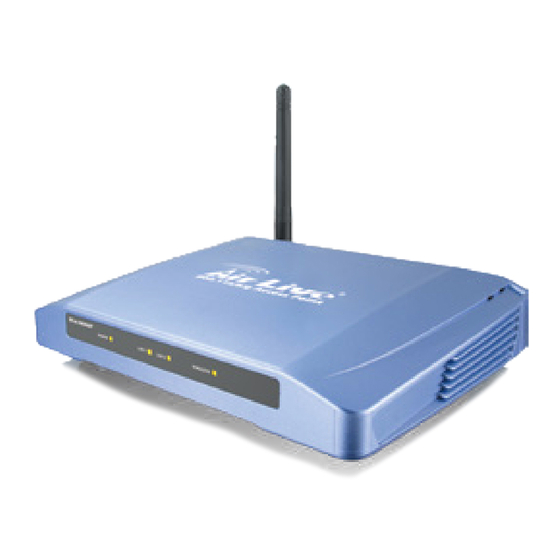

he AirLive WLA-5200AP-G is AirLive's latest multi-
function 802.11b/g Access Point that operates
in 2.4GHz frequency bands. It features incredible
7 wireless operation modes. Featuring the power
RTL-8651B RISC processor, it is a powerful yet cost
effective solution.
AP
Client
Bridge
Operates in 2.4Ghz spectrum
The AP can operate in 802.11b, or g mode. Comparing to other indoor 802.11b/g solutions, the AirLive
WLA-5200AP-G features 802.11h compliance and firmware with adjustable ACK timing. So you can
pair it with higher gain antenna and go the extra distance.
7 operation Mode Wireless
The WLA-5200AP-G features an incredible 7 operation mode.
AP Mode:
The WLA-5200AP-G is the central hub for all your wireless devices.
Bridge Mode: To connect 2 LANs together wirelessly.
Client Mode: Turn the WLA-5200AP-G into a wireless card so you can connect with remote AP.
WDS Repeater:
To increase the wireless coverage of a WDS enabled AP/Router
Universal Repeater:
WISP Mode: The WISP mode is similar to Client Mode. IP sharing function is added so you can share
the WISP connection with many PCs.
WISP+Universal Repeater:
5F, No.96, Min-Chuan Rd., Hsin-Tien Dist., New Taipei City 231, TAIWAN
WDS WISP WPA2
AirLive's unique universal repeater function let the WLA-5200AP-G extend the
coverage of your AP/Router, even if your AP/Router doesn't have WDS function!
The WISP + Universal Repeater mode let you share WISP connection on
both wireless and wired side.
Universal
2.4GHz
Repeater
