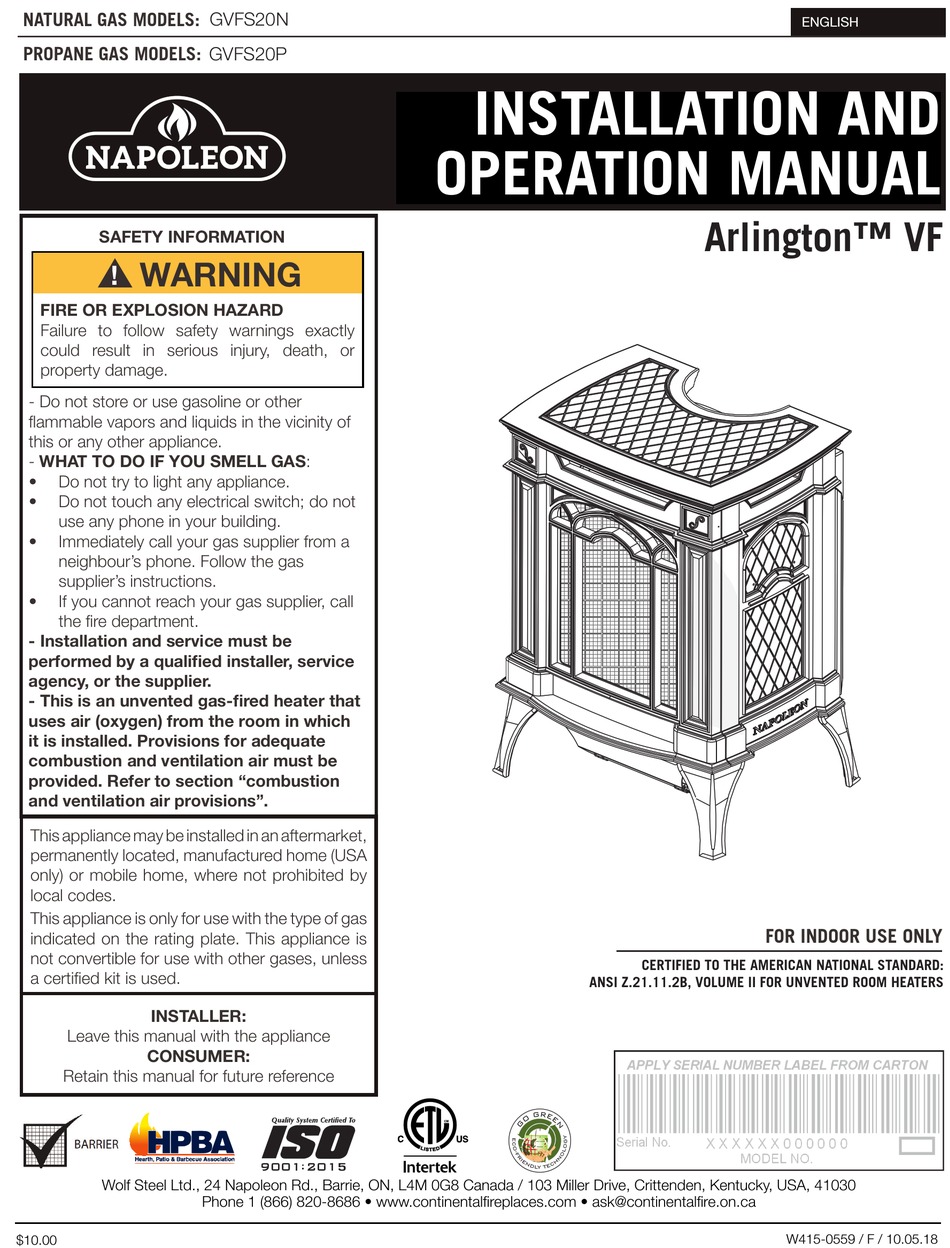

NATURAL GAS MODELS:
PROPANE GAS MODELS:
SAFETY INFORMATION
WARNING
!
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
- Do not store or use gasoline or other
fl ammable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not
use any phone in your building.
•
Immediately call your gas supplier from a
neighbour's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call
the fi re department.
- Installation and service must be
performed by a qualifi ed installer, service
agency, or the supplier.
- This is an unvented gas-fi red heater that
uses air (oxygen) from the room in which
it is installed. Provisions for adequate
combustion and ventilation air must be
provided. Refer to section "combustion
and ventilation air provisions".
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certifi ed kit is used.
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
$10.00
GVFS20N
ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)
GVFS20P
CERTIFICATION
Phone 1 (866) 820-8686 • www.continentalfi replaces.com • ask@continentalfi re.on.ca
INSTALLATION AND
ADD MANUAL TITLE
OPERATION MANUAL
ADD PRODUCT IMAGE
CERTIFIED TO THE AMERICAN NATIONAL STANDARD:
ANSI _______ FOR _____________________________________________________
ANSI Z.21.11.2B, VOLUME II FOR UNVENTED ROOM HEATERS
IF INSTALLATION + OPERATION, ADD SERIAL
LOGO
BARCODE LABEL ON THE OWNER'S MANUAL"
Arlington™ VF
Product Name / Code
(MUST use title from Price Book)
ADD ____ ILLUSTRATED
FOR INDOOR USE ONLY
CERTIFIED TO THE AMERICAN NATIONAL STANDARD:
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD "PLACE
W415-0559 / F / 10.05.18
ENGLISH
Advertisement
Table of Contents
Related Manuals for Wolf Steel Arlington GVFS20N
Summary of Contents for Wolf Steel Arlington GVFS20N
- Page 1 LOGO BARCODE LABEL ON THE OWNER’S MANUAL” Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone 1 (866) 820-8686 • www.continentalfi replaces.com • ask@continentalfi re.on.ca W415-0559 / F / 10.05.18...
- Page 2 safety information WARNING DANGER • This appliance is hot when operated and can cause severe burns if contacted. • Any changes or alterations to this appliance or its controls can be dangerous and is prohibited. HOT GLASS WILL CAUSE • Do not operate appliance before reading and BURNS.
- Page 3 • If applicable, the millivolt version of this appliance uses and requires a fast acting thermocouple. Replace only with a fast acting thermocouple supplied by Wolf Steel Ltd. WARNING: Add California Prop 65 warning...
-
Page 4: Table Of Contents
14.0 notes note: The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves the right to change or modify any information within this manual at any time without notice. Changes, other than editorial, are denoted by a vertical line in the margin. -
Page 5: General Information
standard checklist Installer, please fill out the following information: Customer: Address: Date of Installation: Location of appliance: Installer: Dealer/Distributor contact number: Serial #: Model: GVFS20N GVFS20P Natural Gas: Propane: 1.0 general information When the appliance is installed at elevations above 2,000ft, and in the absence of specific recommendations from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of 4% for each additional 1,000ft. - Page 6 Objects placed in front of the heater should be kept a minimum of 48" away from the front face of the appliance. • Use only Wolf Steel approved optional accessories and replacement parts with this appliance. Using non-listed accessories and replacement parts (blowers, louvres, trims, gas components, vent components, etc.) could result in a safety hazard and will void the limited lifetime warranty.
-
Page 7: Rating Plate Information
SCREEN MUST BE IN PLACE WHILE THE APPLIANCE IS IN 2" OPERATION. 48” MINIMUM TO CEILING FROM STOVE TOP ELECTRICAL RATING: 115V 0.82AMP, 60HZ WOLF STEEL LTD. OPTIONAL FAN KIT: GS-64KT 24 NAPOLEON ROAD. BARRIE, ONTARIO L4M 0G8 CANADA IGNITER GVFS20... -
Page 8: Dimensions
general information dimensions W415-0559 / F / 10.05.18... -
Page 9: Installation
2.0 installation THIS GAS HEATER SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to conform with local codes. Installation practices vary from region to region and it is important to know the specifics that ap- ply to your area. Provide adequate ventilation and combustion air. - Page 10 Multiply the room volume by 1000 and divide this amount by 50 to determine the maximum BTU/hr that the space can height of that room measured in feet. If any adjoining rooms are connected by grilles or openings such as kitchen pass- support with adequate combustion and ventilation air.
-
Page 11: Gas Installation
3.0 gas installation WARNING • Risk of fi re, explosion, or asphyxiation. Ensure there are no ignition sources such as sparks or open fl ames. • Support gas control when attaching gas supply pipe to prevent damaging gas line. • Always light the pilot whether for the fi rst time or if the gas supply has run out with the glass door opened or removed. -
Page 12: Optional Wall Switch / Thermostat
4.0 optional wall switch / thermostat WARNING • Do not connect either the wall switch, thermostat or gas valve directly to 110 volt electricity. For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient SIT MILLIVOLT location. -
Page 13: Finishing
5.0 finishing cast front installation and removal WARNING • Screens must be closed while the appliance is in operation. Lift the top cast piece off of the heater. SCREWS Detach the front cast piece from the side pieces by removing the BRACKET screws from the brackets located in the upper inside corners. -
Page 14: Log Placement
finishing log placement WARNING • Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved with this appliance may result in property damage or personal injury. • Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since appliance may not function properly. -
Page 15: Optional Blower Installation
6.0 optional blower installation blower installation and connection see location and clearances in instruction manual Cut and remove the tie securing the blower switch wires to the heat shield. Connect the white wire coming from below the heater to the terminal on the blower. -
Page 16: Operation
7.0 operation WARNING • If you do not follow these instructions exactly, a fi re or explosion may result causing property damage, personal injury, or loss of life. • If applicable, always light the pilot whether for the fi rst time or if the gas supply has run out with the glass door opened or removed. -
Page 17: Adjustment
DEXEN EI 2-WAY PILOT 8.0 adjustment 3/8” - 1/2” (9.5mm - 12.7mm) venturi adjustment (9.5 WARNING La flamme d Flame must envelope la sonde d upper • Carbon can be distributed in surrounding living area if the air shutter is improperly adjusted. 3/8"... -
Page 18: Maintenance
9.0 maintenance WARNING • Turn off the gas and electrical power before servicing the appliance. • Appliance may be hot. Do not service until appliance has cooled. • Do not use abrasive cleaners on glass. • Do not paint the pilot assembly. This appliance and its venting system should be inspected before use and at least annually by a qualifi ed service person. -
Page 19: Pilot Indicator Light Battery Replacement
maintenance pilot indicator light battery replacement If the pilot indicator light no longer flashes and the pilot is burning, the batteries may require replacing. Four "AA" batteries are required and should be replaced annually. Open the switch housing by removing the top screw, then pivoting the box open. -
Page 20: Replacement Parts
10.0 replacement parts WARNING • Failure to position the parts in accordance with this manual or failure to use only parts specifi cally approved with this appliance may result in property damage or personal injury. Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can be ordered through your Authorized dealer / distributor. - Page 21 replacement parts W415-0559 / F / 10.05.18...
-
Page 22: Accessories
11.0 accessories W415-0559 / F / 10.05.18... -
Page 23: Troubleshooting
12.0 troubleshooting WARNING • Always light the pilot whether for the fi rst time or if the gas supply has run out with the glass door open or removed. • Turn off the appliance completely and let cool before servicing. Only a qualifi ed service person should service and repair this electric appliance. - Page 24 troubleshooting symptom problem test solution Pilot will not light. Out of propane gas. Fill the tank. INSERT No spark at pilot burner. Check if pilot can be lit by a match. Check that the wire is connected to the push button ignitor. THERMOCOUPLE THERMOPILE PHOTO...
-
Page 25: Warranty
All specifi cations and designed are subject to change without prior notice due to on-going product improvements. Napoleon is a registered trademark of Wolf Steel Ltd. W415-0559 / F / 10.05.18... -
Page 26: Notes
14.0 notes 29.1 W415-0559 / F / 10.05.18... - Page 27 notes 29.1 W415-0559 / F / 10.05.18...
