Sensor MULi6s EX
MULi6s MENU: SERVICE – by pressing button D (arrow down) you will change to depiction of the firmware
version and to renewal of the sensor default setting.
Factory Defaults – by simultaneous pressing of arrows R and L (right and left) the factory settings of the
MULI6s are loaded.
MULI6S v. xx.xx ID xxxxx:xxxxx – product marking with firmware version and series number (ID).
IMPORTANT: Order of connection:
– Connect the sensor to your lithium-based battery via the balance connector (Please note correct polarity)
– Connect the sensor to the receiver or expander
– Connect negative battery terminal to negative ESC/BEC terminal
– Connect positive battery terminal to positive ESC/BEC terminal
Connecting the battery to the sensor
Your lithium-based battery should be connected to the sensor via the balance plug on your battery. Please
observe the correct polarity. After connecting, the sensor requires approximately 2 seconds to determine
the number of cells connected. During this time the screen of your Jeti Box will indicate progress. If a
battery with a different number of cells is connected, the sensor will report an error and must be
disconnected from its power supply.

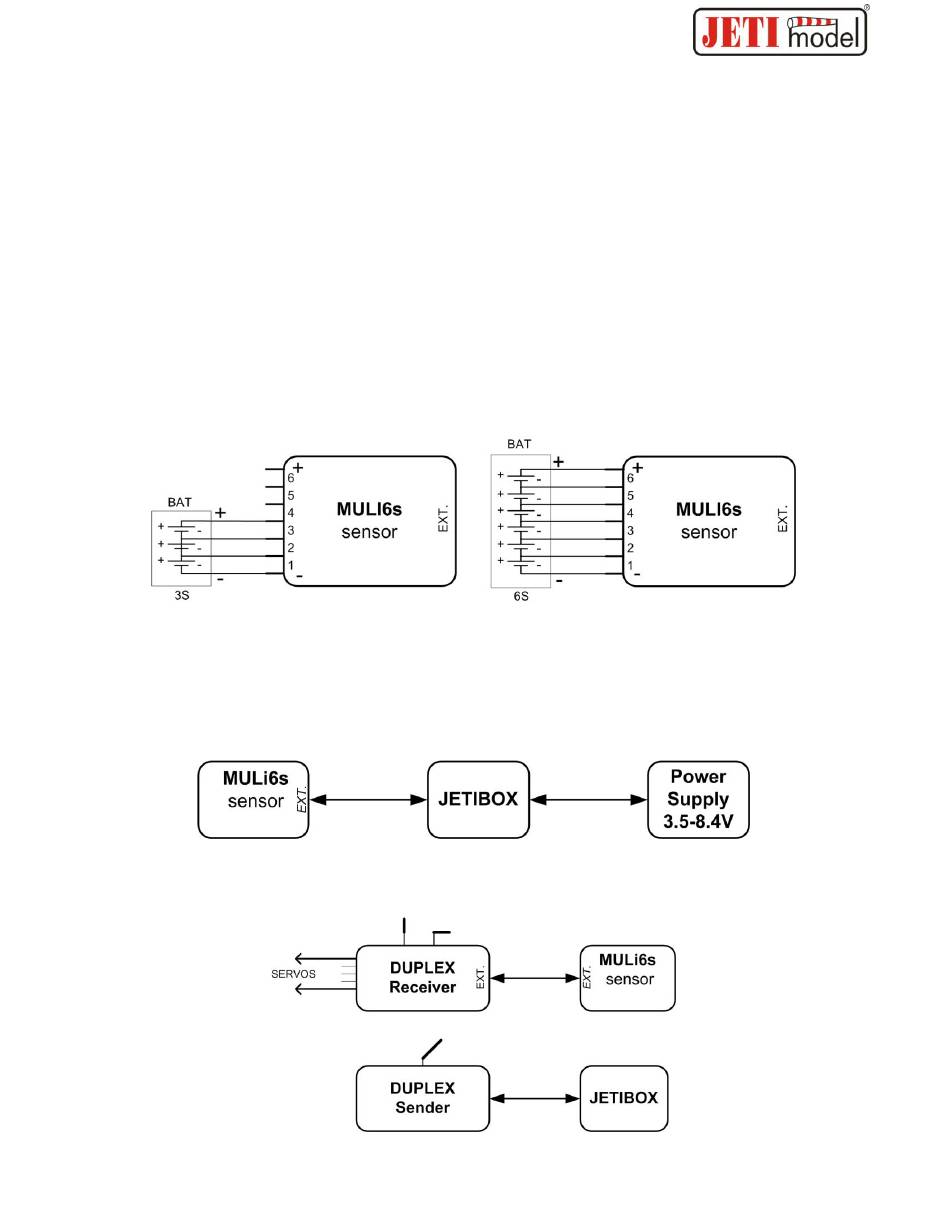

Connecting the MULi6s sensor
1. The three-wire cable with JR connector may be connected directly to the Jeti Box using the Pulse/+/-
socket. A power source of 3.5-8.4V must be supplied via the Jeti Box using the +/- socket to power the
module. In this configuration the MULi6s sensor can operate as a stand-alone mobile unit, providing
measurements on the screen of the Jeti Box. No alarm signals are generated with this configuration,
because these are provided by the transmitter module, which is not connected. Alerts are displayed only on
the LCD screen.
2. Connect the three-wire cable with JR connector directly to the Ext. socket on the Duplex receiver. In this
configuration the sensor is powered via the receiver. Switching on the transmitter and receiver allows the
sensor to be configured appropriately for your power system and alarm settings to be defined.
