- Page 1 ANUAL By JETI model s.r.o. 14. 11. 2014...
- Page 2 2. MAIN FEATURES.............................3 3. PLACEMENT OF MBAR EX SENSOR....................3 4. CONNECTING THE MBAR EX SENSOR....................4 5. SETTING VIA JETIBOX.........................5 5.1 T :..........................5 SENSOR MENU 6. SETUP VIA DC/DS TRANSMITTERS....................6 7. WARRANTY..............................7 8. MBAR EX MENU DISPLAYED ON THE JETIBOX LCD:..............7...

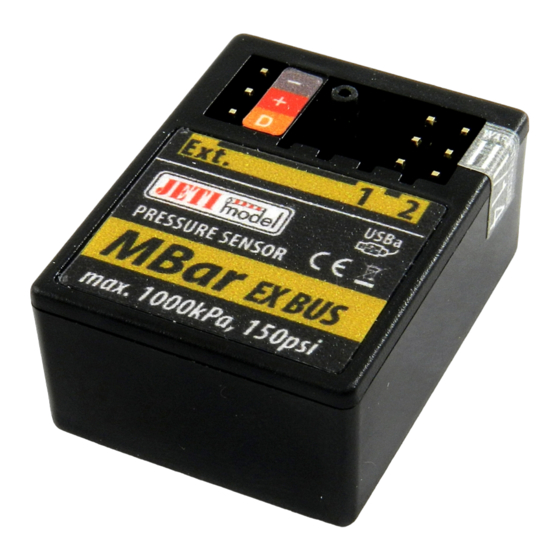

- Page 3 The information from the sensor is transmitted to the user via Duplex EX system. The MBar EX can be used for measuring pressure in containers with compressed air (retractable landing gear systems) or for controlling the oil pressure in hydraulic systems.
- Page 4 4. Connecting the MBar EX sensor The MBar EX has an output marked Ext. and two programmable ports that are labeled as Ext1 and Ext2. Using the Ext. port of the sensor the data is transmitted to the receiver or to the connected JETIBOX, and it...
- Page 5 Connect the three-wire extension cable with JR plugs to the Ext. socket of the MBar EX sensor. The other end of the cable is to be connected to the Duplex EX receiver (marked Ext.). In such a case the MBar EX sensor is configured this way: Ext1 Mode (Expander), Ext2 Mode (Expander).
- Page 6 Mbar EX are loaded. 6. Setup via DC/DS transmitters MBar EX sensor can be easily configured via any DC/DS transmitter. If switch the paired receiver to the EX Bus mode and you connect the MBar to its Ext. port, the device will be detected automatically and then might configured in the menu Model →...
- Page 7 User Manual: MBar EX the main setting of the Mbar EX, the Ext1 and Ext2 sockets can be configured (possible selections: Disabled, Expander, Log. Input). 7. Warranty This product is guaranteed for 24 months from the date of purchase, provided that it has been operated in accordance with these instructions at the prescribed load and becomes mechanically damaged.
