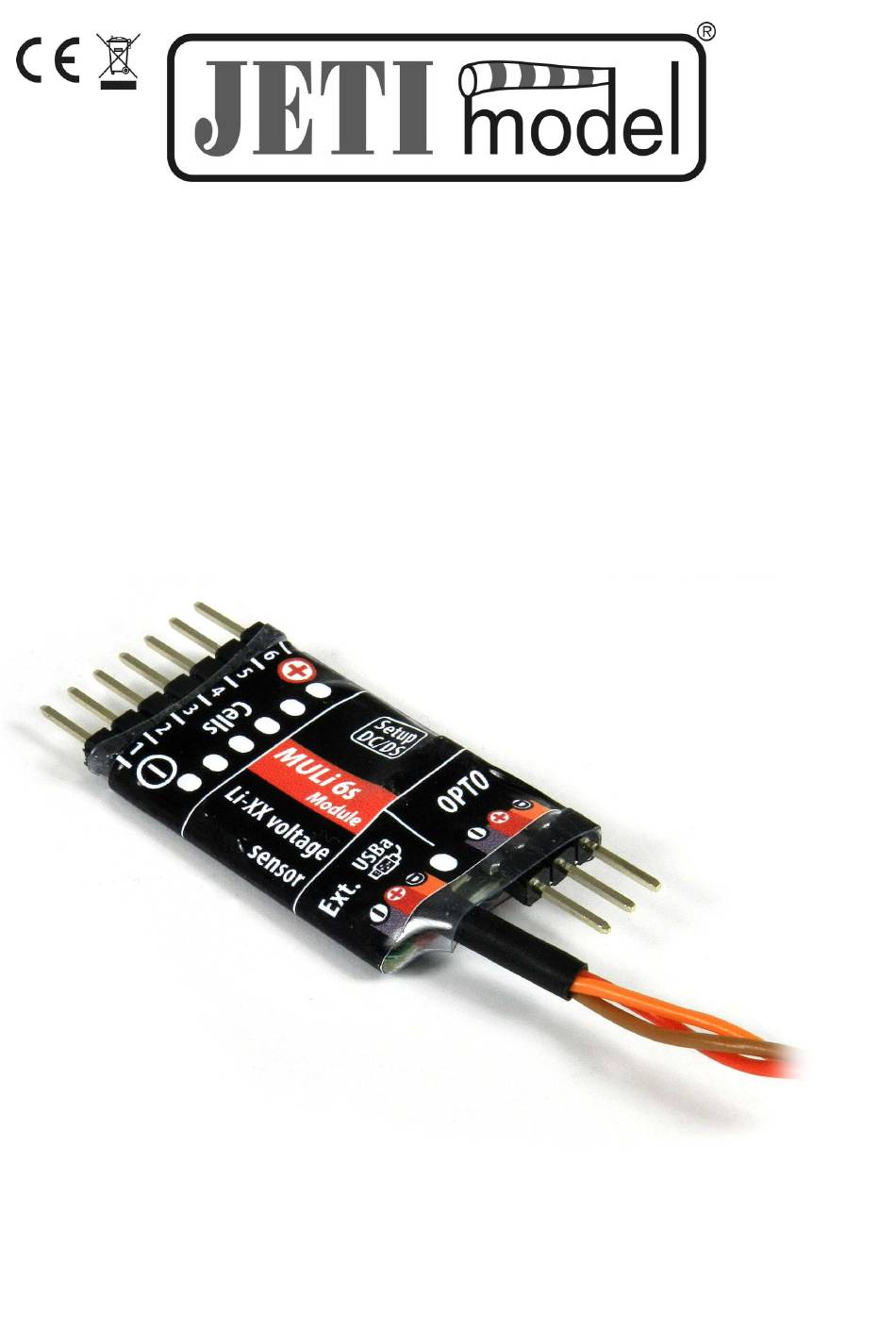

- Page 1 NSTRUCTIONS FOR USING SENSOR ODULE Producer JETI model s.r.o 14.12.2017...
-
Page 2: Table Of Contents
Instructions manual: MULi6s Module ONTENTS DESCRIPTION..........................3 SENSOR CONNECTION MULI6S MODULE................3 MULi6s Module SENSOR CONNECTION OPTION..............6 3.1. Jetibox................................6 3.2. Receiver.................................6 MENU JETIBOX..........................7 4.1. Actual values..............................7 4.2. Min / Max..............................8 4.3. Settings................................8 4.4. Alarms................................8 4.5. Service................................8 CONFIGURATION USING A DC / DS TRANSMITTER............9 5.1. -
Page 3: Description
6 Li-XX cells per module. The individual MULi6s modules can be serialized and can be connected to up to 5 modules. The MULi6s Module sensor monitors the voltage of each battery cell with its history (minimum, maximum), the total battery voltage, the voltage difference between the strongest and the weakest cells, and the sensor is able to alert the operator to exceed the set parameters by means of alarms. - Page 4 Instructions manual: MULi6s Module Battery cells are connected from "1" to "6", unless the connection is maintained and the sensor is powered, the red LED lights up. The sensor is powered either from the first two battery cells or from the receiver via the EXT output, whichever is the higher the supply voltage.
- Page 5 Instructions manual: MULi6s Module Notice! Only use wires that are part of the sensor for serial connection of modules.
-
Page 6: Muli6S Module Sensor Connection Option
Instructions manual: MULi6s Module 3. MULi6s Module sensor connection options: 1. The MULi6s Module three-wire sensor cable with the JR connector can be connected directly to the JETIBOX (connector labeled Impulse,+ -). Use the second JETIBOX input, which is marked (+ -), to bring the supply voltage. -
Page 7: Menu Jetibox
The same procedure as the receiver applies to Jetibox and other connected devices on the EXT output of the MULi6s Module sensor. So if only the battery is connected to the sensor, the sensor is set to Slave and takes the type 70uA. If the receiver is connected to the sensor in addition to the battery or the Jetibox, the sensor will take 0.5mA until the power supply of the receiver or Jetibox is connected, then after... -
Page 8: Min / Max
Instructions manual: MULi6s Module 4.2. MULi6s Module MENU: MIN / MAX - Press D (Down Arrow) to select the display of the voltage extremes recorded during the measurement. Extreme recording is automatically deleted according to the trigger settings in the "Settings" menu or can be deleted manually. -
Page 9: Configuration Using A Dc / Ds Transmitter
Instructions manual: MULi6s Module Configuration using a DC / DS transmitter: MULi6s Module can be configured via the DC / DS transmitter via the Connected Devices menu. In order to configure MULi6s via the transmitter, it is necessary to observe: •... -
Page 10: Telemetry Min/Max
• MIN/MAX Telemetry of all cells - displays all connected cells and their minimum and maximum voltage. Firmware Update: MULi6s Module allows you to update your firmware via your computer. Updates are done via the JETI USB Adapter. Procedure: • On the website www.jetimodel.cz in the download section, you will find a program for updating with the latest firmware. -
Page 11: Specifications
The product is warranted 24 months from the date of sale, provided it has been operated in accordance with this manual, to the prescribed voltage and is not mechanically damaged. The warranty and post- warranty service is provided by the manufacturer: JETI model s.r.o. Příbor, www.jetimodel.cz... - Page 12 Instructions manual: MULi6s Module MULi6s Module menu displayed on JETIBOX terminal:...
