- Page 1 MVario2 ® MVario2 ERES limiter SW for competition flying User Manual...
-
Page 2: Description And Function

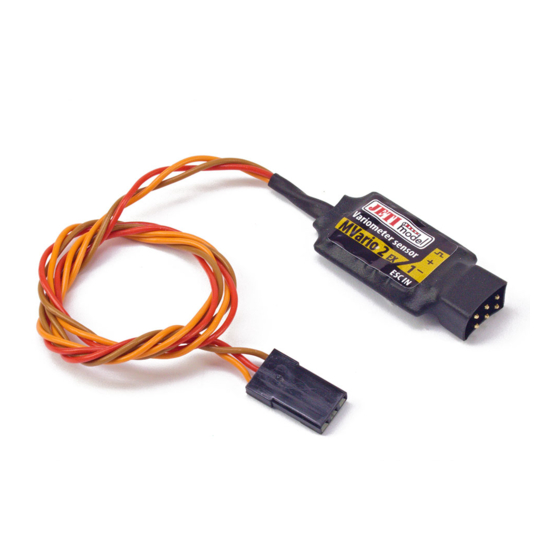

Mvario2 - ERES limiter 1 Description and function ERES limiter is a special type of MVARIO2 firmware designed for the competition category of electrically powered gliders (ERES). Measurements and height calculations are the same as the specifications of F5J category. Settings and telemetry are strictly limited according to the needs of the ERES competition. - Page 3 MVario2 The sensor can only be configured if the ECS-in throttle channel (pulse) is not connected after connecting the power supply to the sensor. Once a pulse is connected to the ESC-in, the sensor can no longer be set until its power supply is reset. Settings can be made by the Jetibox or DC/DS transmitter (in the "device explorer"...
- Page 4 MVario2 The motor is shutdown if: Set height is reached ● Set time is reached ● The throttle lever has been pulled below the set level ● The motor will be stopped, whichever occurs first (terms above). After stopping the motor, the motor cannot be restarted until the sensor power is disconnected and connected again and the sensor returns to the Ready status.
- Page 5 MVario2 2 Settings by the DC/DS transmitter: To d i s p l a y t h e t e l e m e t r y parameters correctly, it is necessary to reload/reset the sensor telemetry. In the menu T i m e r s / S e n s o r s - >...
- Page 6 MVario2 To display the ERES limiter in "device explorer", it is necessary to have the configuration file ERES.bin in the Devices folder in the transmitter. The sensor have to be connected to the EXT output of the receiver and the output have to be set as EX BUS.
- Page 7 MVario2 3 S ettings by the JETIBOX The DC/DS transmitter in the "device explorer" menu or Jetibox can be used to view 10 measured heights (measured after 1s). After connecting the power supply (for 3 seconds) the initialization screen with information about the ERES firmware version marked "E"...
- Page 8 MVario2 Connection with the JETIBOX: Power supply: 5 - 8,4V Ext1/ESC In JETI JETI Made in EU - Czech republic Ext2/ESC Out...
- Page 9 MVario2 4 Connection options with controllers: Possibilities of ERES limiter connection in the BEC and OPTO controller version. 9 channel receiver Ext. BATT Throttle chanel Ext1/ESC In Ext2/ESC Out speed controller MOTOR with BEC Power Batt. 9 channel receiver Ext.
-
Page 10: Technical Data
Current consumption 15 mA Follow the principles of installation and handling of the sensor according to the instruction manual for MVARIO2. 6 Warranty: This product is covered by warranty for 24 months after the day of purchase provided that it has been operated in accordance with these instructions at the specified voltage and is not mechanically damaged. - Page 11 MVario2 JETI model s.r.o. Lomená 1530, 742 58 Příbor Czech Republic www.jetimodel.com info@jetimodel.cz...
