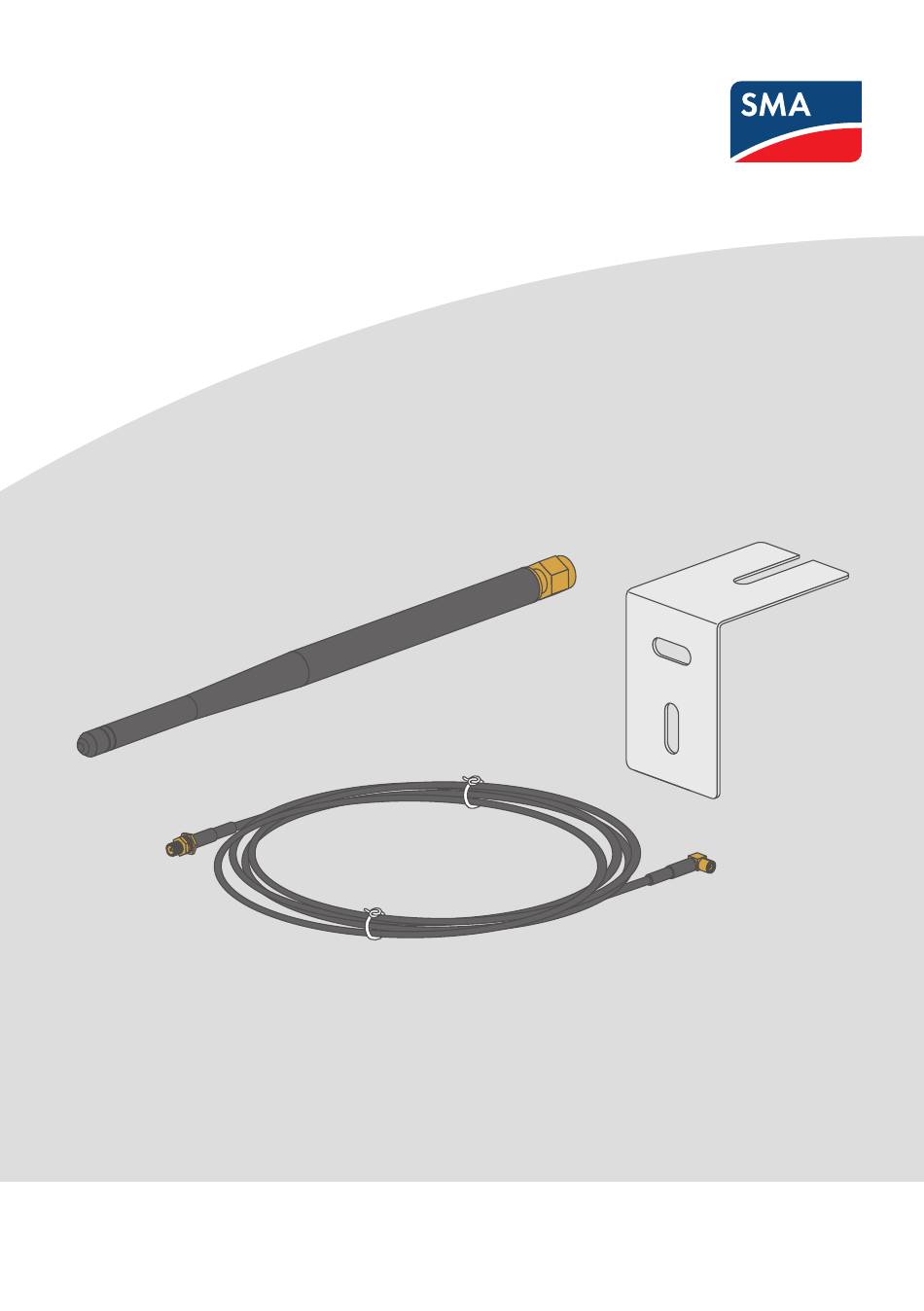

- Page 1 Installation Manual ANTENNA EXTENSION KIT EXTANT-US-40 ENGLISH EXTANT-US-40-IA-en-13 | Version 1.3...
- Page 2 SMA Solar Technology AG Legal Provisions The information contained in these documents is the property of SMA Solar Technology AG. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior written permission of SMA Solar Technology AG.
-
Page 3: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents Information on this Document..........Validity ........................Target Group......................Content and Structure of this Document ..............Symbols in the Document ..................Typographies in the document .................. Designation in the document .................. -
Page 4: Information On This Document
SMA Solar Technology AG Information on this Document Validity This document is valid for: • EXTANT-US-40 (Antenna Extension Kit) Target Group The tasks described in this document must only be performed by qualified persons. Qualified persons must have the following skills: •... -
Page 5: Typographies In The Document
SMA Solar Technology AG 1 Information on this Document Typographies in the document Typography Example • Messages • Connect the insulated bold conductors to the terminals • Terminals X703:1 to X703:6. • Elements on a user interface • Enter 10 in the field •... -
Page 6: Safety
Intended Use The Antenna Extension Kit is an accessory set for SMA inverters: By installing the Antenna Extension Kit in an SMA inverter with WLAN interface, the inverter's radio range can be optimized within the WLAN network. The product must only be installed in the following SMA inverters: •... -
Page 7: Important Safety Instructions
SMA Solar Technology AG assumes no responsibility for the compliance or non- compliance with such laws or codes in connection with the installation of the product. - Page 8 2 Safety SMA Solar Technology AG CAUTION Risk of burns due to hot enclosure parts Some parts of the enclosure can get hot during operation. • During operation, do not touch any parts other than the enclosure lid of the inverter.
-
Page 9: Scope Of Delivery
SMA Solar Technology AG 3 Scope of Delivery Scope of Delivery Check the scope of delivery for completeness and any externally visible damage. Contact your distributor if the scope of delivery is incomplete or damaged. Figure 1: Components included in the scope of delivery... -
Page 10: Mounting
4 Mounting SMA Solar Technology AG Mounting Mounting position A N T P 2 0 V F - K I D : S - K P 2 F C C 4 4 0 A I C : 9 . 3 0 V... -
Page 11: Mounting The Antenna
SMA Solar Technology AG 4 Mounting The mounting location of the antenna is crucial for the quality of the wireless connection. Radio waves are emitted in circles from the longitudinal side of the antenna. A circular dead spot begins at the tip of the antenna. If you place the receiver in this dead spot, the receiver cannot receive any radio waves from the antenna. - Page 12 4 Mounting SMA Solar Technology AG Procedure: DANGER Danger to life due to high voltages of the PV array When exposed to sunlight, the PV array generates dangerous DC voltage, which is present in the DC conductors and the live components of the inverter. Touching the DC conductors or the live components can lead to lethal electric shocks.
- Page 13 SMA Solar Technology AG 4 Mounting • Unscrew the swivel nut from the cable gland. • Remove the two-hole cable support sleeve from the cable gland. • Route the antenna cable with the cable end with the plug through the swivel nut and the desired hole of the two-hole cable support sleeve.
- Page 14 4 Mounting SMA Solar Technology AG • Considering the dead spot of the antenna, move the antenna bracket to the desired position on the wall and hold it firmly. • Mark positions of drill holes if necessary and drill two holes with 6 mm (0.24 in) diameter each at the marked points and insert screw anchors.
- Page 15 SMA Solar Technology AG 4 Mounting • Hand-tighten the antenna on the antenna extension cable plug. DANGER Danger to life due to electric shock from touching an ungrounded product Touching an ungrounded product can cause a lethal electric shock. • Ensure that the product is integrated in the existing overvoltage protection.
-
Page 16: Troubleshooting
If the value External Antenna is not set, set the antenna type (see inverter manual). • Ensure that the antenna of type “EXTANT-US-40” is installed correctly and that only the supplied antenna cable was used. • Ensure that the receiver is not placed in the dead spot . -
Page 17: Decommissioning
SMA Solar Technology AG 6 Decommissioning Decommissioning Removing the Antenna Required tools: ☐ Long-nosed pliers Procedure: DANGER Danger to life due to high voltages of the PV array When exposed to sunlight, the PV array generates dangerous DC voltage, which is present in the DC conductors and the live components of the inverter. -
Page 18: Disposing Of The Product
6 Decommissioning SMA Solar Technology AG Disposing of the Product • Dispose of the product in accordance with the locally applicable disposal regulations for electronic waste. EXTANT-US-40-IA-en-13 Installation Manual... -
Page 19: Contact
SMA Solar Technology AG 7 Contact Contact If you have technical problems with our products, please contact the SMA Service Line. The following data is required in order to provide you with the necessary assistance: • Inverters: – Serial number – Special country-specific settings (if available) •... - Page 20 www.SMA-Solar.com...
