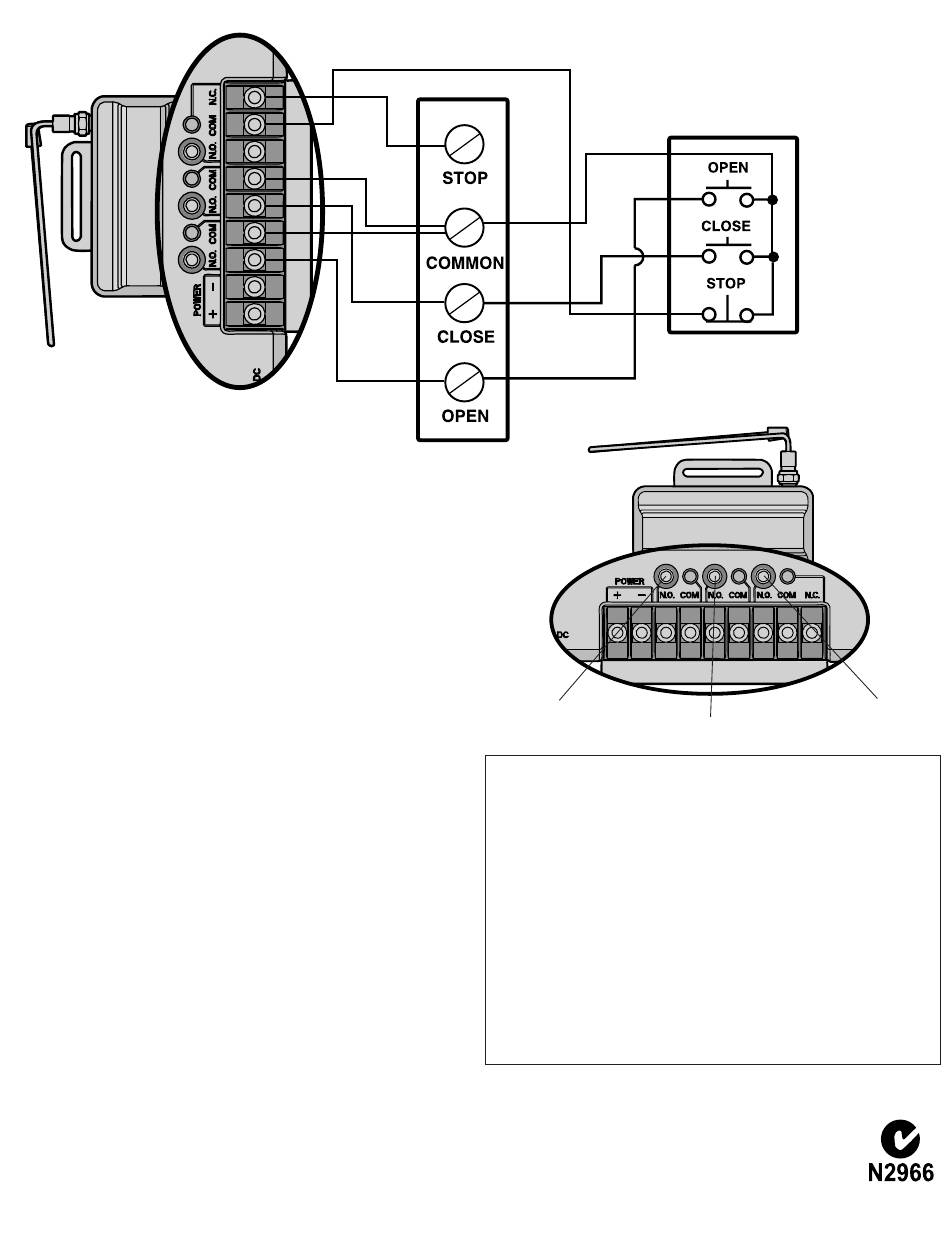

WIRING CONTINUED
OPEN, CLOSE, STOP
Receiver
PROGRAMMING
PROGRAM A SINGLE BUTTON REMOTE CONTROL
1 Press and release the Learn button for the selected channel on
the receiver. The corresponding LED will glow steadily for 30
seconds.
2 Within 30 seconds press and hold the button on the remote
control that you wish to program to the receiver.
3 Release the remote control button when the LED on the
receiver blinks, then turns off. Programming is complete.
Repeat the steps above for each remote control you would like to
program.
PROGRAM A 3-BUTTON REMOTE CONTROL AS OPEN,
CLOSE, AND STOP
1 Press and release the CH1 Learn button on the receiver.
2 Within 30 seconds press the desired OPEN button on the
remote control.
3 Press and release the CH2 Learn button on the receiver.
4 Within 30 seconds press the desired CLOSE button on the
remote control.
5 Press and release the CH3 Learn button on the receiver.
6 Within 30 seconds press the desired STOP button on the
remote control.
NOTE: If a remote control button is not pressed within 30
seconds, the LED next to the selected Learn button will turn OFF.
In that case, repeat the programming.
TO ERASE THE MEMORY
1 Press and hold the Learn button for the channel you want to
erase. Release the button when the corresponding LED turns
off; the memory has been erased.
FOR TECHNICAL SUPPORT DIAL OUR TOLL FREE NUMBER:
1800 638 234
Single Operator
CH1 Learn Button
Contact Rating . . . . . . . . . . . . . . . . 5 Amps 28 Vac or dc Max.
Power . . . . . . . . . . . . . . . . . . . .9-30V AC or 9-34V DC, 50mA
RF Frequency: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433MHz
NOTE: If your operator does not meet the power specifications
you will need a low voltage power supply.
For indoor installation only.
COMPATIBLE ACCESSORIES
Remote Controls . . . . . . . . . . Models E945M, E940M, E943M,
Keypads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Models E840M
Antenna Extension Kits . . . . . . . . . . . . . . . . . . . . Models 86LM,
Antenna Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .K77-36541
CHAMBERLAIN AUSTRALIA PTY LTD
PO BOX 1446
LANE COVE NSW 1595
PHONE TOLL FREE: 1800 638 234
CHAMBERLAIN NEW ZEALAND LTD
PO BOX 100-221
NORTH SHORE 0745
PHONE TOLL FREE: 0800 MERLIN
WWW.GO-MERLIN.COM
3-Button Control Device
Refer to your door operator
or gate operator wiring
diagrams for instructions on
connecting two or more
3-Button control devices.
CH2 Learn Button

SPECIFICATIONS

CH3 Learn Button
114A4463A
