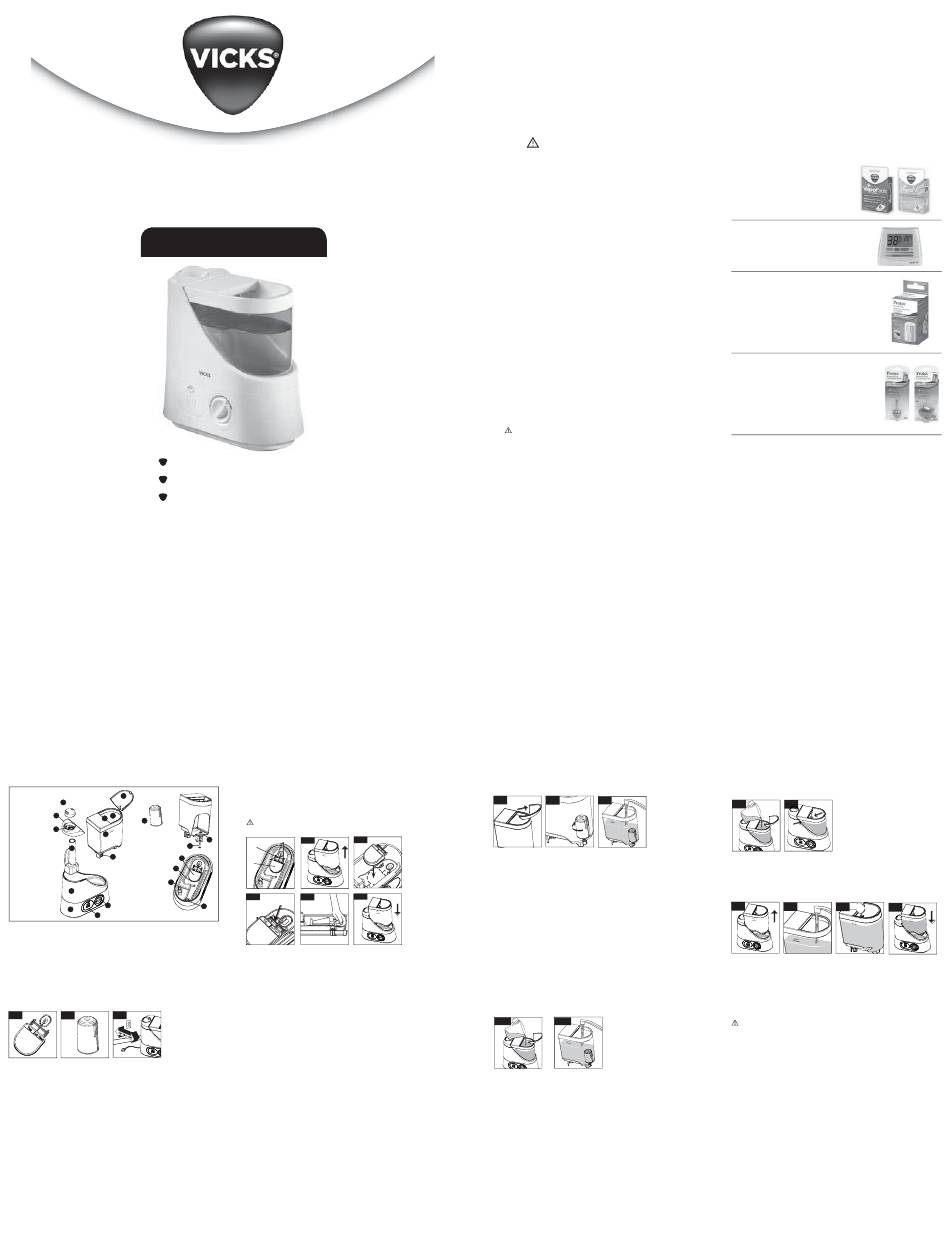

Vicks EasyFill VUL570 Series Use And Care Manual

EasyFill
Cool Mist Humidifier
Use and Care Manual
Adjustable mist control
No filters to replace
Easy to clean
This humidifier adds water vapor to the surrounding air helping the user to breathe better. If you have
any questions about the operation of your Vicks
Relations line at 1-800-VAPOR-1-2 (1-800-827-6712) or e-mail us at consumerrelations@kaz.com.
IMPORTANT!
READ AND SAVE THESE INSTRUCTIONS
Vicks EasyFill Cool Mist Humidifier (Model VUL570)
®
Components
6
1
1 Mist Outlet
2 5
2 Outlet Cover
4
14
3 Outlet Gasket
3
4 Tank Handle 7
5 Tank Opening
14 Demineralization
13
6 Tank Cover
Cartridge
8
(included in some models) 17
7 Water Tank
15 Plunger
8 Auto Shut-Off Float 19
16 Tank Gasket
9 Housing
18
17 Float Paddle
10 Base
9
18 Air Outlet
11 Power Knob
12 Scent Pad Door 19 Water Reservoir
11
10
13 Mist Chamber
20 Nebulizer
12
Getting to Know Your Humidifier
How It Works
Water is released into the Reservoir when the Float Paddle engages the Plunger at the bottom of the Water
Tank. A Nebulizer vibrates at ultrasonic frequency, breaking the water into a fine mist. The mist is quietly
propelled by a fan up a vertical Mist Chamber to the Mist Outlet where the cool, visible mist enters the room.
This humidifier will shut off when the water level is low or when the tank is removed from the base.
Setting Up Your Humidifier
Unpack the Humidifier
Step 1 Step 2 Step 3
Keep this instruction manual for reference.
1.
Remove packaging materials. Locate Float Paddle and set aside. This is required for operation.
2.
Locate the Demineralization Cartridge (included in some models) and set aside. This is
optional for operation.
3.
Remove twist tie and extend power cord. Place on a firm, level, water resistant surface
a minimum of 12 inches (30 cm) from walls.
4
®
EasyFill Cool Mist Humidifier, call our toll-free Consumer
VUL570
Setting Up Your Humidifier
(Continued)
Float Paddle Installation – required for humidifier to operate
This humidifier uses a float system to regulate the water flow from the Tank to the Reservoir. The Float
Paddle must be properly installed for the unit to operate. If not properly installed, water may not flow into
the Reservoir or it may leak from the Base. The Float Paddle is designed to be easy to install and remove.
CAUTION: Improper placement of the Float Paddle could result in leaking or water
not feeding to the Reservoir.
16 Step 2
Brackets Step 1
Float
15
Rod
Float
Paddle
Step 3 Step 5
Step 4
"Click"
20
1.
Remove Water Tank.
2.
Line up Float Paddle with the float paddle shape on the bottom of the Reservoir.
3.
Place Float Rod over both Brackets and press firmly until you hear it click into both Brackets.
4.
Pull gently up on the Float Rod to be sure it doesn't pop out of the Brackets.
5.
Replace Tank in Base.
If using the optional demineralization cartridge, see next section Installing Demineralization Cartridge.
Hard Water and White Dust
High mineral content in your water, also known as hard water, may cause a white mineral residue to
accumulate on surfaces in the room near the humidifier. This mineral residue is commonly referred to
as white dust. The higher the mineral content (hardness) of your water, the greater the potential that an
ultrasonic humidifier may produce white dust.
White dust is not a result of a defect or flaw in the humidifier. It is a result of the amount of minerals
suspended in the water you are using.
Important Safety Instructions
READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS
BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK AND INJURY
TO PEOPLE, INCLUDING THE FOLLOWING:
1.
The humidifier should always be placed
on a firm, flat, waterproof surface at least
four feet (1.2m) away from bedside, 12
inches (30 cm) from the wall and out of
reach of patients, children and pets. Be
sure the humidifier is in a stable position
and the power cord is away from heated
surfaces and out of the way to prevent the
humidifier from being tipped over.
2.
The humidifier should not be left
unattended in a closed room since air
could become saturated and leave
condensation in front of unit, on walls
and furniture. Leave room door partly
open. Do not aim Mist Outlet directly at
children, walls or furniture.
3.
Before using the humidifier, extend the
cord and inspect for any signs of damage.
Do not use the unit if the cord has been
damaged. Do not operate with power cord
coiled or with twist tie in place.
4.
The humidifier has a polarized plug (one
blade is wider than the other) as a safety
feature. This plug will fit into a polarized
outlet only one way. If the plug does not
fit fully into the outlet, reverse the plug.
If it still does not fit, contact a qualified
electrician. Do not attempt to defeat this
safety feature.
5.
CAUTION: To avoid fire or shock
hazard, plug the humidifier directly into
a 120V AC electrical outlet. To avoid risk
of fire, shock or personal injury, do not
use an extension cord or power strip.
2
Series
Setting Up Your Humidifier
Installing the Demineralization Cartridge - (Optional)
Step 1 Step 2
If you live in a hard water area, the use of distilled water or a demineralization cartridge with tap water
will help minimize the production of white dust. A Protec Demineralization Cartridge (Model # TWT500)
is included in some models. To install it:
1.
Remove Tank Cover.
2.
Press the Cartridge into the recessed area inside the Water Tank and twist to secure.
3.
Fill Tank with water according to instructions in the next section, Filling/Refilling the Water Tank.
Note: With a new, dry cartridge, there may be a delay of a few minutes while the water begins to
pass through the cartridge.
For best results, replace your Demineralization Cartridge every 20-30 fillings, or when you begin
to notice white dust forming. For your convenience, write the month and day you installed the new
cartridge on the top with a permanent marker.
To replace, twist the Cartridge and lift to remove. Dispose of in household trash. Replace with a new
Protec Demineralization Cartridge (Model # TWT500). (Not available in Canada).
Filling/Refilling the Water Tank
This humidifier holds a maximum of 1.25 gallons (4.7 liters) of water.
The Tank Cover is removable. You can fill the Tank with the Cover in place or with the Cover removed.
Be sure to replace the Cover before using the humidifier to keep objects and debris out of the water.
The Tank can be filled in two ways:
Option 1: At the Humidifier
Option 1
Both filling options can be performed with or without the Tank Cover in place.
Note: Ensure the Float Paddle has been placed correctly in the Reservoir before filling.
See Float Paddle Installation instructions if necessary
Manufacturer will not accept responsibility for property damage caused by water spillage.
5 6
Accessories
The following accessories work great with your humidifier:
Vicks VapoPads
BEFORE USING THIS HUMIDIFIER
(One Menthol VapoPad Sample Included)
Menthol scent: VSP-19, VSP19FP, VSP19VPC or VSP-19-CAN
Lavender/rosemary scent: VBR-5 and VBR-5FP (US only)
Use Vicks VapoPads with your humidifier for soothing vapors.
6.
The humidifier should always be unplugged
Enjoy 8 hours of soothing comfort per pad.
and emptied when not in operation or
while being cleaned. Shut off and unplug
humidifier before moving. Do not move or Humidity Monitor
tilt humidifier while it is in operation. Plug
(V70 or V70-CAN)
and unplug unit with dry hands. Never pull
Displays relative humidity and room temperature so you can maintain
by cord.
a comfortable humidity level in your home. The ideal humidity level
7.
Do not operate the humidifier without is between 40-60%.
water. Turn off and unplug unit when tank
is empty.
Protec
8.
Humidifier requires regular cleaning. Refer
(TWT500)
to and follow cleaning instructions.
This humidifier works with a Demineralization Cartridge that helps remove
9.
Do not operate outdoors; this humidifier is
minerals from the water. This helps prevent the build up of minerals
intended for indoor residential use only.
("white dust") that can occur in hard water areas. If you live in a hard water
10.
area, we recommend the use of this demineralization cartridge if not using
Do not cover or insert objects into any
distilled water. For best results, replace your Demineralization Cartridge every
openings on the unit.
11. 20-30 fillings, or when you begin to notice white dust forming. The effective
Do not block intake or output vents.
time will vary depending on the mineral content of the water used.
12.
Do not attempt to repair or adjust any
electrical or mechanical functions on this
humidifier. Doing so will void your warranty.
Protec Antimicrobial Cleaning Products
13.
Do not place in direct sunlight, high
(Protec Cleaning Ball: PC1 and PC2 or Protec Cleaning Fish: PC1F)
temperature areas or near computers or
The Protec Cleaning Products feature an antimicrobial, Aquastat
sensitive electronic equipment.
helps keep your humidifier cleaner, longer. Simply drop in the tank for
14.
Do not touch the nebulizer while the unit is
fresh, clean mist! Benefits of using these products include:
plugged in as burns could result.
• Kill up to 99% of odor causing bacteria
15.
Do not touch skin with exposed VapoPad ®
• Keep cleaning for 30 days
®
or place VapoPad on furniture, fabric,
• Contain no harmful chemicals
bedding or plastic.
16.
Do not add any medications (e.g. Kaz
Inhalant or Vicks VapoSteam ® or oils)
Accessories available at retailers and at www.vickshumidifiers.com.
into Mist Outlet, Base, Water Reservoir
or Water Tank.
SAVE THESE INSTRUCTIONS
Filling/Refilling The Water Tank
(Continued)
Option 1: To Fill Tank at the Humidifier
Step 3
Step 1
1.
2.
Option 2: To Fill Tank at the Sink
Step 1
1.
2.
NOTE: The Tank should be carried using two hands; one hand on the Handle located on top of the
Tank and other hand supporting the bottom of the Tank.
3.
Option 2: At the Sink
4.
Option 2
or dropping the Water Tank could result in damage to the Tank that may cause leaking.
®
® Demineralization Cartridge (included in some models)
®
, that
(Continued)
Step 2
Pour cool water from a pitcher or jug directly into Water Tank.
Fill to the MAX line marked on the outside of the Tank or to the MAX indicator on the
Tank Cover. Replace the Tank Cover if it was removed for filling.
Step 2 Step 3
Step 4
Grasp Tank Handle and lift Water Tank to remove from Base. Carry Tank to sink.
Fill Tank with cool water to the MAX line marked on the outside of the Tank or to the MAX
indicator on the Tank Cover. Replace the Tank Cover if it was removed.
Carry Water Tank back to humidifier.
Replace the full Tank on the Base.
CAUTION: Use care when handling Water Tank to avoid unnecessary impact. Banging
3
