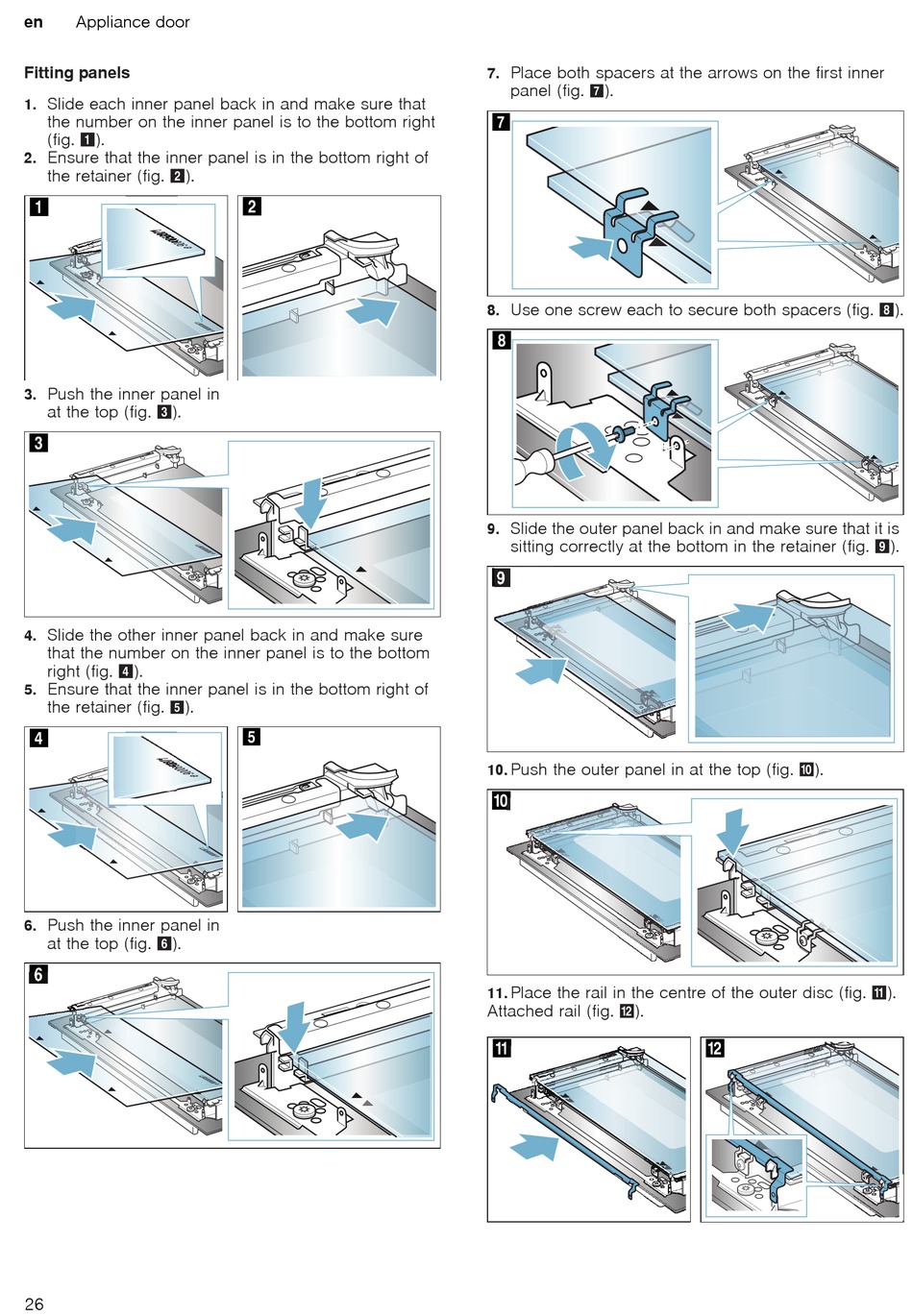

Appliance door
Fitting panels
Slide each inner panel back in and make sure that
1.
the number on the inner panel is to the bottom right
(fig.
!
).
Ensure that the inner panel is in the bottom right of
2.
the retainer (fig.
"
).
Push the inner panel in
3.
at the top (fig.
#
).
Slide the other inner panel back in and make sure
4.
that the number on the inner panel is to the bottom
$
right (fig.
).
Ensure that the inner panel is in the bottom right of
5.
the retainer (fig.
%
).
Push the inner panel in
6.
at the top (fig.
&
).
26
Place both spacers at the arrows on the first inner
7.
panel (fig.
'
).
Use one screw each to secure both spacers (fig.
8.
Slide the outer panel back in and make sure that it is
9.
sitting correctly at the bottom in the retainer (fig.
Push the outer panel in at the top (fig.
10.
Place the rail in the centre of the outer disc (fig.
11.
Attached rail (fig.
,
).
(
).
)
).
*
).
+
).
