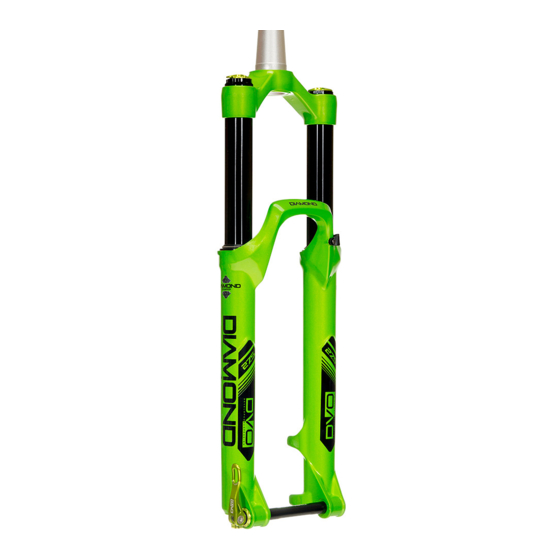

Summary of Contents for DVO DIAMOND Series
- Page 1 Suspension Set-Up Guide...
- Page 2 34 mm (1.3 in) 180 mm (7.1 in) 27 mm (1.1 in) 36 mm (1.4 in) 203 mm (8.0 in) 30 mm (1.2 in) 41 mm (1.6 in) For detailed instructions and videos, visit DVO Tech: tech.dvosuspension.com/setup Suspension Set-Up Guide...
- Page 3 PRESSURE. 120-139 54-63 Plush Firm 140-159 64-72 Plush Firm DVO Suspension requires a different mindset to properly adjust and get right. That’s the idea of our products, 160-179 73-81 Plush Firm 180-199 82-90 Plush Firm to do things differently and in a better way. In other suspension products, riders can be timid to adjust the air...
- Page 4 Step 3: OTT Setting What is OTT? OTT is a DVO Exclusive Performance Feature that delivers amazing traction, comfort & control matching a wide range of OTT stands for “Off The Top” and it does just that. Allow you to tune how your fork feels off the riders weights &...
- Page 5 When you are climbing, you can switch to “FIRM” to give you the firmest set- ting and best pedaling platform. Don’t forget to change this back when you start to descend! For detailed instructions and videos, visit DVO Tech: tech.dvosuspension.com/setup Suspension Set-Up Guide...
- Page 6 Soft Firm Air Pressure Compression (Clicks) (psi) 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 For detailed instructions and videos, visit DVO Tech: tech.dvosuspension.com/setup Suspension Set-Up Guide...
- Page 7 205x62.5 15.5-19 mm 25-30% 170-190 77-86 Plush Firm 190-210 86-95 185x52.5 13-16 mm 25-30% Plush Firm 210-230 95-104 Plush Firm 165x42.5 10.5-13 mm 25-30% 230+ 104+ Plush Firm For detailed instructions and videos, visit DVO Tech: tech.dvosuspension.com/setup Suspension Set-Up Guide...
- Page 8 150-170 PLUSH SUPPORTIVE Fast Slow Sandy DH 180-200 SUPPORTIVE FIRM Fast Slow Sandy Climb 210-230 PLUSH SUPPORTIVE Fast Slow Mud DH 240-260 Fast Slow SUPPORTIVE FIRM Mud Climb For detailed instructions and videos, visit DVO Tech: tech.dvosuspension.com/setup Suspension Set-Up Guide...
- Page 9 The bladder is charged with a high PSI to push back against the Negative Side oil which creates pressure in the system. As the shock is compressed, oil flows through the system and starts to compress the bladder. For detailed instructions and videos, visit DVO Tech: tech.dvosuspension.com/setup Suspension Set-Up Guide...
- Page 10 ENGLISH ENGLISH Notes For detailed instructions and videos, visit DVO Tech: tech.dvosuspension.com/setup Suspension Set-Up Guide...
- Page 11 DVO SUSPENSION INC. 29033 Ave. Sherman Suite 203 Valencia CA, 91355 USA...
