 Solenoid Valve for Capacity Control
Coil ratings
Piping joint
Port size
Maximum Operating
pressure differential required
Note: The pressure value represents the gauge pressure.
Solenoid valves for capacity control are indoor specifications. Make sure not to drop
●
dew condensation water onto the solenoid valves by installing appropriate thermal
protection on the suction piping to the compressor.
Screw Compressor i-series

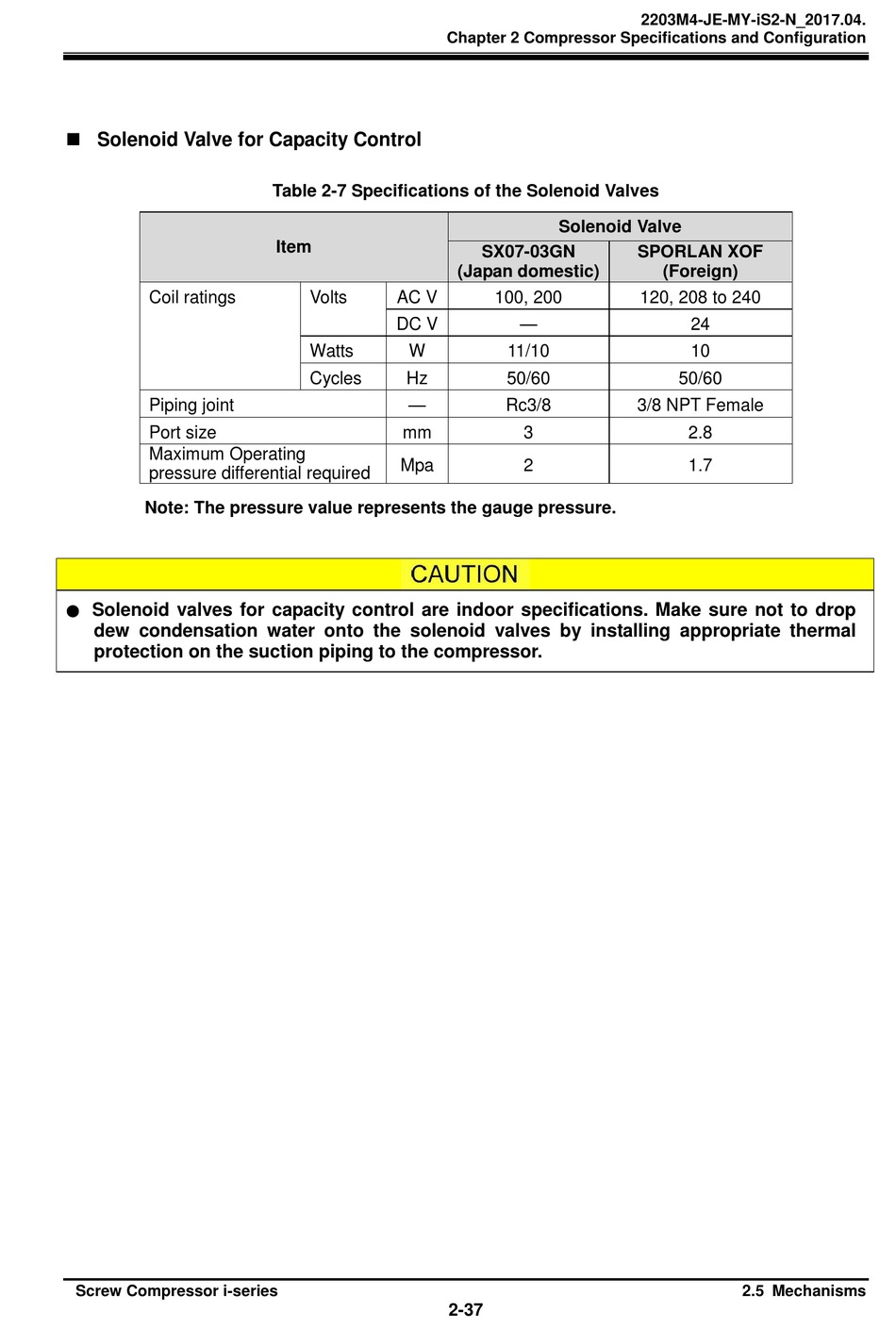

Table 2-7 Specifications of the Solenoid Valves
Item
Volts AC V
DC V
Watts W
Cycles Hz
—
mm
Mpa
Chapter 2 Compressor Specifications and Configuration
Solenoid Valve
SX07-03GN
(Japan domestic)
100, 200
—
11/10
50/60
Rc3/8
3
2
2-37
2203M4-JE-MY-iS2-N_2017.04.
SPORLAN XOF
(Foreign)
120, 208 to 240
24
10
50/60
3/8 NPT Female
2.8
1.7
2.5 Mechanisms
