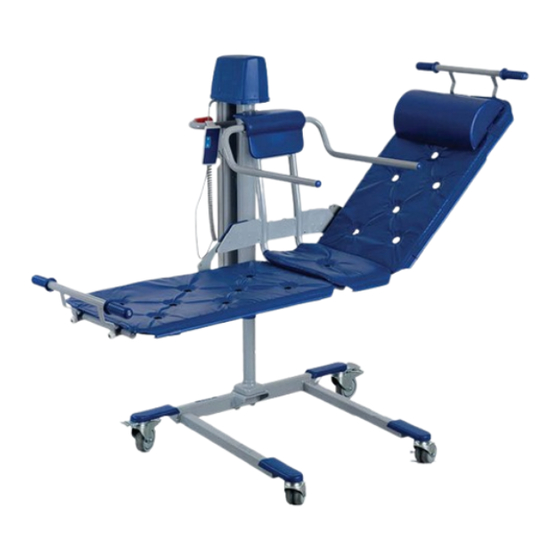

Lift bath trolley
Hide thumbs Also See for Bolero:

Advertisement

Bolero
Instructions for Use
...with people in mind
04.CE.01_16GB • 07/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bolero and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arjohuntleigh Bolero

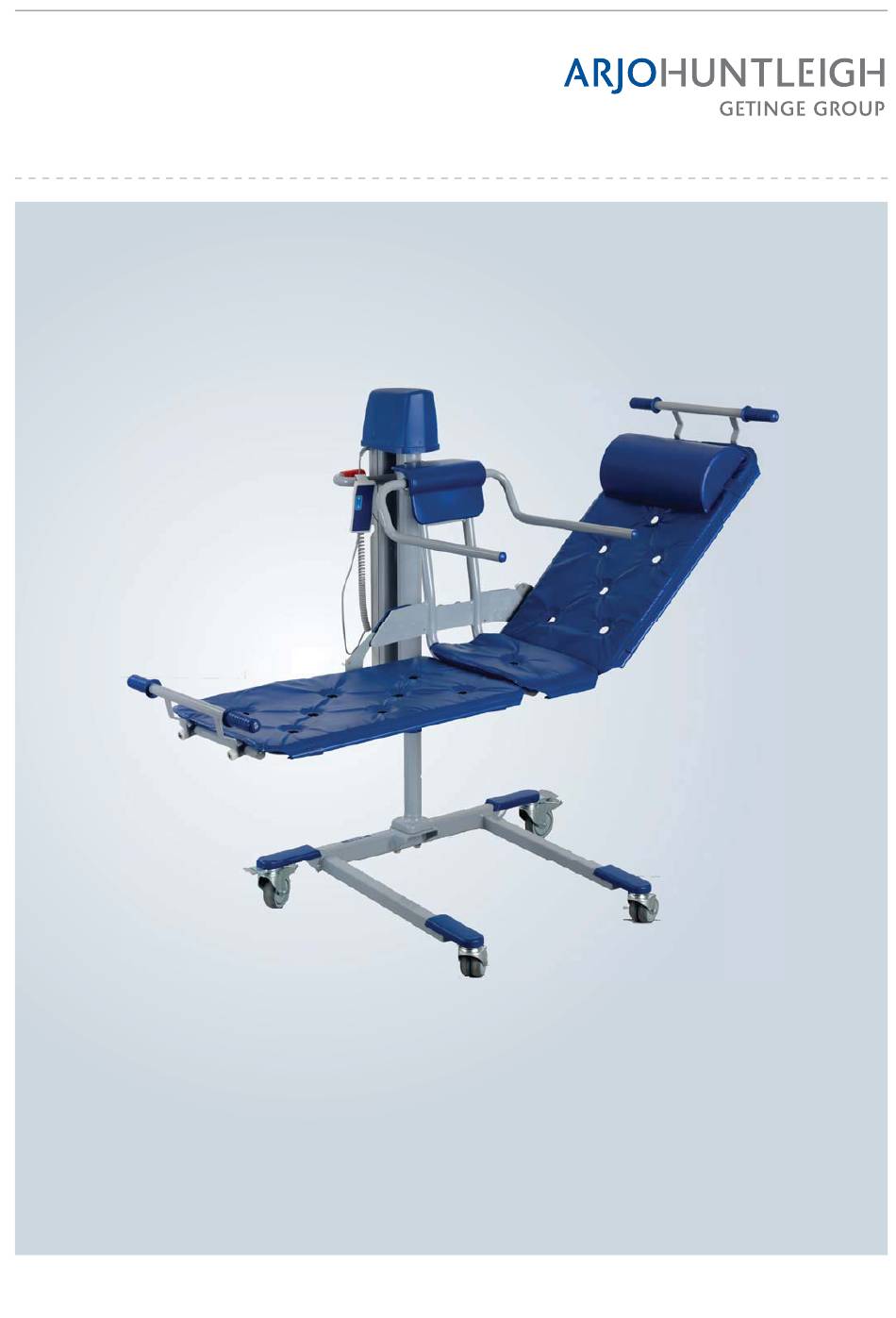

  • Page 1 Bolero Instructions for Use ...with people in mind 04.CE.01_16GB • 07/2017...
  • Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh AB 2014. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or in...
  • Page 3: Table Of Contents

    Contents Foreword ................... 4 Intended Use ................5 Safety Instructions ..............6 Preparations................7 Parts Designation ..............8 Product Description/Functions ..........10 Battery Charger ..............10 Manual Raising and Lowering ..........10 Electric Raising and Lowering ..........10 Backrest and Leg Support ........... 11 Handlebars ................
  • Page 4: Foreword

    Foreword Definitions in this IFU Thank you for purchasing ArjoHuntleigh Equipment Your Bolero® lift bath trolley is part of a series of WARNING quality products designed especially for hospitals, nursing homes and other health care use. Means: Safety warning. Failure to understand and obey Please contact us if you have any questions about the this warning may result in injury to you or to others.
  • Page 5: Intended Use

    Instructions for Use (IFU). the equipment lifetime according to information in this The Bolero should only be used for the purpose IFU. specified in its IFU. Any other use is prohibited.
  • Page 6: Safety Instructions

    To avoid falling, make sure that the patient is positioned in accordance with this IFU. NOTE All materials used in the Bolero lift bath trolley WARNING complies with established biocompatibility standards and have been tested accordingly To avoid explosion or fire, never use the (ISO 10993-5).
  • Page 7: Preparations

    Actions Before the First Use (4 steps) (9 steps) 1 Check that all parts of the Bolero lift bath trolley 1 Visually check the package for damage. are in place. Compare to section Parts 2 The package should be recycled according to Designation on page 8.
  • Page 8: Parts Designation

    Parts Designation 1 3-part stretcher and frame 2 3-part mattress 3 Pillow 4 Transfer handle 5 Footrest 6 Locking device for backrest 7 Manoeuvring handle 8 Hand control (Electrical) 9 Handle bar 10 Battery (Electrical) 11 Pillar (Electrical) 12 Castor brake (all four castors) 13 Lowering button (Hydraulic) 14 Hand pump for raising (Hydraulic) 15 Pillar (Hydraulic)
  • Page 10: Product Description/Functions

    Fig.4 Unhook the hand control from its holder. (See Fig. 4) • To raise the Bolero lift bath trolley, press the “up” arrow on the hand control button. • To lower the Bolero lift bath trolley press the “down” arrow.
  • Page 11: Backrest And Leg Support

    • The Bolero lift bath trolley is symmetrical so that either end can be used as the backrest, depending on the orientation of the patient’s bed. To change the orientation of the trolley simply move the pillow to the other end.
  • Page 12: Storage

    Storage Fig. 1 • When not used, store the Bolero lift bath trolley with the backrest and footrest (A) in their upper positions. (See Fig. 1) • Raise the backrest and footrest. Check that the catches (B) Fig. 2 are in place and that the rests are locked. (See Fig. 2) Adjustment of Stretcher Length Fig.
  • Page 13: Safety Belts

    The Bolero lift bath trolley has two safety belts (chest safety belt and hip safety belt) as standard equipment. (See Fig. 1) (7 steps) 1 Attach the safety belts before the patient is seated in the Bolero Fig. 2 lift bath trolley. Apply the safety belts by placing the eyelet over the knob.
  • Page 14 Adjust the safety belts Fig. 4 3 Pull the fastening clips (A) and (B) apart by twisting the smaller fastening clip (A) slightly upwards.(See Fig. 4) Fig. 5 4 Loosen the safety belt by pulling the inner strap at the side (A) and at the same time lifting the larger fastening clip (B).
  • Page 15: Brakes

    (See Fig. 1) Emergency Stop Fig. 2 If, for any reason, the Bolero lift bath trolley does not respond to the control buttons, you can quickly stop lift movement by pressing the button on the battery and disconnect it. (See Fig. 2) Contact your local ArjoHuntleigh representative before re-using the Bolero lift bath trolley.
  • Page 16: Scale (Optional)

    3 Fold the side support below the stretcher. (See Fig. 4) Fig. 4 4 Fasten the side support on the other side of the Bolero lift Fig. 5 bath trolley by firmly pushing it into the holder. (See Fig. 5)
  • Page 17: Transfer The Patient

    Move the Bolero lift bath trolley in over the bed as close as possible to the patient and lower so that it is resting firmly Fig. 3 on the bed.
  • Page 18 To avoid entrapment, make sure to keep the patients hair, arms and feet close to the body and use designated grab supports during any movement. Release the castor brakes and pull the Bolero lift bath trolley out from the bed. WARNING Fig. 5...
  • Page 19: To Bed

    Fig. 6 obstacles. 1 Raise the Bolero lift bath trolley to a height where it is possible to move it in over the bed. 2 Move the Bolero lift bath trolley in over the bed.
  • Page 20: Bath The Patient

    IFU. 1 Undress the patient. Fig. 3 2 Raise the Bolero lift bath trolley to clear the edge of the bathtub and move the patient in over the bathtub. (See Fig. 1) 3 Apply brakes on all castors. (See Fig. 2) 4 Raise the bathtub to a comfortable height, if bathtub is adjustable.
  • Page 21: Cleaning And Disinfection Instructions

    Cleaning and Disinfection Instructions Accessories for disinfecting Bolero Only use ArjoHuntleigh branded disinfectant. • Protective gloves If you have any questions regarding disinfecting the • Protective glasses equipment, or wish to order disinfectant, contact • Spray bottle with disinfectant (detergent and ArjoHuntleigh Customer Service.
  • Page 22 Removing visual residue (step 1-3 of 15) 1 Remove the mattress and safety belts, and place in the bottom of the bathtub. 2 Position the Bolero lift bath trolley over the bathtub and lower it down. Fig. 1 3 Clean: •...
  • Page 23 Disinfection (step 10-15 of 15) 10 Spray with disinfectant on: • the Bolero lift bath trolley • all removed parts 11 Soak a cloth in disinfectant and wipe all other areas such as chassis. 12 Allow a disinfection time according to the instructions on the disinfectant bottle label.
  • Page 24: Battery Instruction

    Battery Instruction Storage of Battery WARNING • The battery is delivered charged but we recommend you to recharge the battery when To avoid bodily injury, do NOT crush, received due to a slow self discharge. puncture, open, dismantle or otherwise mechanically interfere with the battery.
  • Page 25 Intentionally left blank...
  • Page 26: Care And Preventive Maintenance

    Care and Preventive Maintenance The Bolero lift bath trolley is subject to wear and tear, and the following actions must be performed when specified to make sure that the product remains within its original manufacturing specification. WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule.
  • Page 27 Bolero knowledge following the instructions in this IFU. Every day • Disinfect. The Bolero lift bath trolley has to be disinfected immediately after every use. ArjoHuntleigh disinfectants should be used in recommended concentrations as labelled on the disinfection bottle. See section Cleaning and Disinfection Instructions on page 21.
  • Page 28 Perform a functionality test. Fig. 6 Test up/down motion by pressing up/down button. Test emergency Hi/Low. Yearly The Bolero lift bath trolley has to be serviced according to the section Preventative Maintenance - Qualified Personnel on page 29 Fig. 7...
  • Page 29 Preventative Maintenance - Qualified Personnel WARNING To avoid injury and/or unsafe product, the maintenance activities must be carried out at the correct frequency by qualified personnel using correct tools, parts and knowledge of procedure. Qualified personnel must have documented training in maintenance of this device.
  • Page 30: Troubleshooting

    Troubleshooting PROBLEM ACTION The lift continues to raise or descend after the Activate the red emergency stop button and pull hand control button is released. the battery out - remove the patient from the lift and contact qualified personnel. The lift does not raise or descend when the hand 1 Make sure that the battery is fully engaged in control button is pressed.
  • Page 31 Intentionally left blank...
  • Page 32: Technical Specifications

    Bolero Model CEB 6000 (Hydraulic) 69 kg (151 lbs) Bolero Model CEB 60XX (Electric) 78 kg (171 lbs) Bolero Model CEB 6100 (Hydraulic, paediatric) 68 kg (149 lbs) Bolero Model CEB 61XX (Electric, paediatric) 76 kg (167 lbs) Maximum total weight of lift (Lift + Patient)
  • Page 33 System2000 Rhapsody, System 2000 Primo, following ArjoHuntleigh products: System2000 PrimoFerro. Bolero integrates with generic hospital beds: with a minimum of bed to floor clearance of 150 mm No other combinations are allowed Transport, storage and operation (Applies to all Bolero models except the chargers) Ambient temperature range -20 °C to +70 °C (-4°...
  • Page 34: Dimensions

    Dimensions Hydraulic mm (inches) A minimum 515 (20 1/4”) gives B minimum 1150 (45 1/4”) A maximum 1015 (40”) gives B maximum 1650 (65”) Stroke: 500 (19 5/8”) 362 (14 1/4”) 732 (28 7/8”) 909,3 (35 3/4”) 985 (38 3/4”) 985 (38 3/4”) 499 (19 5/8”) 643 (25 3/8”)
  • Page 35 Electric mm (inches) A minimum 515 (20 1/4”) gives B minimum 1165 (45 7/8”) A maximum 1080 (42 1/2”) gives B maximum 1730 (68 1/8”) Stroke: 565 (22 1/4”) 362 (14 1/4”) 732 (28 7/8”) 910 (35 7/8”) 985 (38 3/4”) 985 (38 3/4”) 499 (19 5/8”) 643 (25 3/8”)
  • Page 36 Paediatric Hydraulic mm (inches) A minimum 515 (20 1/4”) gives B minimum 1150 (45 1/4”) A maximum 1015 (40”) gives B maximum 1650 (65”) Stroke: 500 (19 5/8”) 666 (26 1/4”) 436 (17 1/8”) 666 (26 1/4”) 735 (28 7/8”) 735 (28 7/8”) 500 (19 5/8”) 641 (25 1/4”)
  • Page 37 Paediatric Electric mm (inches) A minimum 515 (20 1/4”) gives B minimum 1165 (45 7/8”) A maximum 1080 (42 1/2”) gives B maximum 1730 (68 1/8”) Stroke: 565 (22 1/4”) 454 (17 7/8”) 213 (8 3/8”) 659 (26”) 733 (28 7/8”) 733 (28 7/8”) 499 (19 5/8”) 643 (25 3/8”)
  • Page 38: Labels

    Labels Label explanation A battery is the power source of this equipment. Attention Important user information for Label correct use. Battery Label States safety and environmental Separate electrical and electronic information for the battery. components for recycling in accordance with the European Data Label States technical performance and Directive...
  • Page 39: List Of Standards And Certificates

    Attention Label Battery Label Applied Part Identification Label Data Label Hydraulic Data Label Electrical List of Standards and Certificates STANDARD/CERTIFICATE DESCRIPTION EN/IEC 60601-1:2005 Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance AMD1:2012 ANSI/AAMI ES60601-1 (2005) Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance AMD 1 (2012)
  • Page 40: Electromagnetic Compatibility

    EMC information below. The Bolero lift bath trolley is intended for use in the electromagnetic environment specified below. The customer or the user of the Bolero lift bath trolley should assure that it is used in such an environment. WARNING Stacking or placing other electrical equipment next to this device is not recommended, it can interfere with the equipment’s operation and safety.
  • Page 41 RF communications equipment (transmitters) and the Bolero lift bath trolley by maintaining a distance of not less than 1 meter to any part of the Bolero lift bath trolley, including cables, if the transmitters output power rating exceeds 1 W.
  • Page 42: Parts And Accessories

    Parts and Accessories SEAL Side support Battery and Charger 24 V Scale CEA1000-03 CFA1000-03-F For disinfectant contact Safety Belt the ArjoHuntleigh local CEA1400-01 representative...
  • Page 43 AUSTRALIA FRANCE POLSKA ArjoHuntleigh Pty Ltd ArjoHuntleigh SAS ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
  • Page 44 Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjohuntleigh.com ArjoHuntleigh is a world-leading provider of integrated products and solutions that improve the lives of patients and residents with reduced mobility. We help healthcare facilities deliver wellness and effective everyday care, early mobilisation, safe patient handling, venous thromboembolism prevention, pressure injury prevention, hygiene routines, bariatric care and diagnostics.
