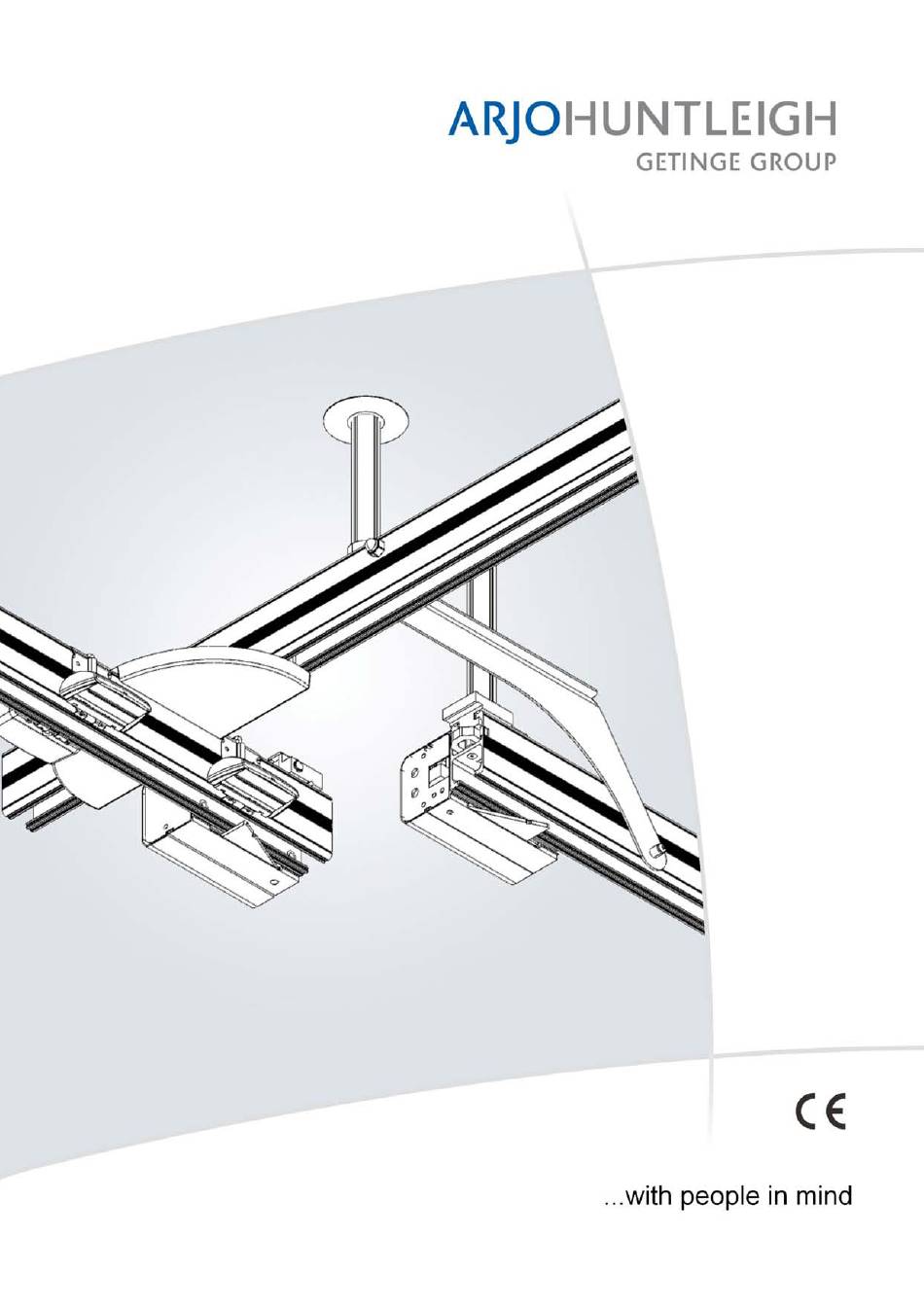

KWIKtrak Gate
Instruction for Use
001-11502-EN rev. 6 • June 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kwiktrak Gate and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arjohuntleigh Kwiktrak Gate

  • Page 1 KWIKtrak Gate Instruction for Use 001-11502-EN rev. 6 • June 2013...
  • Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2013. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the...
  • Page 3: Table Of Contents

    Homecare Environment Considerations ....................3 Symbols Used ..........................4 General Symbols ............................. 4 Product Description / Labels ......................5 How to use the KWIKtrak Gate ....................6 Crossing the Gate ............................ 6 Using the Gate System ..........................6 Troubleshooting ..........................8 Care and Maintenance ........................8 Preventive Maintenance Schedule ......................
  • Page 5: Foreword

    Do not attempt to expose, service or repair the CAUTION: KWIKtrak Gate system . If any unit is defective, Means: Failure to follow this instruction may contact your local ArjoHuntleigh vendor. cause damage to the product(s).
  • Page 6: Safety Instructions

    The operating life of this equipment corresponds Intended Use directly to the safe operating time period before The KWIKtrak Gate system is a track accessory a complete overhaul is required. Aging of the to be used with the KWIKtrak track system and...
  • Page 7: Safe Working Load

    Environmental Advice The KWIKtrak Gate system has been designed When disposing of any items associated with to be used with ArjoHuntleigh ceiling lifts with a the product, contact the appropriate local safe working load of 272 kg (600 lb) or less.
  • Page 8: Symbols Used

    Symbols Used General Symbols This symbol points out the manufacturer’s name and address. May also point out manufacturing date. This symbol means that the product complies with the medical device directive 93    /     4 2    /     E EC. This symbol points out ISO 15223 3.15 the manufacturer’s...
  • Page 9: Product Description / Labels

    Product Identi cation Warning ! Product Identi cation Warning ! Fig. 1 Legend 1) KWIKtrak Gate fixed track box 2) Energy reserve box 3) KWIKtrak Gate motor box 4) Double contact box 5) KWIKtrak Gate DF Locker 6) KWIKtrak Gate clamp block...
  • Page 10: How To Use The Kwiktrak Gate

    How to use the KWIKtrak Gate Crossing the Gate WARNING: If you see the warning symbol appearing at the end of the track, and the mobile track is not aligned with the fixed track, DO NOT use the gate system.
  • Page 11 NOTE: The ceiling lift must always be routed slowly under an activation station. If the lift is moved too quickly, it may not be detected by the station and the gate’s position would remain unchanged. To close the gate, move the lift slowly under activation station #2. How to use the KWIKtrak Gate...
  • Page 12: Troubleshooting

    Care and Maintenance Preventive Maintenance Schedule The KWIKtrak Gate is subject to wear and tear, and the following actions must be performed when specified to ensure that the product remains within its original manufacturing specification. WARNING: The points on this checklist are the minimum the manufacturer recommends. In some cases more frequent inspections should be carried out.
  • Page 13: Technical Specifications

    KWIKtrak Gate system and should be kept at least 2.3 m away from it. Cables from potentially strong sources of electromagnetic fields should not be placed near the unit.
  • Page 14: Product Dimensions

    Product Dimensions Dimensions Track “B” Track “A” Tracks Height 200 mm H140 253 mm H180 293 mm H140 H140 306 mm H140 H180 346 mm H180 H180 386 mm Fig. 5 Product Dimensions...
  • Page 15: Electromagnetic Compatibility

    Electromagnetic Emissions - For all Equipment and Systems The KWIKtrak Gate is intended for use in the electromagnetic environment indicated below. The customer or the user of the KWIKtrak Gate should assure that it is used in such an environment. Emissions test...
  • Page 16: Electromagnetic Immunity

    Electromagnetic Immunity - For all Equipment and Systems The KWIKtrak Gate is intended for use in electromagnetic environment specified below. The customer or the user of the KWIKtrak Gate should assure that it is used in such an environment. IEC 60601 test...
  • Page 17 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the KWIKtrak Gate is used exceeds the applicable RF compliance level above, the KWIKtrak Gate should be observed to verify normal operation.
  • Page 18 The KWIKtrak Gate is intended for use in electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the KWIKtrak Gate can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communication equipment (transmitters) and the KWIKtrak Gate as recommended below, according to the maximum output power of the communications equipment.
  • Page 19 AUSTRALIA FAR EAST POLSKA ArjoHuntleigh Pty Ltd ARJO Far East Limited ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth street Unit 3A, 4/F., block B Hoi Luen ul. Ks Piotra Wawrzyniaka 2 O’Connor Industrial Centre PL 62-052 KOMORNIKI (Poznan) AU-6163 Western Australia...
  • Page 20 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions.
