MadgeTech RTDTemp101A User Manual

MadgeTech RTDTemp101A User Manual

Temperature data logger with 10 year battery life

Advertisement

Quick Links

Description
Temperature Sensor**
18 Ω to 400 Ω, –200 °C to +850 °C (-328 °F to +1562 °F)
Temperature Range
0.0001 Ω, 0.01 °C (0.018 °F) (Probe Dependent)
Temperature Resolution
±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
Calibrated Accuracy
1,340,000 readings software configurable memory wrap
Memory
666,000 readings in multiple start/stop mode
Wrap Around
Reading Rate
1 reading every second up to 1 reading every 24 hours
LED Indicator
Alarm
Required Interface Package
Baud Rate
10 years typical at a 15 minute reading rate
Battery Life
Graph display of the device recording in a 25 °C environment.
Operating Environment
Material
Dimensions
1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm)
Weight
Approvals
Battery Warning
WARNING: FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT RECHARGE, DISASSEMBLE,
HEAT ABOVE 100 °C (212 °F), INCINERATE, CRUSH, OR EXPOSE CONTENTS TO WATER.
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
6 Warner Road
Phone 603.456.2011
www.madgetech.com
RTDTemp101A
External 100 Ω RTD (Sold Separately)
(Probe Dependent)
Yes
Red & Green
Yes
IFC200
115,200
-40 °C to +80 °C (-40 °F to +176 °F),
0 %RH to 95 %RH non-condensing
ABS plastic
0.8 oz (24 g)
CE
Warner, NH 03278
l
Fax 603.456.2012
l
info@madgetech.com
l
DOC-1216035-00 REV 9 2015.07.01
Product User Guide

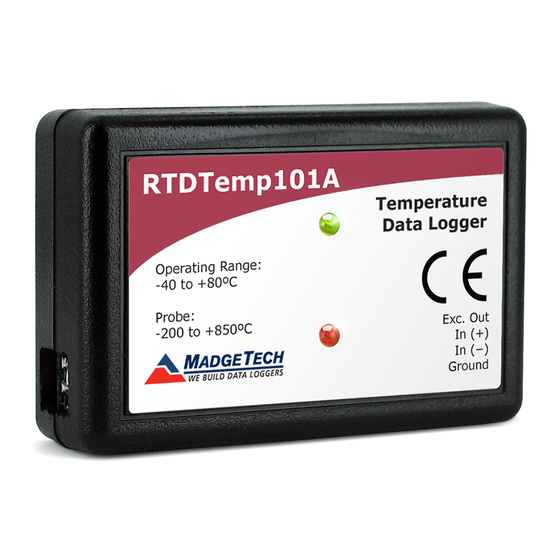

RTDTemp101A
Temperature Data Logger with 10 Year Battery Life
RTDTemp101A
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
To view the full MadgeTech product line,
visit our website at
www.madgetech.com.
