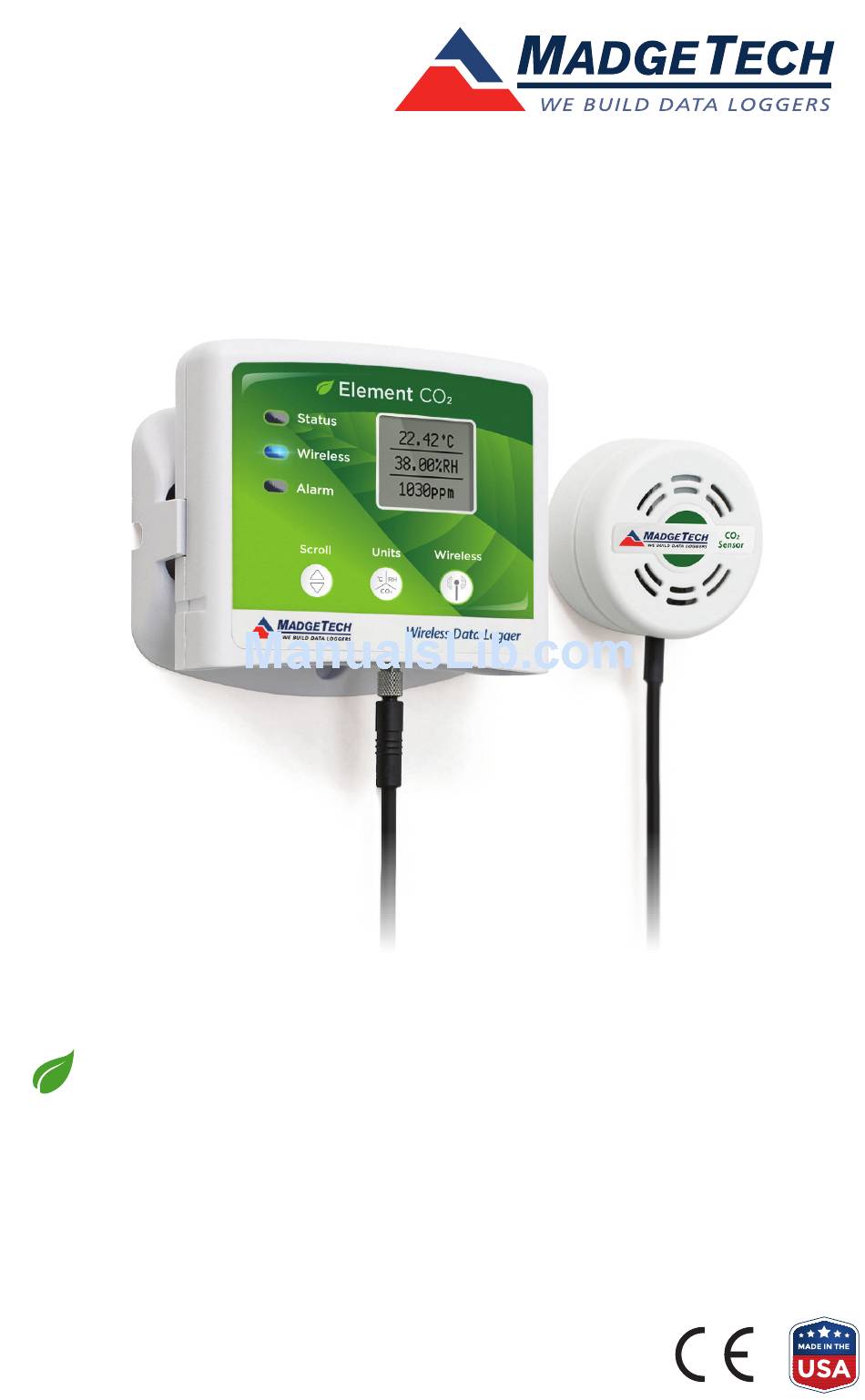

- Page 1 Element CO2 Wireless CO2, Humidity & Temperature Data Logger Product User Guide...
-
Page 2: Table Of Contents
Activating & Deploying the Data Logger....6 Channel Programming ..........6 Product Maintenance ..........7 RMA Instructions ............7 Troubleshooting ............8 Compliance Information .......... 9 General Specifications ........10-11 To view the full MadgeTech product line, visit our website at www.madgetech.com. -
Page 3: Quick Start Steps
Connect the RFC1000 wireless transceiver (sold separately) to the Windows PC with the provided USB cable. Push and hold the wireless button on the Element CO2 for 5 seconds to activate wireless communication. The display will confirm “Wireless: ON” and the blue LED will blink every 15 seconds. -
Page 4: Product Overview
Users have the ability to manually reset the statistics within the device to zero without needing to use the MadgeTech 4 Software. Any data recorded up to that point is recorded and saved. To apply the manual reset, press and hold the scroll key down for three seconds. -
Page 5: Software Installation Guide
Transmit real-time data to the MadgeTech Cloud Services platform via the MadgeTech Data Logger Software running on a central PC or transmit directly to the MadgeTech Cloud without a PC using the MadgeTech RFC1000 Cloud Relay (sold separately). -
Page 6: Activating & Deploying The Data Logger
Using the provided USB cable, plug the data logger into the PC. Open the MadgeTech 4 Software. Locate and select the data logger in the Connected Devices panel. In the Device tab, click the Properties icon. Under the Wireless tab, select a desired channel (11 - 25) that will match with the RFC1000. -
Page 7: Product Maintenance
Recalibration CO2 Zero Reset: The Element CO2 is equipped with a self-calibrating sensor that can be reset by the user at any time using the CO2 Zero Reset feature. The reset feature adjusts the calibration of the CO2 channel by taking the current reading of the sensor and “zeroing” it to 400 ppm (outside air concentration). -
Page 8: Troubleshooting
Product User Guide Troubleshooting Why is the wireless data logger not appearing in the software? If the Element CO2 doesn’t appear in the Connected Devices panel, or an error message is received while using the Element CO2, try the following: »... -
Page 9: Compliance Information
Element CO2 Compliance Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 10 Product User Guide Carbon Dioxide (CO2) Measurement Range 0 ppm to 200,000 ppm Measurement Resolution 10 ppm Calibrated Accuracy ±70 ppm + 5% of range (add 8 ppm per day from reset) Sensor Warm Up Time 30 Seconds Humidity Measurement Range 0 %RH to 95 %RH Measurement Resolution 0.08 %RH...
-
Page 11: General Specifications
Stand-alone Operation: USB to mini USB Computer Interface Wireless Operation: RFC1000 wireless transceiver PC Compatibility MadgeTech 4: Windows 10, 8, 7, Vista, Window XP with SP3 MadgeTech Cloud Services Compatible 0 °C to +55 °C (+32 °F to +131 °F) - Page 12 Refer to the Troubleshooting section of this document. » Visit our Knowledge Base online at www.madgetech.com/kbase. » Contact our friendly Customer Support Team at (603) 456-2011 or support@madgetech.com. MadgeTech 4 Software Support: » Refer to the built-in help section of the MadgeTech 4 Software.
