Product User Guide
QuadTemp
4-Channel Thermocouple Based Temperature Data Logger
OctTemp
8-Channel Thermocouple Based Temperature Data Logger
QuadTemp and OctTemp
*Thermocouple Plugs/Probes Sold Separately
*Thermocouple Plugs/Probes Sold Separately
To view the full MadgeTech product line,
visit our website at
www.madgetech.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QuadTemp and is the answer not in the manual?

Questions and answers

Summary of Contents for MadgeTech QuadTemp

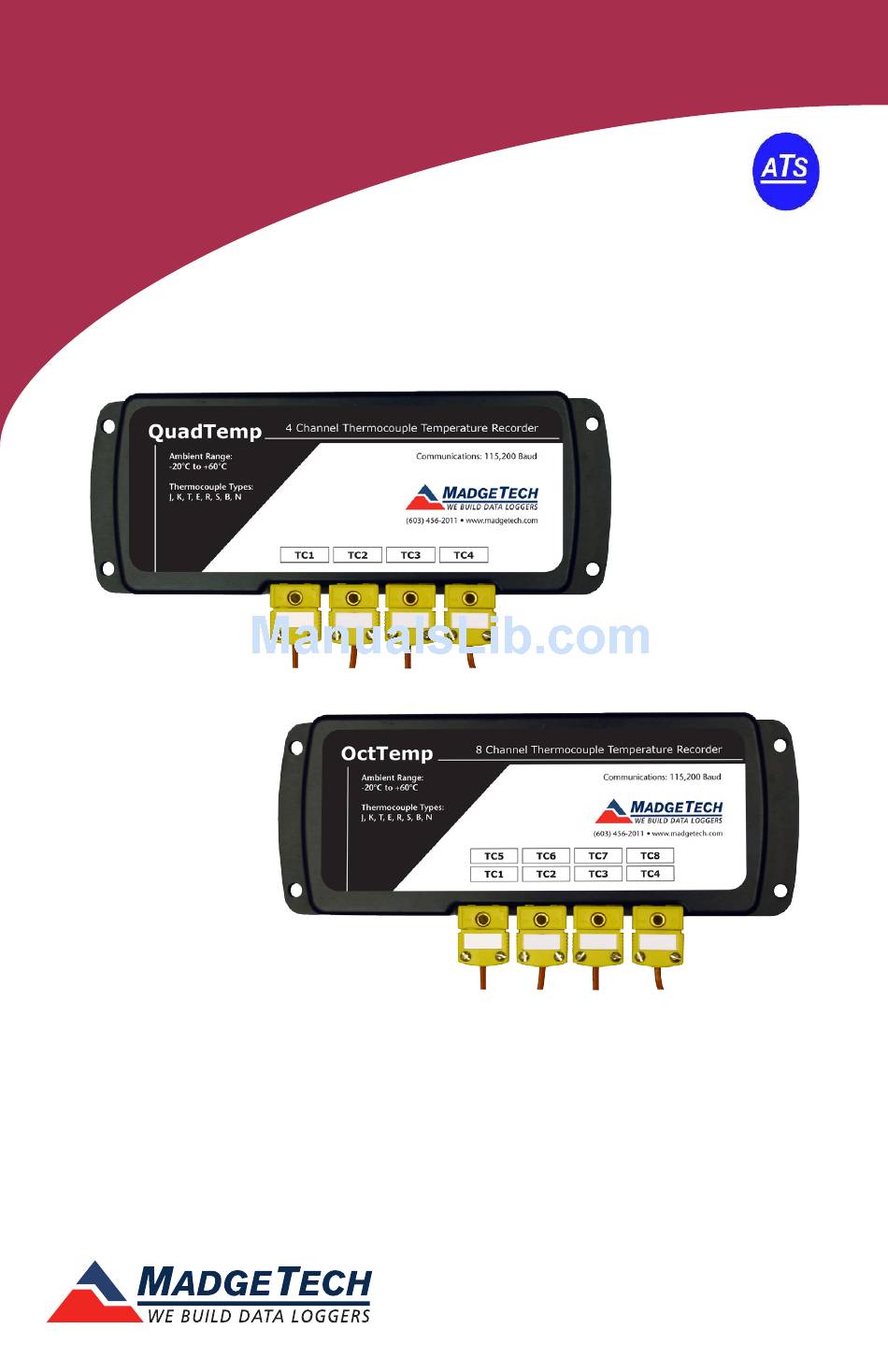

  • Page 1 Product User Guide QuadTemp and OctTemp *Thermocouple Plugs/Probes Sold Separately *Thermocouple Plugs/Probes Sold Separately QuadTemp 4-Channel Thermocouple Based Temperature Data Logger OctTemp 8-Channel Thermocouple Based Temperature Data Logger To view the full MadgeTech product line, visit our website at www.madgetech.co.nz...
  • Page 2: Table Of Contents

    Product Overview .......... 2 Additional Features & Operation ....3-4 Product Maintenance ........5 Recalibration ..........5 RMA Instructions ..........5 General Specifications ........6-9 Support ........Back Cover To view the full MadgeTech product line, visit our website at www.madgetech.co.nz...
  • Page 3: Quick Start Steps

    Insert the Software USB Stick in an open USB port. If the autorun does not appear, locate the drive on the computer and double click on Autorun.exe. Follow the instructions provided in the Wizard. Install the MadgeTech 4 Software and USB Drivers onto a Windows PC.
  • Page 4: Product Overview

    After the monitoring cycle is complete, data can be downloaded for analysis. The QuadTemp comes with a wall mounted 120 VAC/9 VDC power adapter. Note: European customers should choose the QuadTemp-EU model under the ordering information. This model includes a wall mounted 230 VAC@50 Hz/9 VDC power adapter.
  • Page 5: Additional Features & Operation

    Additional Features and Operation Wiring the Data Logger Wiring Options The QuadTemp has four SMP connections and the OctTemp has eight. These connections allow the user to insert subminiature thermocouple plugs into the connectors on the device. The diagram below shows how to connect the individual thermocouples for each of the devices.
  • Page 6: Additional Features & Operation

    Product User Guide Additional Features and Operation Continued Set Password To password protect the device so that others cannot start, stop or reset the device; 1. In the Connected Devices panel, click the device desired. 2. On the Device Tab, in the Information Group, click Properties. Or, right-click the device and select Properties in the context menu.
  • Page 7: Product Maintenance

    Note: Be sure not to over tighten the screws or strip the threads. Recalibration The QuadTemp or OctTemp standard calibration is one point at 25 °C for the internal temperature sensor and 0 mVs for the thermocouple channels. RMA Instructions...
  • Page 8: General Specifications

    Product User Guide QuadTemp General Specifications 4 Internal Channels Temperature Range -20 ºC to +60 ºC (-4 ºF to +140 ºF) Temperature Resolution 0.05 ºC (0.09 ºF) Calibrated Accuracy ±0.5 ºC (0 ºC to +50 ºC) 4 Remote Channels Remote Channel...
  • Page 9 Time Accuracy ±1 minute/month Computer Interface USB (Interface cable required); 115,200 baud Software XP SP3/Vista/Windows 7/Windows 8 (MadgeTech 4 only) -20 ºC to +60 ºC (-4 ºF to +140 ºF), Operating Environment 0 %RH to 95 %RH non-condensing Dimensions 7.24 in x 2.7 in x 1.02 in (183 mm x 68 mm x 26 mm)
  • Page 10 Product User Guide OctTemp General Specifications 8 Internal Channels Temperature Range -20 ºC to +60 ºC (-4 ºF to +140 ºF) Temperature Resolution 0.05 ºC (0.09 ºF) Calibrated Accuracy ±0.5 ºC (0 ºC to +50 ºC) 8 Remote Channels Remote Channel J, K, T, E, R, S, B, N Thermocouple Types Thermocouple Connection...
  • Page 11: General Specifications

    Time Accuracy ±1 minute/month Computer Interface USB (Interface cable required); 115,200 baud Software XP SP3/Vista/Windows 7/Windows 8 (MadgeTech 4 only) -20 ºC to +60 ºC (-4 ºF to +140 ºF), Operating Environment 0 %RH to 95 %RH non-condensing Dimensions 7.24 in x 2.7 in x 1.26 in (183 mm x 68 mm x 32 mm)
  • Page 12 Troubleshooting Tips Why is the data logger not appearing in the software? If the QuadTemp or OctTemp doesn’t appear in the Connected Devices panel, or an error message is received while using either device, try the following: • Check that the IFC200 is properly connected. For more information, see Troubleshooting Interface Cable problems (below).
