Basler BE1-25 Instruction Manual

Sync-check relay
Hide thumbs Also See for BE1-25:

Advertisement

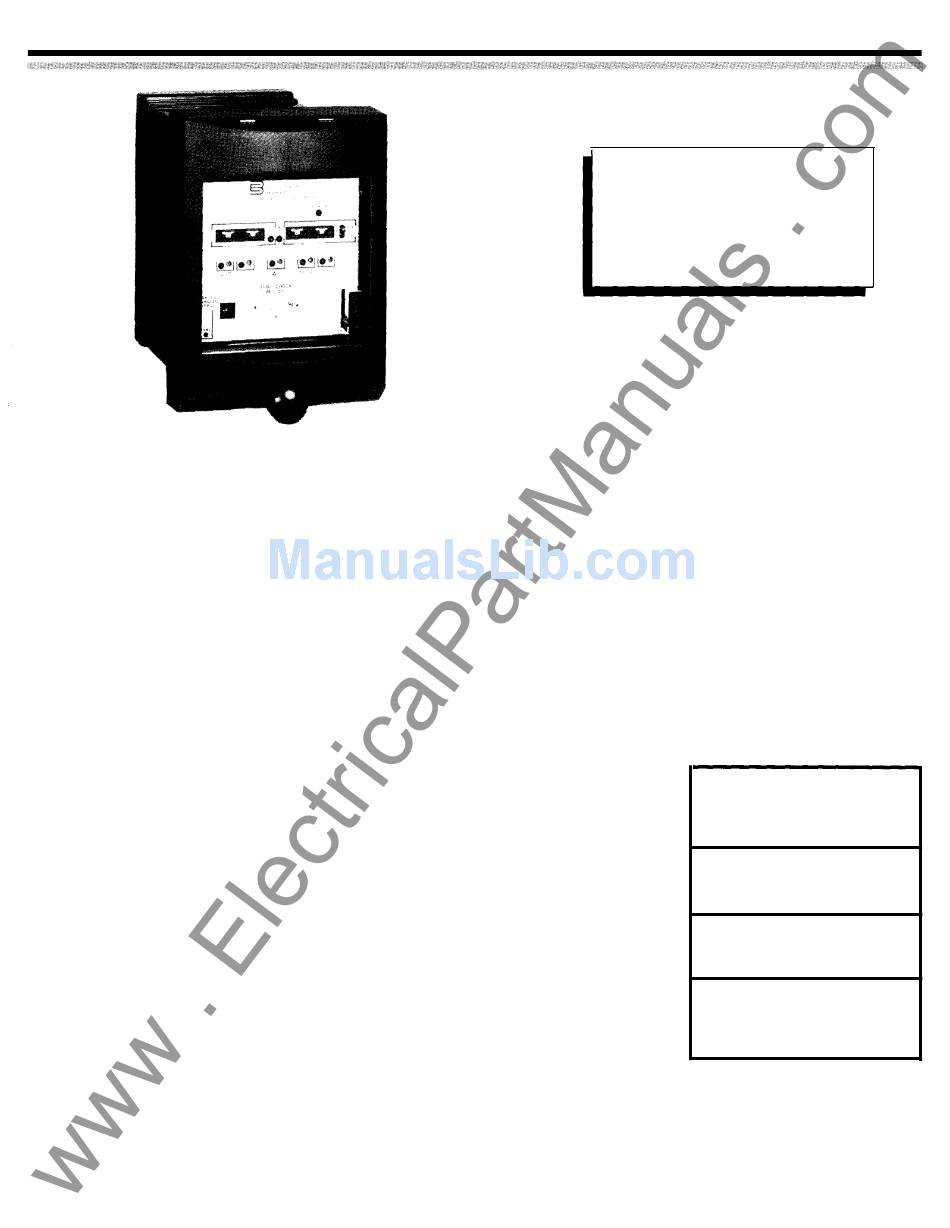

The BE1-25 Sync-Check Relay monitors the voltages on both sides of a circuit
breaker and determines that proper phase angle and voltage exist prior to closing the
circuit breaker.
Phase angle limit is adjustable over the range of 1 to 99 degrees.
Time delay is adjustable over a range of 1 to 99 cycles or 0.1 to 99 seconds.
Voltage monitoring circuits provide independent determination of bus and line
voltage levels for selectable closing conditions.
Voltage difference provides additional verification of proper breaker closing
conditions.
Expandable phase window option provides the capability to quickly close critical
system ties under emergency conditions.
Separate sync and voltage monitor output contacts are available.
Optional external selection of voltage conditions.
Qualified to the requirements of
- IEEE C37.90-1978, C37.90a-1974, and IEC 255 for surge withstand
capability;
- IEEE C37.90.1-198Xfor fast transient;
- IEC 255-5 for impulse.
UL Recognized under Standard 508, UL File #E97033.
Five year warranty.
ADDITIONAL INFORMATION
INSTRUCTION MANUAL
Request publication 9170200990
FEATURES
§
Basler Electric
P. 0. BOX
HIGHLAND, ILLINOIS, U.S.A.
269
62249
Sync-Check Relay
PHONE
FAX
618·654·2341
618·654-2351
BE1-25
APPLICATIONS
Page
2
SPECIFICATIONS
Pages
4-6
CONNECTIONS
Page
7
ORDERING
INFORMATION
Page
8
UBP-5
1-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the BE1-25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Basler BE1-25

  • Page 1 BE1-25 Sync-Check Relay The BE1-25 Sync-Check Relay monitors the voltages on both sides of a circuit breaker and determines that proper phase angle and voltage exist prior to closing the circuit breaker. FEATURES Phase angle limit is adjustable over the range of 1 to 99 degrees.
  • Page 2 General able over the range of 1 to 99 degrees. The time delay The basic BE1-25 is a solid state synchronism check requirement is adjustable over either of two ranges: 1 to relay, designed to permit breaker closure only after the...
  • Page 3 CO N DITIO N switches provide the means of selecting When the MO DE switches are in the NOT OVERVOL T­ the desired action to be taken by the BE1-25 relay. AGE position, a DEA D level is defined as a monitored Switch selections include: Live Line/Live Bus (Sync­...
  • Page 5 SPECIFICATIONS FUNCTIONAL DESCRIPTION User-supplied contacts perform the following functions. The specifications on these pages define the many Breaker (52b) - Form B auxiliary contact of the control­ features and options that can be combined to satisfy an ler breaker used to determine the state of the breaker. application requirement.
  • Page 6 BE1-25 SPECIFICATIONS, continued line, dead bus, and dead line limit levels. These controls Type provide continuous adjustment over the range of 10 to 135 Vac. Four condition switches determine the closing Nominal 48 Vdc 125 Vdc 24 Vdc 250 Vdc conditions that the relay will recognize.
  • Page 7 +CONTROL BUS 0 �I "' "' "' [;], ..L_ .,-- POWER & ____! 250 Vdc BE1-25 RELAY NON-ISOLATED INPUTS WITH TYPE T POWER SUPPLY 230 Vac ISOLATED - CONTROL BUS +CONTROL BUS �I "' � � 250 Vdc �I 0 0•...
  • Page 8 The following accessories are available tor the BE1-25 Sync-Check Relay. Test Plug To allow testing of the relay without removing system wiring, order two test plugs, Basler Electric part number 10095. Extender Board The extender board permits troubleshooting of the printed circuit board outside of the relay cradle. Order Basler Electric part number 9165500100.
  • Page 9 BE1-25/79TR SYNC-CHECK RECLOSING RELAY (DRAWOUT UNIT) FEATURES The BE1-25/79TR relay integrates all the components of a reclosing Pages 2- 4 system into one compact microprocessor package. It is designed for use on transmission systems, utility interties and distribution systems with cogeneration.
  • Page 10 Sync-check output relay. • one shot. The BE 1-25/79TR has two shot capabilities. TRIPPING A BE1-25/79TR relay is similar in principle to a mechanical repeat cycle timer where various operations Power fail condition (dead line and dead bus). • are permitted as the cam is rotated. The capabilities of Automatic reclose time delay interruption •...
  • Page 11 BE1-25/79TR (DRAWOUT) FEATURES (continued) Locator Control or Indicator Function Display One line, twelve character display to monitor function status and settings. Target LEOs Eight LEOs (red). Seven LEOs (HSR, PF, LT1, RP1, LT2, RP2 and PAR) indicate associated reclosing output contacts have closed.
  • Page 12 FEATURES {continued) XXXX XX XX XX XX XX XX XX X RELAY ID: TIME hh:mm:ss DATE mmlddlyy BASLER ELECTRIC BE1-25179TR TRANSMISSION RECLOSING RELAY SELECT ACTIVITY: 1 DIAGNOSTICS 2 REPORTS MENU REVIEW I RESET MAINTENANCE VALUES REVIEW I EDIT SETIINGS 5 PROGRAMMABLE OUTPUTS...
  • Page 13 Delta voltage . • fully automate a transmission system. TRIPPING FUNCTION The BE1-25/79TR provides one or two shot reclosing • Trip breaker when both line and bus are dead. capabilities with sync-check and voltage monitoring Enabled by contact external to relay (PF).
  • Page 14 BE1-25/79TR (DRAWOUT) FUNCTIONAL DESCRIPTION TIMING CHART The chart below shows that the timing sequence is the same as that used for electromechanical repeat cycle timers. Reclosing Lockout Timer � LT1(DULB) Reclose LT2(DULB) RP1(LUDB) RP2(LUDB) All time programmable *PAR(LULB) Allows for breaker time MASTER _ll�- -- -- -- -- -...
  • Page 15 BE1-25/79TR (DRAWOUT) FUNCTIONAL DESCRIPTION (continued) TYPICAL CONNECTIONS The integrated capabilities of the BE 1-25/79TR simplifies wiring over what is required with individual relays. Typical wiring connections are shown below. Control 1- P H L 43/A � BUS L I N E Power( + ) L T I HSR BLK RPI PAR CE...
  • Page 16 BE1-25/79TR (DRAWOUT) SPECIFICATIONS LINE AND BUS VOLTAGE MONITOR POWER SUPPLY INPUTS RANGE RANGE Continuously adjustable over the range of 1 0 to + 125 Vdc (62 to 150 Vdc) or 120 Vac 135 Vac. (90 to 132 Vac). BURDEN ACCURACY ±...
  • Page 17 BE1-25/79TR (DRAWOUT) SPECIFICATIONS (continued) T I ME DELAYS Timing tolerance for HSR timer is ±5% or two cycles whichever is greater. All other timer tolerances are ±5%. Number of Delays Function Range Line Test (L T1 , L T2) 1-999 seconds...
  • Page 18 BE1-25/79TR (DRAWOUT) �_,. ·��;; ; �,, ---:�. SPECIFICATIONS (continued) OUTPUTS STATUS One LE D (green) and four LEOs (yellow) indicate TRIP One tripping contact with N.O. configuration. relay status. The green LE D (RST) indicates the relay is in reset. The four yellow LEOs indicate the CLOSE bus and line status.
  • Page 19 Contact Basler to determine if the BE 1-25/79TR can be adapted to your needs. The user must fabricate a harness to make connections between the test box and the relay.
  • Page 20 BE1-25n9TR (DRAWOUT) §l Basler Electric 67319 143, 269, 62249 HIGHLAND , ILLINOIS U.S.A. P.A.E. Les Pins, Wasselonne Cedex FRANCE ROUTE 618-654-2341 618-654-2351 (33-3-88) 87-1010 (33-3-88) 87-0808 PHONE PHONE http://www.basler.com, info@basler.com Printed in U.S.A.
