Duct or pipe mounting
If installed in a ventilation duct or pipe, the mounting arrangement and accessories
shown in Figure 3.3 and 3.4 should be used.
The Duct Mounting Bracket shown in Fig. 3.3 allows the GD10P to be positioned in
the core of the airflow in wide ducts or pipes.
Avoid direct light on lens and mirror if the GD10P is mounted without the
!
Weather Protection.
In order to achieve minimum response time, the Weather Protection must be
oriented with the flow direction indicator facing into the air flow. See Figure 3.2 and
3.4
The sensor must be mounted in straight parts of the duct with undisturbed airflow.
Avoid areas with possible turbulent flow e.g. immediately after sharp bends or
junctions.
The kit includes a modified weather protection as well as piping for functional
testing.
Figure 3.3

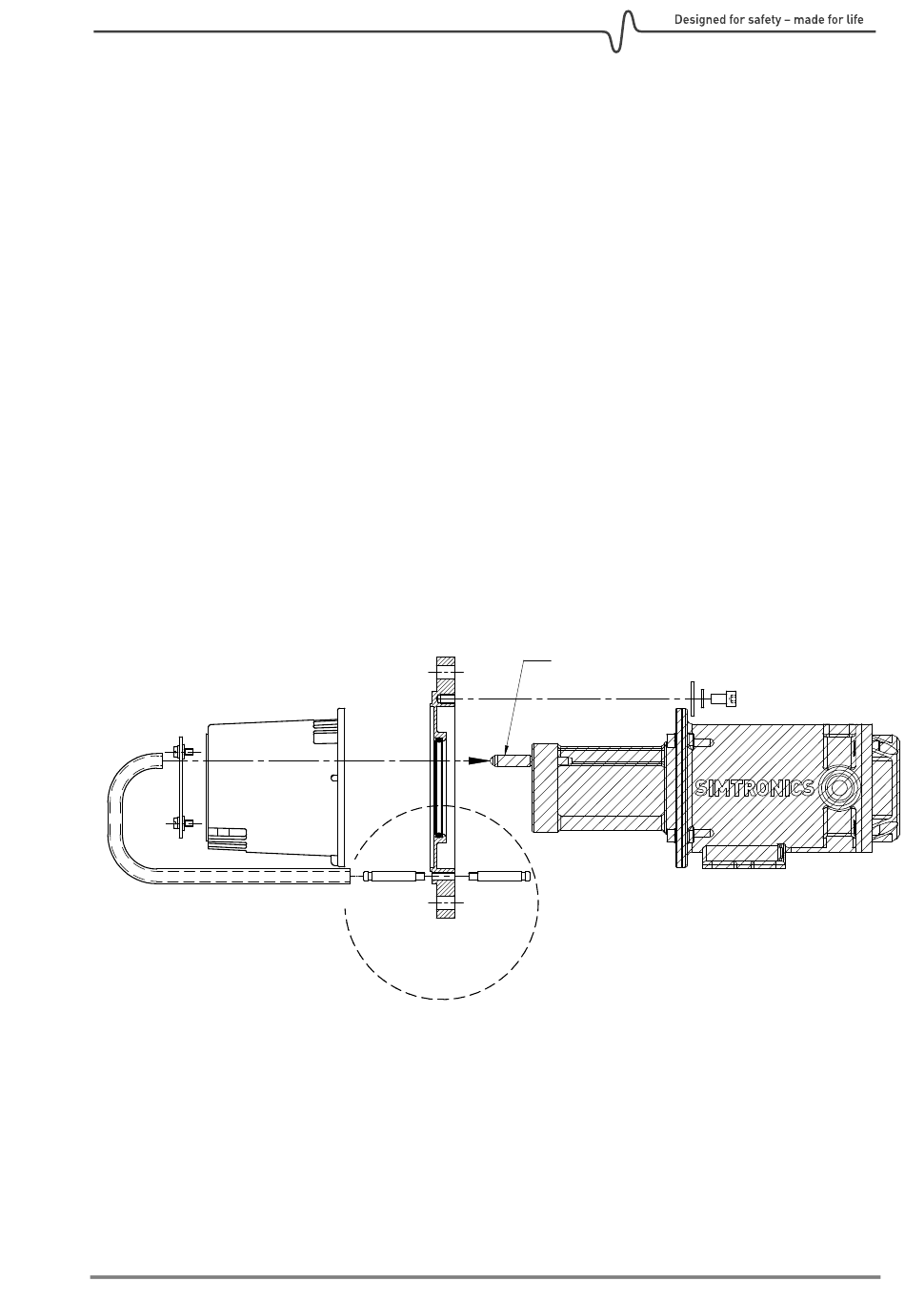

Exploded view, Duct Mount Flange Kit
GD10P
Remove cap when using
alternative A
Alternative A
Page 9 of 32
850-811250-R05
