SensoMAG B12L/U Fire Base - Installation Manual
English
General Description
SensoMAG B12L/U is an alarm base (12V) with relay output. The base has
two operation modes: Latch and Unlatch. The base is compatible with
conventional detectors SensoMAG series: F10, F10B, R20, S30 and M40 for
applications in security alarm systems.
Operation modes
The operation mode is set with a jumper on the relay module (over the
terminals of the PCB). The description of the operation modes is:
Latch Mode - In case of FIRE signal the relay will be switched on until the
AUX power supply if off. After switching on the AUX power supply the detector
will be reset.
Unlatch Mode - In case of FIRE signal the relay will be switched on for 7-9
seconds. After that time the detector will be reset automatically.

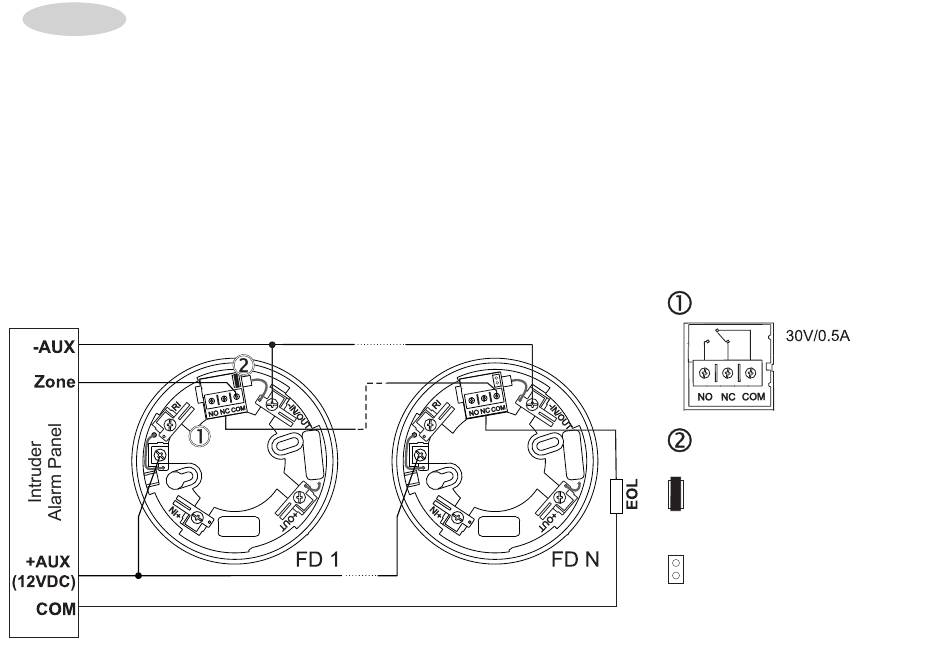

Connection Diagram
+12V
B12L/U
+12V
Technical & Environmental Specifications
Power Supply. . . . . . . . . . . . . . . . . . . . . . 10-15V
Consumption in stand-by mode . . . . . . . . <50µA
Consumption in FIRE mode. . . . . . . . . . . <25mA
Reset time in Unlatch operation mode. . . 7 - 9 sec
Relay terminals . . . . . . . . . . . . . . . . . . . . 30V/0.5A
Wire Gauge for terminals. . . . . . . . . . . . . 3.0mm
Operating temperature. . . . . . . . . . . . . . . -10°C to +60°C
Relative humidity resistance . . . . . . . . . . (93 ± 3)% @ 40°C
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . ~46g
Dimensions . . . . . . . . . . . . . . . . . . . . . . . 102x11mm
Material (plastic), color. . . . . . . . . . . . . . . ABS, white
Relay Terminals
B12L/U
Jumper for Latch/Unlatch
operation mode
Latch Mode - The jumper is set.
NOTE: The base comes with factory
set jumper, i.e the Latch operation
mode is set by default.
Unlatch Mode - The jumper is
removed.
Address: 14A Srebarna Str, 1407 Sofia, Bulgaria
18020765, RevC, 06/2015
2
Teletek Electronics JSC
