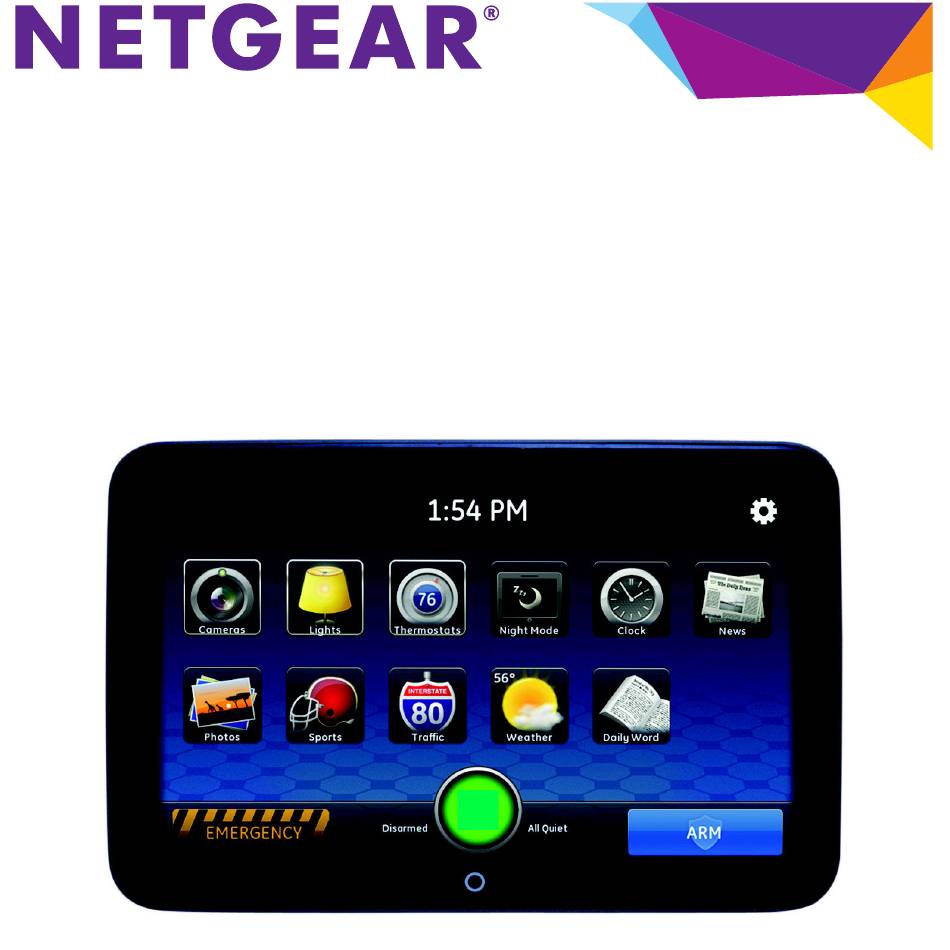

- Page 1 STS7000 Home Security Touch Screen Installation Guide Note: This document is for certification purposes. Images are for position only and might differ from the actual product.
-
Page 2: Package Contents
Package Contents Stand Touch Screen 12V power adapter USB adapter... -
Page 3: Hardware Features
Hardware Features The Touch Screen includes a stand and controls as shown here. • Stand. To put the Touch Screen in an upright position, position the device in the stand. - Page 4 • 12V power adapter input. To recharge the battery or to run on electricity instead of the battery, plug the power cord into the 12V power adapter input. Configure the Touch Screen To configure the touch screen for use with a wireless network: Plug the USB adapter into the USB port on the back of the Touch Screen.
- Page 5 Connect the adapter to the gateway device LAN port with an Ethernet cable. Plug the power adapter into the 12V power adapter input.
- Page 6 Add the Touch Screen To add the Touch Screen to your wireless network: Open your web browser. In the address bar, type: https://www.example.com. A sign-in screen displays. Type your user name and password. Click Sign In.
- Page 7 The following screen displays.
- Page 8 Click the System tab. Click Manage Devices. For the Manage Devices option to appear, your gateway needs to be connected to the Internet.
- Page 9 The Manage Devices Assistant screen displays.
- Page 10 Click Touch Screens. From the drop-down list, select NETGEAR 7" Touch Screen (HSS101). Click Continue.
- Page 11 The Name Devices screen displays. Enter a name for your Touch Screen. Type the MAC ID.
- Page 12 The MAC ID appears inside the back of the Touch Screen and contains 12 characters, either numbers or the letters A–F. 70F3958CA95A SOV6D2800002X01 67D1258CA05B Note: The placement of the MAC ID label might differ from the MAC ID location depicted in Step Two of the Touch Screen Assistant.
- Page 13 The Connect Device screen displays.
- Page 14 Click Continue.
- Page 15 Wait while the Touch Screen is added to your wireless network. Adding the touch screen can take up to two minutes. To add an additional Touch Screen, click Add Another. When you have added all the touch screens, click Finish.
- Page 16 Disconnect the Ethernet cable from the USB adapter. Disconnect the USB adapter from the Touch Screen. Move the Touch Screen and power supply to your desired location. Plug the power adapter into the 12V power adapter input. It might take up to 5 minutes to connect to the wireless network. If the touch screen does not connect, see Troubleshooting.
- Page 17 Troubleshooting This section provides information about troubleshooting your Touch Screen. • Dark screen. The screen is blank (dark). Reason. The Touch Screen is set to night mode. Resolution. To change the mode, tap the screen. The screen is dark except the logo, time, and a message that security information is not available from this device.
- Page 18 The Touch Screen is too far from the gateway. Resolutions. The Touch Screen must be within 50 feet of the gateway. If the Touch Screen is mounted outside the range of the wireless network, consider including the Model WN2000RPT- 111NAS Wi-Fi Extender for increased range. Turn off the microwave oven.
