Corvalent Phoenix ATX Express Quick Installation Manual

P P h h o o e e n n i i x x A A T T X X E E x x p p r r e e s s s s
This quick installation guide is designed to help with the basic configuration for the Phoenix
ATX Express. More detailed information can be found in the installation guide.
MN-P45AX-Q1
- - Q Q u u i i c c k k I I n n s s t t a a l l l l a a t t i i o o n n G G u u i i d d e e

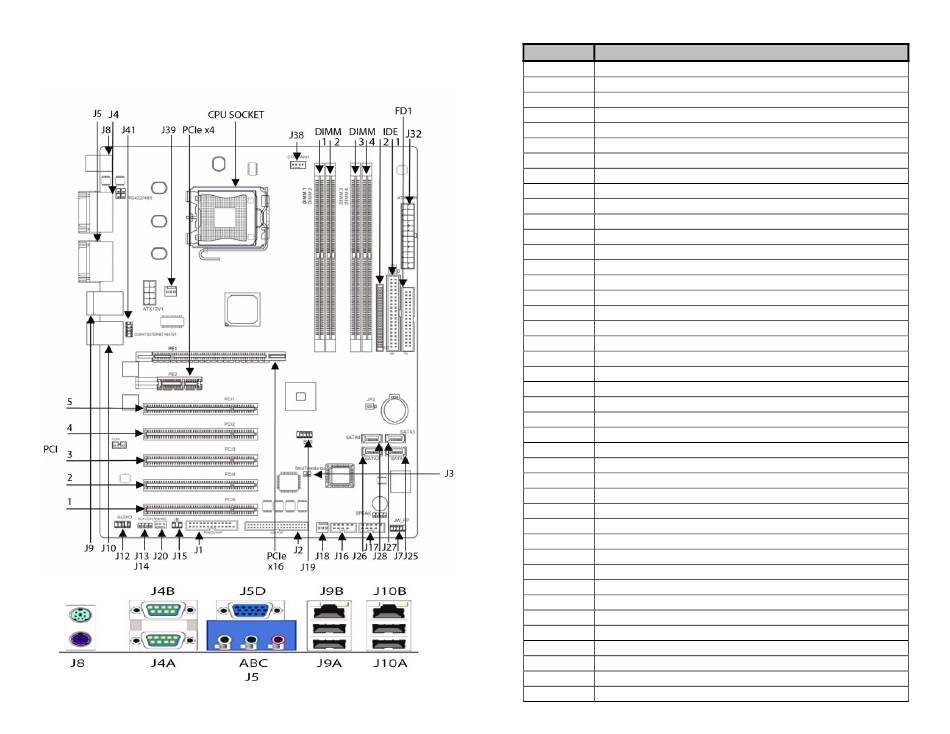

Connector
DIMM1
DIMM2
DIMM3
DIMM4
FD1
IDE1
IDE2
J1
J2
J3
J4A
J4B
J5A/B/C
J5D
J7
J8
J9A
J9B
J10A
J10B
J12
J13
J14
J15
J16
J17
J18
J19
J20
J24
J25
J26
J27
J28
J32
J38
J39
J41
PCI1
PCI2
PCIEX4
PCIEX16
Description
DDR2 SDRAM module socket 1
DDR2 SDRAM module socket 2
DDR2 SDRAM module socket 3
DDR2 SDRAM module socket 4
Diskette Drive Connector – Floppy drive
Parallel ATA primary IDE connector 1 40-pin
Parallel ATA primary IDE connector 2 44-pin
LPT - Parallel Port
COM3/COM4/COM5/COM6 (Configuration P45AX-02 only)
External Temperature Input
COM1
COM2
Audio – Line OUT/ Line IN/ MIC IN
VGA
Front Panel Header
PS/2 Keyboard (Bottom) – PS/2 Mouse (Top)
USB (Ports 4 & 5)
Gigabit Ethernet 2 (Configuration P45AX-02 only)
USB (Ports 6 & 7)
Gigabit Ethernet 1
Audio - Header
Audio – CD IN
Audio – AUX IN
IrDA – Infra Red Port
USB (Ports 0 & 1) - Header
USB (Ports 2 & 3) - Header
SYS FAN
SPI
RIWAKE
ATX 12V Power Connector
Serial ATA2 IDE Connector 1
Serial ATA2 IDE Connector 2
Serial ATA2 IDE Connector 3
Serial ATA2 IDE Connector 4
ATX Power Connector
CPU FAN
NB FAN
Gigabit Ethernet Header
PCI Slot 1
PCI Slot2
PCI Express x4 Interface
PCI Express x16 Interface
