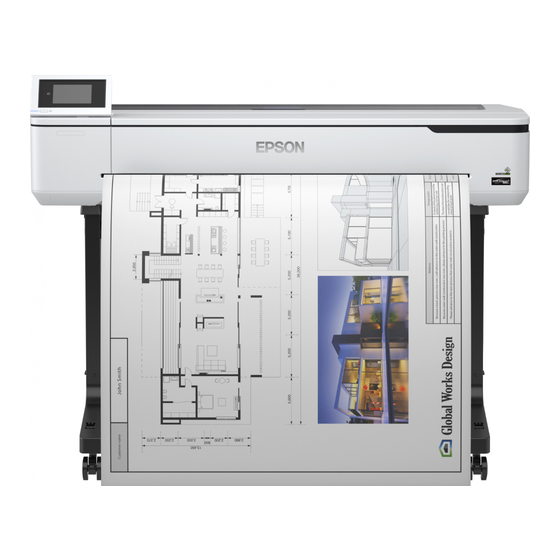

Epson SC-T5100 Series Operator's Manual
Hide thumbs
Also See for SC-T5100 Series:
- User manual (178 pages) ,
- Setup manual (31 pages) ,
- Setup manual (25 pages)
Advertisement
Table of Contents
Operator's Guide
This guide contains selected information on how to use the
printer and frequently used features of the printer.
See the User's Guide (online manual) for detailed instructions
on using the printer.
Home Screen Operations ....................................... 2
Getting Ready to Print ............................................. 4
Printing CAD Drawings ........................................... 6
Printing Banners ........................................................ 8
Printing at Non-Standard Sizes ............................ 10
Printing Outside the Office .................................... 12
Advertisement
Table of Contents
Related Manuals for Epson SC-T5100 Series
Summary of Contents for Epson SC-T5100 Series
-
Page 1: Table Of Contents
Operator’s Guide This guide contains selected information on how to use the printer and frequently used features of the printer. See the User’s Guide (online manual) for detailed instructions on using the printer. Home Screen Operations ........2 Getting Ready to Print ..........4 Printing CAD Drawings ........... -
Page 2: Home Screen Operations
The current printer status Touch to load or remove paper. U “Getting Ready to Print” on page 4 When you connect a compatible Epson scanner to the printer, the Touch to check the printer status or Enlarged Copy button appears. - Page 3 The home screen is displayed when the printer is turned on. These pages show the available operations on the home screen. The number of notices The number of notices, such as ink low warnings, is displayed on the icon. Touch this icon… A list of the notices that require your action is displayed.
-
Page 4: Getting Ready To Print
Getting Ready to Print Check the Paper Loading Load the Paper Following the Positions On-Screen Instructions Touch Paper Setting. Roll Paper Select one of the paper sources. Auto Sheet Feeder A4 to A3 Multiple sheets can be set at a time Touch See Guide to see the detailed on-screen instructions. - Page 5 Promptly select the settings because the paper will start being fed if the screen is not used for 90 seconds. Epson Special Paper Select the paper name printed on the paper package. Non-Epson Paper Select one of the following.
-
Page 6: Printing Cad Drawings
Printing CAD Drawings Click Custom Properties. Using the Printer Driver This method is best suited to printing CAD drawings, such as appearance view of buildings, at high quality. The printer driver screen is displayed. Select CAD/Line Drawing at Printer Settings tab. - Page 7 Settings - Page Margins option - Oversize Click Plot. Select plotter in Printer/plotter. Select the plotter name as shown below according to your model. SC-T5100 Series: HP DesignJet 750C C3196A SC-T3100 Series: HP DesignJet 750C C3195A SC-T5100N Series: HP DesignJet 750C C3196A...
-
Page 8: Printing Banners
Printing Banners Fitting the Original to the Roll Steps to print a banner Paper Width Create the original in the application Fitting the short side of Original the original to the roll paper width. Fitting the long side of the original to the roll Select the enlargement method paper width. - Page 9 These pages explain how to enlarge and print an original created at a standard size for a banner. Fitting the Original to the Output Specifying the Size Size Output size Output size Original Original Select Output Size - Fit to Output Size, and then select the Select Output Size - Specify Size, and then select the output output size.
-
Page 10: Printing At Non-Standard Sizes
Printing at Non-Standard Sizes Steps to print a non-standard size Register and Select the Paper Size Register and select the paper size in the application Windows Start the application, click the File menu, and then click Print. On the Printer Settings tab, click Custom Paper Size... - Page 11 These pages explain how to create and print an original with a non- standard size, such as a banner or square shape. Create the Original Create the original using the application. Start the application, and then click Page Setup. Enlarge and Print the Original If Page Setup is not displayed due to the application, select Print.
-
Page 12: Printing Outside The Office
Printing Outside This page explains how to print in an environment that is not equipped with a the Office wireless network router or access point. Wi-Fi Direct Connection Print Use Wi-Fi Direct to connect your computer or smart device After connecting to the printer with Wi-Fi Direct, print using to the printer when you are outside the office and cannot the printer driver. - Page 13 MEMO...
- Page 14 MEMO...
-
Page 15: Copyrights And Trademarks
Epson printer. Epson is not responsible for any use of this information as applied to other printers. Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation‘s operating and maintenance instructions. - Page 16 If the clogged nozzles did not improve after three times Run Powerful Cleaning From the home screen, touch Settings - Maintenance - Powerful Cleaning. If the clogged nozzles still did not improve, contact your dealer or Epson Support. Ink Drops Perform head cleaning.
