Cisco TelePresence Codec C60 Installing Manual page 2

Installing Cisco TelePresence System Codec C60
4
Assembling the rack ear profiles
Mount the rack ear profiles to the codec.
a) Remove the two M3 screws on
the left and right side of the codec.
Tool: Screwdriver, 2 mm Allen Key
b) Use the same two M3 screws to
fasten the rack ear profiles to the
codec.
6
Connecting cables
The C60 codec offers a great flexibility in connecting
audio and video equipment to the system.
For a basic setup, you should go through these steps:
1. Connect the main camera to the HDMI 1 input using a
HDMI to HDMI cable
• For camera control you should also connect the
camera to the Camera Control input using the
dedicated cable that came with your camera (RJ45
to DSUB)
2. Connect the monitor display to the HDMI 1 output using
a HDMI to HDMI cable
3. If you want to send images from a PC, connect the PC
to the DVI-I 3 input, using a DVI to DVI or a HDMI to DVI
cable (for digital signals) or VGA to DVI cable (for analog
signals) depending on your PC's capabilities
• Audio from the PC could be connected to Line 1
and 2 inputs for stereo signals
4. Connect the microphone to the XLR input
5. The loudspeakers should be connected to Line 1 and 2
outputs
6. Connect the codec to the IP network using the
Ethernet 1 interface
7. Connect the power and use the power switch to turn
the codec on
NOTE: If using the DVI-I out 2 for the main monitor a shortcut
is required to move the on screen display (OSD) to this
output. On the remote control key in the following sequence:
• Disconnect – * – # – * – # – 0 – 2 – #
78-19806-02 Codec C60 Installation Sheet | December 2012 | © 2010-2012 Cisco Systems, Inc. All rights reserved.
5
Mounting the codec onto the rack
Locate the rails and carefully slide the codec onto the rack.
a) Locate the rails on the codec and the
rails on the rack. Lift the codec towards
the rack and make sure the codec enter
the rails. Carefully slide the codec into the
rack.
b) Fasten the codec in front
by tightening the screws on
the rack ear profiles.

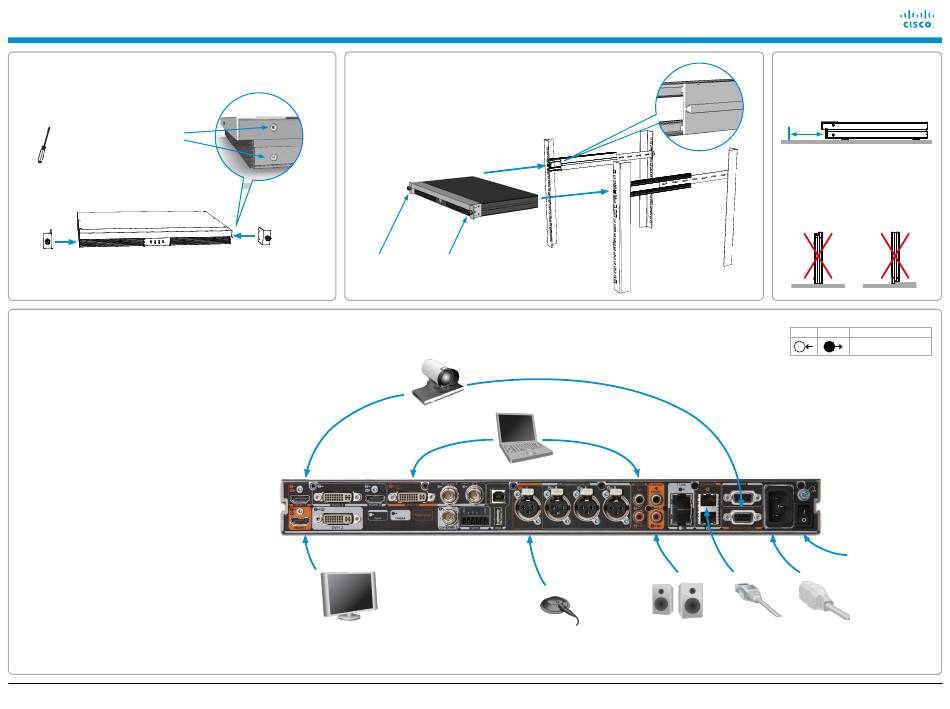

Basic setup - The main connectors are highlighted in orange color.
Video from the camera
(HDMI to HDMI)
Monitor (audio from
HDMI 1 or Line Out 1-2)
Camera control cable
(RJ45 to DSUB)
PC (audio to Line In 1)
Microphone
Page 2
IMPORTANT
There should always be a distance of
minimum 10 cm / 4 in. free space in front
of the codec.
Min. 10 cm
SAFETY REQUIREMENT
Make sure the codec is not mounted with
the front side up or down.
INPUTS OUTPUTS
1 1
Loudspeakers LAN/Ethernet Mains power
cable
(optional)
Basic setup
The main connectors for basic
setup are highlighted in orange.
Power switch
After having
connected the
cables, you may
turn the codec On.
