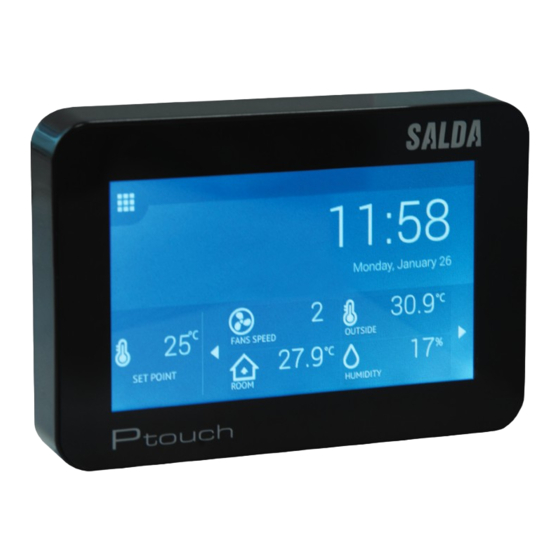

- Page 1 • Remote control panel Ptouch User manual Ragainės g. 100, LT-78109 Šiauliai, Lithuania Tel. (+370 41) 540415 Art.-no. PRGPU081 Fax. (+370 41) 540417 office@salda.lt MCB_P0097_AZ_0001 www.salda.lt...
-
Page 2: Table Of Contents
TABLE OF 1 GENERAL INFORMATION ...................... 3 CONTENTS 2 USER MANUAL .......................... 3 2.1 Main window ........................3 2.2 Temperature setting window ..................4 2.3 Operation mode selection window ................5 2.4 Menu ............................ 6 2.5 Device status window ....................7 2.6 Night cooling ........................9 2.7 Fans boost ........................ -
Page 3: Table Of 1 General Information
GENERAL INFORMATION Ptouch remote control panel is designed for: • SALDA ventilation units and other devices based on PRV, MCB or ECO controllers; • Modbus-controlled devices. Remote control panels guarantee optimal comfort of operation, monitoring, maintenance and service. All operations can be performed using remote panel, which displays the status of the system, fault reports and service settings. -
Page 4: Temperature Setting Window
Number Function Date and time. Information / alert / status box. Operating mode (comfort, max boost, stand-by, building protection or economy). Temperature of outside air Desired room temperature (in comfort mode) or selected operating mode icon. Temperature of extracted air (room temperature). Temperature of supplied air. -
Page 5: Operation Mode Selection Window
Number Function Window name. Time. Newly set desired room temperature (extracted air temperature). Number Function Back. Return to previous window. Decrease set temperature. Increase set temperature. 2.3 Operation mode selection window Number Function Current operating mode. Number Function STANDBY – AHU is stopped. BUILDING PROTECTION – maintain minimal air movement. Tempera- ture can be maintained depending on settings in Menu →... -
Page 6: Menu
2.4 Menu Number Function Device status window. Night cooling settings. Period setting for max boost operating mode. Review or modify set temperatures for all modes. Filter maintenance status. Heating season settings. Set AHU control unit‘s date and time. -
Page 7: Device Status Window
Weekly scheduler: status and modification. Show previous menu row. Show next menu row. Holiday scheduler: status and modification. List of current faults. User interface settings. Adjuster menu. Service menu. 2.5 Device status window Number Function Supplied air temperature. Exhausted air temperature. Extracted air temperature. Outside air temperature. - Page 8 Number Function Calculated required temperature of supply air. Supplied air relative humidity. CO2 quantity in supplied air. Extracted air relative humidity. CO2 quantity in extracted air. Differential pressure in supply duct. Differential pressure in extract duct. Version of AHU’s control unit software.
-
Page 9: Night Cooling
2.6 Night cooling Number Function Function state: green strip – on; gray – off. Set temperature indication. Number Function Minimum day temperature for a night cooling to be used. Maximum night temperature for a night cooling to be used. Desired room temperature at night. Number Function Function on/off switch. -
Page 10: Fans Boost
2.7 Fans boost Number Function Set temperature indication. Number Function Max period of boost (in seconds). Number Function Click to increase/decrease the „BOOST” function time... -
Page 11: Set Points
2.8 Set points Number Function Set temperatures indication. State of temperature maintaining function during building protection mode: green strip – on; gray strip – off. State of temperature maintaining function during economy mode: green strip – on; gray strip – off. Number Function Room air temperature during building protection mode. -
Page 12: Filter Timer
2.9 Filter timer Number Function Days remaining till filter service. Number Function Button to reset filter timer. Use only after filter replacement and at Your own risk. -
Page 13: Heating Season Settings
2.10 Heating season settings Number Function Current setting indication. Number Function Heating season mode: By 3 days outside temperature average: heating season is selected if average outside temperature exceeds the threshold; By date: heating season starts and ends at specified days; Heating: heating season is always active; Cooling: heating season is never active;... -
Page 14: Date And Time
2.11 Date and time Number Function Set date & time indication. Number Function Year. Month. Day. Hour (24h format). Minute. Number Function Buttons to increase value. Buttons to decrease value. -
Page 15: Weekly Scheduler
2.12 Weekly scheduler Number Function Selected event (light color). On/off indicator for selected event (green strip – event is on). New mode. The mode with a green strip will be set as current on oc- currence of selected event. Active weekdays (green strips); inactive weekdays (gray strips). Event time (24h format). -
Page 16: Holiday Scheduler
2.13 Holiday scheduler Number Function Selected event (light color). On/off indicator for selected event (green strip – event is on). Selected mode. The mode with a green strip will be set as current on occurrence of selected event. Day and time to start selected event. Selected mode will be set as current. -
Page 17: Alarms
2.14 Alarms NOTE: All active alarms are also shown on a main window. Number Function List of current active alarms. Number Function Button to refresh the alarm list. 2.15 Settings menu... -
Page 18: Language Selection
Number Function User interface language selection. User interface theme selection. Child protection lock settings. Screen brightness and dimming settings. Sound settings. 2.15.1 Language selection Number Function Buttons to select the language for user interface... -
Page 19: Theme Selection
2.15.2 Theme selection Number Function Buttons to select the theme for user interface 2.15.3 Child protection lock settings Number Function Current setting indication... -
Page 20: Screen Brightness And Dimming Settings
Number Function Lock delay. Inactivity time to trigger the lock screen Range: [OFF or 10-1200 s] Unlock PIN code. Digit 1 Range: [0-9] Unlock PIN code. Digit 2 Range: [0-9] Unlock PIN code. Digit 3 Range: [0-9] Unlock PIN code. Digit 4 Range: [0-9] 2.15.4 Screen brightness and dimming settings Number... -
Page 21: Sound Settings
Inactivity time to trigger dimmed mode Range: [30-300 s] Turn off the screen function ON: screen is turned off after specified inactivity time OFF: screen is never turned off Inactivity time to turn off the screen Range: [30-2000 s] 2.15.5 Sound settings Number Function Current setting indication...
