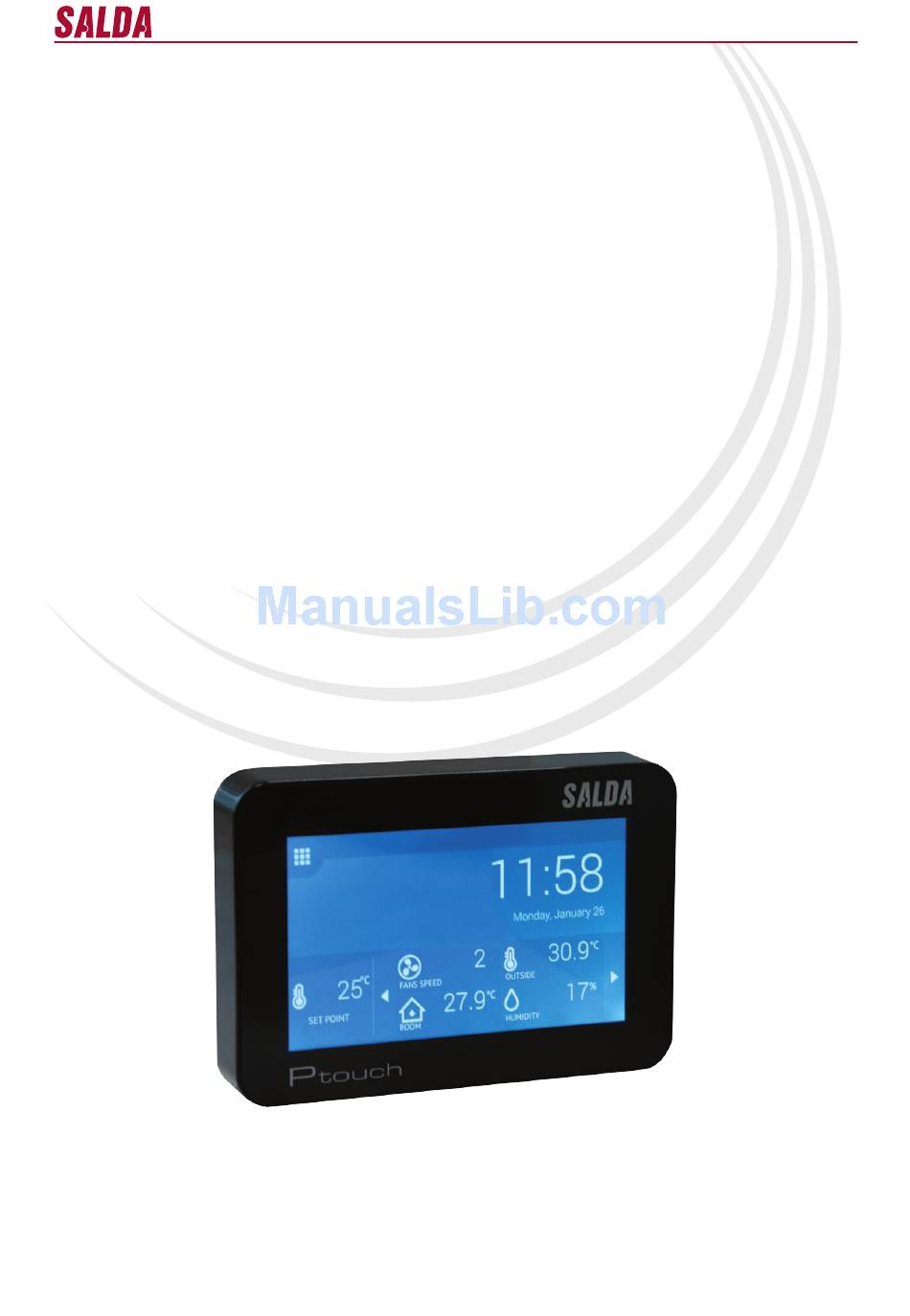

- Page 1 • Remote control panel Ptouch Service manual Ragainės g. 100, LT-78109 Šiauliai, Lithuania Tel. (+370 41) 540415 Fax. (+370 41) 540417 Art.-no. PRGPU081 office@salda.lt PRV_P0098_AZ_0001 www.salda.lt...
-
Page 2: Table Of Contents
TABLE OF 1 GENERAL INFORMATION ...................... 3 CONTENTS 2 DIMENSIONS ..........................3 3 INSTALLATION .......................... 4 4 SERVICE ............................5 4.1 Service login ........................5 4.2 Service menu ........................6 4.3 Ventilation mode settings .................... 7 4.4 Cooling settings ....................... 8 4.5 Fan settings menu ......................8 4.5.1 Air supply fan settings ..................9 4.5.2 Air extraction fan settings ................ -
Page 3: Table Of 1 General Information
GENERAL INFORMATION Ptouch remote control panel is designed for: • SALDA ventilation units and other devices based on PRV, MCB or ECO controllers; • Modbus-controlled devices. Remote control panels guarantee optimal comfort of operation, monitoring, maintenance and service. All operations can be performed using remote panel, which displays the status of the system, fault reports and service settings. -
Page 4: Installation
Ptouch installation on a plaster-board wall: Ptouch installation on a plaster-board wall: IMPORTANT: IT IS FORBID- DEN to leave the remaining remote controller’s cable in the AHU’s control box! 1-2 Turn over the panel. Use a screwdriver to lift the cover as shown in fig. 2. 3 Take the cover apart. 4 Put it at desired location on the wall. The arrow must point upwards. Mark the positions of mounting holes (distance center-to-center is 106 ±... -
Page 5: Service
SERVICE 4.1 Service login Number Function Entered code (masked) 4444 Number Function Clear last entered digit Confirm entered code... -
Page 6: Service Menu
4.2 Service menu Number Function Ventilation mode settings Cooling settings Fan settings Modbus interface settings System settings Water heater settings Ventilation settings PI controller settings Pressure sensor settings CO2 sensor settings... -
Page 7: Ventilation Mode Settings
Anti-freezing settings Filter settings Factory settings 4.3 Ventilation mode settings Number Function Ventilation mode: Supply: maintain supplied air temperature; Room: maintain extracted air temperature; ByOutDoor: ventilation is controlled by supplied or extracted air tem- perature depending on OutDoor T.C setting. If outdoor temperature exceeds OutDoor T.C setting, ventilation is controlled by extracted air temperature. -
Page 8: Cooling Settings
2.4 Cooling settings Number Function Minimum allowed supplied air temperature when cooling. Range: [0-15 °C] Freon-based cooling enabling temperature. Range: [12-24 °C] Freon-based cooling disabling temperature. Range: [25-40 °C] Minimum outside temperature to allow cooling. Range: [10-30 °C] 4.5 Fan settings menu... -
Page 9: Air Supply Fan Settings
Number Function Air supply fan settings Air extraction fan settings 4.5.1 Air supply fan settings Number Function Supply fan speed for Boost function. Range: [0-100 %] Supply fan speed for 1st mode. Range: [0-100 %] Supply fan speed for 2nd mode. Range: [0-100 %] Supply fan speed for 3rd mode. -
Page 10: Air Extraction Fan Settings
4.5.2 Air extraction fan settings Number Function Extract fan speed for Boost function. Range: [0-100 %] Extract fan speed for 1st mode. Range: [0-100 %] Extract fan speed for 2nd mode. Range: [0-100 %] Extract fan speed for 3rd mode. Range: [0-100 %]... -
Page 11: Modbus Interface Settings
4.6 Modbus interface settings Number Function Parity: None; Odd; Even. Baud rate: 2400; 4800; 9600; 19200; 38400. Stop bits: 1 stop bit; 2 stop bits. AHU Control unit Modbus address. Range: [1-247]... -
Page 12: System Settings
4.7 System settings Number Function Heater type: E_On/Off: Relay-controlled electrical heater; E_0_10: 0-10V signal-controlled electrical heater; E_ESKM: Triac-controlled electrical heater; W_VAL+-: 3-way valve actuator for water heating. W_0_10: 0-10V signal-controlled valve actuator for water heating. Heat exchanger type: R_0_10: 0-10V signal-controlled rotary heat exchanger; R_On/Off: Relay-controlled rotary heat exchanger;... -
Page 13: Water Heater Settings
4.8 Water heater settings Number Function Threshold to force an increase of a returning water temperature. Threshold to stop fans. Maximum idle water pump operation (when there is no need for heating). Range: [10-30 minutes] Interval of water pump prophylactic. In Pump-stopped state, pump is exercised for „Pump stop minutes“... -
Page 14: Ventilation Settings
4.9 Ventilation settings Number Function Supplied air fan indication: Percent: indicate fan state in %; Pressure: indicate fan state in Pa. Extracted air fan indication: Percent: indicate fan state in %; Pressure: indicate fan state in Pa; SAF + Pressure: indicate fan state as difference from supplied air pressure (in Pa). -
Page 15: Pi Controller Settings
4.10 PI controller settings Number Function Adjustments of PI controller used by system to react to heating or cooling. Adjustments of PI controller used in the mode of maintaining ex- tracted air temperature. Electrical heater PI controller adjustments. Adjustments of PI controller for bypass valve or rotor heat ex-changer. Cooler PI controller adjustments. -
Page 16: Pid Adjustment Screen
4.10.1 PID adjustment screen NOTE: This screen is applicable for all PID controller adjustments. Number Function Current setting indication Number Function Proportional coefficient. Range: [0-1000] Integral coefficient. Range: [0-1000]... -
Page 17: Pressure Sensor Settings
4.11 Pressure sensor settings Number Function Pressure corresponding to 0V input signal. Range: [0-2000 Pa] Pressure corresponding to 10V input signal. Range: [0-2000 Pa] 4.12 CO2 sensor settings... -
Page 18: Anti-Freezing Settings
Number Function CO2 level (in ppm) at minimum voltage (0 VDC). Range: [0-2000 ppm] CO2 level (in ppm) at maximum voltage (10 VDC). Range: [0-2000 ppm] Voltage at 100 ppm CO2 level Range: [0-10 V*10] 4.13 Anti-freezing settings Number Function Anti-freeze protection algorithm: DewP/PlateT: Dew point and heat exchanger surface temperature calculation-based;... -
Page 19: Air Filter Settings
Fault alert if too-cold air is supplied longer than allowed period: On: alert will be shown; Off: alert will be suppressed. 4.14 Air filter settings Number Function Working hours till reminder to replace air filters. 4.15 Factory settings Number Function...
