Denon HEOS AMP Service Manual
  1. Manuals
  2. Brands
  3. Denon Manuals
  4. Stereo System
  5. HEOS Amp
  6. Service manual

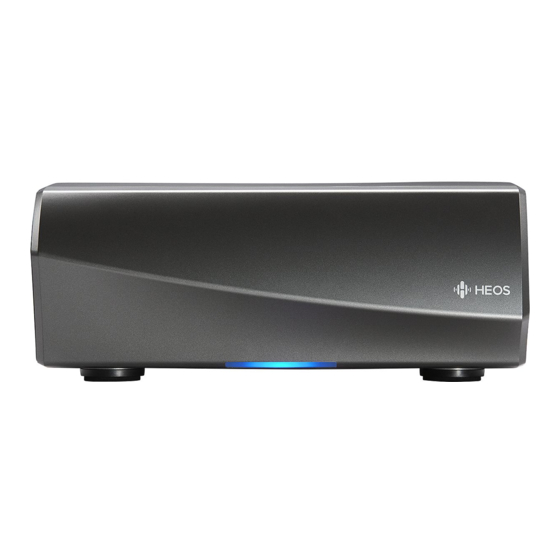

Denon HEOS AMP Service Manual

Wireless multi-room sound system
Hide thumbs Also See for HEOS AMP:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
e
MODEL
HEOS Amp
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S1147V06DM/DG1511
SERVICE MANUAL
JP
Wireless Multi-Room Sound System
e
D&M Holdings Inc.
E3
E2
EK
P P
Ver. 6
Please refer to the
MODIFICATION NOTICE.
EA
E1
E1K E1C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEOS AMP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denon HEOS AMP

Summary of Contents for Denon HEOS AMP

  • Page 1 MODIFICATION NOTICE. SERVICE MANUAL MODEL E1K E1C HEOS Amp Wireless Multi-Room Sound System • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail.

  • Page 2: Table Of Contents

    CONTENTS ABOUT THIS MANUAL .............3 What you can do with this manual ..........3 Using Adobe Reader (Windows version) ........4 SAFETY PRECAUTIONS ............6 NOTE FOR SCHEMATIC DIAGRAM .........7 NOTE FOR PARTS LIST ............7 TECHNICAL SPECIFICATIONS ..........9 DIMENSION ................9 DISASSEMBLY ................10 1. SIDE COVER AND SIDE KEY PCB ........12 2.

  • Page 3: About This Manual

    ABOUT THIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) Jump to the target of a schematic diagram connector (Ctrl+Shift+F) You can use the search function in Acrobat Reader to search for a Ref.

  • Page 4: Using Adobe Reader (Windows Version)

    Using Adobe Reader (Windows version) Add notes to this data (Sign) Magnify schematic / printed wiring board diagrams - 1 TheSignfunctionletsyouaddnotestothedatain (Ctrl+Space, mouse operation) this manual. Savethefileonceyouhavefinishedaddingnotes. Press Ctrl+Spaceonthekeyboardanddragthe [Example using Adobe Reader X] mousetoselecttheareayouwanttoview. On the "View" menu, click "Sign". • Theselectedareaismagnified.
  • Page 5 Magnify schematic / printed wiring Magnify schematic / printed wiring board diagrams - 2 board diagrams - 3 (Pan & Zoom function) (Loupe Tool function) ThePan&Zoomfunctionletsyouseewhichpartof TheLoupeToolfunctionletsyoumagnifyaspecific amagnifieddiagramisbeingshowninaseparate part of a diagram in a separate window. window. [Example using Adobe Reader X] On the "View"...

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. leakage current check Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.

  • Page 7: Note For Schematic Diagram

    NOTE FOR SCHEMATIC DIAGRAM WARNING: Partsindicatedbythe z markhavecriticalcharacteristics.UseONLYreplacementpartsrecommendedbythemanufacturer. CAUTION: Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassisresistancecheck.If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective. WARNING: DONOTreturnthesettothecustomerunlesstheproblemisidentifiedandremedied. NOTICE: ALLRESISTANCEVALUESINOHM.k=1,000OHM/M=1,000,000OHM ALLCAPACITANCEVALUESAREEXPRESSEDINMICROFARAD,UNLESSOTHERWISEINDICATED.PINDICATESMICRO-MICRO...
  • Page 8 Personal notes:...

  • Page 9: Technical Specifications

    Setup Troubleshooting Status LED Appendix o Dimensions (Unit : in. (mm)) DENON 8 45/64 (221) 6 3/16 (157) o Weight : 6 lbs 2.8 oz (2.8 kg) Weight : 6 lbs 2.8 oz (2.8 kg) For the purpose of improvement, the specifications and design are subject to change without notice.

  • Page 10: Disassembly

    DISASSEMBLY • Remove each part in the order of the arrows below. • Reassemble removed parts in the reverse order. • Read "Precautions During Work" before reassembling removed parts. • If wire bundles are removed or moved during adjustment or part replacement, reshape the wires after completing the work.
  • Page 11 Explanatory Photos for“ DISASSEMBLY” • The angles from which the photos are taken are shown by “Photo angle: A, B, C, D“ . • See the diagram below about the shooting direction of each photograph. • Photographs with no shooting direction indicated were taken from the top of the set. The viewpoint of each photograph (Shooting direction) Shooting direction: D...

  • Page 12: Side Cover And Side Key Pcb

    1. SIDE COVER AND SIDE KEY PCB Proceeding : SIDE COVER → SIDE KEY PCB (1) Remove the socket head cap screw. Shooting direction: C (Bottom side) (2) Lift the SIDE COVER. Put the driver in the groove and push the side panel. Use a φ2mm tool (bit or driver). (3) The other side do the same.

  • Page 13: Top Cover / Bottom Cover

    (4) Disconnect the connector wire. Remove the SIDE KEY PCB. 2. TOP COVER / BOTTOM COVER SIDE COVER → Proceeding : TOP COVER / BOTTOM COVER (1) Remove the screws. Shooting direction: E (Right side) (2) Remove the screws and remove the top cover. Shooting direction: F (Left side) Antenna cable...

  • Page 14: Core Module Pcb Assy

    3. CORE MODULE PCB ASSY → TOP COVER → Proceeding : SIDE COVER CORE MODULE PCB ASSY (1) Remove the screws. And pull up the PCB. Shooting direction: D (Top side) shield cover (2) Remove the shield cover and remove the antenna connector. ANTENNA CONNECTOR...

  • Page 15: Digital Pcb

    4. DIGITAL PCB SIDE COVER → → → DIGITAL PCB Proceeding : TOP COVER MODULE PCB (1) Remove the screws. Shooting direction: B (Rear side) (2)Remove the screws and remove the side connector PCB. Shooting direction: F (Left side) (3) Remove the screws, the connector wire and FFC. Loosen the style pin. Then remove the PCB from the support.

  • Page 16: Sub Smps Pcb

    5. SUB SMPS PCB SIDE COVER → TOP COVER → CORE MODULE PCB ASSY → DIGITAL PCB Proceeding : → SUB SMPS PCB (1) Remove the screws. And connector wires. Shooting direction: D (TOP side) CN94 TS92...

  • Page 17: Main (Volume-Smps) Pcb

    6. MAIN (VOLUME-SMPS) PCB SIDE COVER → TOP COVER → CORE MODULE PCB ASSY → DIGITAL PCB Proceeding : → SUB SMPS PCB → MAIN PCB / REAR LED PCB / AC CONNECTOR PCB (1) Remove the screws. Shooting direction: B (Rear side) (2) Remove the connector wire and FFC.

  • Page 18: Procedure After Replacing The Microprocessor, Etc

    Class 2 Wiring LINE IN AUX IN CONNECT SPEAKERS WOOFER (1) Download the Denon HEOS App Go to the App Store™ or to Google Play™ and search for “Denon HEOS” to download and install. (2) Launch the Denon HEOS App...
  • Page 19 (3) If there is a software update, follow step 1 to step 4 below. Step 1 → Step 2 → Step 3 → Step 4 Tap the "Update Now". Tap the "Next". The software is written to this "Update completed" is displayed. Unit.

  • Page 20: Updating By Usb

    2. Updating by USB The latest firmware can be downloaded to a USB memory for updates. 2.1. Connecting to the USB Memory (1) Preparation • USB format: Prepare a USB memory formatted in FAT32. • Do not run the USB memory through a hub. •...

  • Page 21: Service Region Settings Update Procedures

    (4) Input File name and Click Save button. Note：Typing the file name surrounded by double quotes.(No need file extention) Model Area File name North America "denon-config-locale-set-1" Europe "denon-config-locale-set-2" (5) Copy the created file to the USB memory. copy to USB flash drive 3.3.

  • Page 22: Service Release Type Settings Update Procedures

    4. Service Release Type settings update procedures Write the Service Release Type setting file to this unit from the USB memory. 4.1. Items to Be Prepared ・ Windows PC ・ USB format：Prepare a USB memory formatted in FAT16 or FAT32. Note：...

  • Page 23: Firmware Burning Procedure After Core Module Replacement Flow

    5. Firmware burning procedure after Core Module replacement flow Change Region Setting. Core Module replacement. Insert USB memory. Checking Writing - Player serial number. See "3.Service region Old Core Module's settings update procedures". - WiFi MAC address. New Core Module's - WiFi MAC address.

  • Page 24: How To Check The Version , Release Type, Locale

    6. How to check the version , Release Type, Locale (1) How to check the version for "HEOS".(The figure is HEOS3 model) From "Settings" menu of the HEOS application, please display the "About" menu according to the following operation. Step 1 →...

  • Page 25: Trouble Shooting

    TROUBLE SHOOTING 1. POWER 1.1. The unit does not power on The unit does not power on Does the indicator on the front panel flash in blue Has a fuse broken? See "1.2.Fuse is blown." when the power is turned Is DC5V being supplied Replace the IC91 (ICE- Is IC91 (ICE3BR0665J)
  • Page 26 1.2. Fuse is blown Broken fuse Check the rectifier diode in Check for short circuits between Check for leaks and short the rectifier circuit on the the regulator output terminal and circuits in the parts on the secondary side, and check GND in the power supply stabili- primary side.

  • Page 27: Audio

    2. AUDIO 2.1. AUDIO CHECK 2.1.1. Analog OUT No audio output from Speaker out. See "Audio Check PATH" page). CHECK1 INPUT Check the IC53 (E-Vol) Check the MUTE BLOCK BLOCKCheck input signal. Preout OK? AUX IN / LINE IN AUX IN : 41,42pin LINE IN : 45,46pin Check output signal.34,35pin , Check the PREOUT_MUTE signal.
  • Page 28 2.1.2. Another HEOS play No audio output from another HEOS. See "Audio Check PATH" page). CHECK1 INPUT Check the IC53 (E-Vol) BLOCK Check the IC21 (DIR 1) and Check input signal. Another HEOS output OK? AUX IN / LINE IN IC31(PLD) BLOCK Check the Core Module and AUX IN : 41,42pin...

  • Page 29: Audio Check Path

    AUDIO CHECK PATH AUX IN / LINE IN...
  • Page 30 OPT-IN...
  • Page 31 This Phone / Online music USB IN...
  • Page 32 EASY-SETUP...

  • Page 33: Measuring Method And Waveforms

    MEASURING METHOD AND WAVEFORMS CUP12669Z-3 (CONNECT PCB) BD3473KS2 Control Signal q DA w CL BD3473KS2 Control Signal...
  • Page 34 8U-110160-1 (PHONO/HDAM PCB) PCM9211 Control Signal q DA w CL C426 JK32 C423 C347 S101 C349 D118 JK12 JK33 L408 JK11 R376 JK42 C119 C411 R432 JK43 ST11 C409 R431 L402 R455 R426 R454 L305 C353 C364 R424 R430 R425 C415 ST23 R423...
  • Page 35 Personal notes:...

  • Page 36: Block Diagram

    BLOCK DIAGRAM IC36 TS5A3357 SW IC AUX-IN L-ch IC71 L-ch IR4322 RELAY D-AMP EASY SETUP TX/TX2 SP-OUT LINE-IN MIC-OUT R-ch IC72 L/R-ch R-ch IC53 IR4322 RELAY OPT-IN BD3473KS2 D-AMP VOLUME IC IC21 L/R-ch PCM9211 SP PROTECT DIR/ADC IC L/R-ch IC31 Core Module SM80ZT100 PLD IC...

  • Page 37: Power Diagram

    POWER DIAGRAM +19V IC73 D-AMP NJM2830V1-12 Q901 IC93 ICE2QS02G -19V PC91 Q902 TS92 PC92 Q922 PC95 IC95 7812A Q932 +12V_D RELAY Q927 IC27 LM1117C-5V0 PCM9211(A/D) +5V_A IC99 7808A Q925 +8V_A OP AMP -8V_A Q926 IC98 +7.4V_A 7908A Q923 E-Volume -7.4V_A Q933 Q924 IC91...

  • Page 38: Wiring Diagram

    WIRING DIAGRAM BN57 5P CONNECTER 3 colocr LED ETHERNET OPT-IN RESET SW CONNECT SW AUX-IN LINE-IN SW-OUT REAR LED B’D CPU12669Z-5 SP OUT CN57 CN42 40P PIN HEADER 5P CONNECTER 40P JOINT PIN CONNECT B’D COre Module B’D CPU12669Z-3 CN21 BN21 BN53 CN53...

  • Page 39: Printed Circuit Boards

    PRINTED CIRCUIT BOARDS Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). VOLUME / SMPS (A SIDE) VOLUME / SMPS ((B SIDE) C759 JW73 C763 C772 JK71 C795 C760 C766 Q535 C769 C796 C753 C590 C771 JW71 Q534 R595 JK56 C770 R795 Q512...
  • Page 40 (A SIDE) (B SIDE) CONNECT CONNECT FRONT LED (A SIDE) (B SIDE) FRONT LED REAR LED (A SIDE) REAR LED (B SIDE) C831 R838 C833 R840 C832 R837 R836 R839 (A SIDE) SIDE KEY SIDE KEY (B SIDE) (A SIDE) (B SIDE) AC INLET AC INLET...
  • Page 41 (A SIDE) (B SIDE) DIGITAL DIGITAL CN12 +3.3V_E C130 C369 C368 CN14 C367 R347 C240 CN21 C239 C241 C324 C313 C334 C309 R391 C315 R349 C314 R343 C328 C408 C410 C372 C317 C407 C320 C319 C335 C318 R392 R360 R234 C377 C416 C435...

  • Page 42: Schematic Diagrams

    Pattern Width +3.3V_D -8V_A : Pattern 0.25mm +8V_A : Pattern 0.25mm R172 +12V_D : Pattern 0.3mm RESET +5V_ST : Pattern 0.3mm D111 +3.3V_D : Pattern 0.5mm +8V_A Q113 +3.3V_CPU : Pattern 0.3mm 1SS355T R185 RT1N141C S101 +3.3V_E : Pattern 1mm Over D112 CST1A039ZT R173...

  • Page 43: Dsp Dir Usb

    DI R ONLY HEOSLI NK DIR1_OPT1_IN DIR1_OPT1_IN DIR1_MCK DIR 1 DIR1_MCK DIR 2 +3.3V_D TO 5A DIR1_BCK +3.3V_D DIR1_BCK DIR1_LRCK MURATA U2J Series DIR1_LRCK MURATA U2J Series DIR1_DATA DIR1_DATA DIR1_ADC_DATA DIR1_ADC_DATA DIR1_XMCKO DIR1_XMCKO DIR1_ADC_MCK R221 OPEN DIR1_ADC_MCK DIR1_ADC_BCK R238 OPEN R266 DIR1_ADC_BCK DIR1_ADC_LRCK...

  • Page 44: Damp

    IC36 OPTION OPEN +3.3V_D DAC 1 +5V_A ELNA E-CAP RV2 R391 C336 47/16V D302 OPEN TO A6 C328 CPVDD CPVDD CPVDD CPVDD DVDD DVDD DVDD DVDD C335 CAPP CAPP CAPP CAPP DGND DGND DGND DGND DGND DGND CPGND CPGND CPGND CPGND LDOO LDOO...

  • Page 45: Smps

    CN41 CN42 +3.3V_E +5V_D +3.3V_E +3.3V_E CJP40GA213ZB CJP40GA213ZB AUX_DETECT AUX_DETECT SPI_CLK R414 SPI_CLK VOL_DA R469 VOL_DA SPI_MISO R413 SPI_MISO MODEL OPTION VOL_CL R468 VOL_CL MB_TYPE LINK MCU_RESET MCU_RESET USB_DN0 USB_DN0 R417 5.1K 2.7K VU_BUTTON_CORE VU_BUTTON_CORE MB_REVISION MODEL REVISION VD_BUTTON_CORE VD_BUTTON_CORE USB_DP0 USB_DP0 MUTE_BUTTON_CORE...

  • Page 46: Front

    FUNCTION & VOL U ME PART CN52 CN53 TO BN52 TO BN53 CN52 CJP07HJ282Z CN53 BN54 TO CN54 WPS SW C536 CN54 C532 0.1uF C531 C530 C533 0.1uF 0.1uF +5V_D 0.1uF C534 0.1uF C535 R595 CK57 R590 5V_LED_REAR +3.3V_E 2.4K Q534 NET_LED_R Q535...

  • Page 47: Main Bt Nfc Key

    +12V_D AMP PART +19V -19V C719 25V1000uF C774 R704 25V/100uF +8V_A C720 47Kohm F D701 25V1000uF 1SS355 R720 TO B8 Q722 SP_MUTE R717 D702 R754 1SS355 RT1N141C C704 C783 2012, 100V/0.022uF 2200pF C727 C705 C708 R710 C784 100V/1000pF 150pF 2200pF 1000pF CLIP C785...

  • Page 48: Touch Pad

    CONNECTION B'D PART BN21 TO CN21 SIDE KEY & LED(FRONT/REAR) PART +3.3V_D : Pattern 1mm Over +5V_ST : Pattern 0.75mm Over +12V_D Make GND Pattern SIGNAL LINE Gap +5V_ST C815 C203 SIDE KEY B'D +3.3V_D 50V/0.01uF C201 C202 S815 +5V_D NETWORK_B CST1A036ZT L811...
  • Page 49 SMPS SCHEMATIC DIAGRAM Division : VT92 Division : R991,R992 Division : C902 Division : C901 USA : Used EUR : Not used USA : Not used EUR : 0ohm x2 USA : 250V 470uF EUR : Not used USA : 250V 470uF EUR : 450V 330uF RX95,RX96 RX91,RX92,RX93,RX94 EUR : Used, USA : Not used...

  • Page 50: Exploded View

    See the last chapter the part list. *Note for replacing parts Place the tape on the cover so that the DENON logo is centered. Trace the text on the tape with a pen tip to stick it onto the panel.
  • Page 51 Personal notes: Personal notes:...

  • Page 52: Packing View

    PACKING VIEW Please refer to the last chapter for the part list. UK plug (UK Only)

  • Page 53: Semiconductors

    SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. RL78/G13 The semiconductor which described a detailed drawing in a schematic diagram are omitted to list. 1. 3. 8 44 1. IC's LQFP 10 10 R5F100FCAFP (DIGITAL : IC11) RL78/G13 1.
  • Page 54 R5F100FCAFP (44pinQFP) Link Pin Name Symbol Function 1 P41/TI07/TO07 ← CLIP Unused 2 P40/TOOL0 ← TOOL0 update 3 _RESET ← nRESET Reset 4 P124/XT2/EXCLKS ← 5 P123/XT1 ← 6 P137/INTP0 ← nSS1 SPI chip select (AIOS: Output) H: Not selected L: Selected 7 P122/X2/EXCLK ←...
  • Page 55 38 P23/ANI3 ← PLD_DA Unused 39 P22/ANI2 ← Audio Power ON/ Unused 40 P21/ANI1/AVREFM ← Trigger cont Unused 41 P20/ANI0/AVREFP ← JIG TACT SW Unused 42 P01/TO00/RxD1 ← IR out/ Unused FAULT 43 P00/TI00/TxD1 ← PLD_CS Unused 44 P120/ANI19 ← EXT_RESET_ Unused BUTTON...
  • Page 56 BD3473KS2 (MAIN : IC53) 7.1ch Sound Processor ●General Description ●Key Specifications It is 8ch independence volume which is the most  Total harmonic distortion: 0.0004%(Typ.) suitable for the realization of 7.1ch surround system.  Maximum output voltage: 4.2V(Typ.) Low shock noise switching was realized by Micro-Step ...
  • Page 57 ●Description of terminal Terminal Terminal Terminal Terminal Symbol Function Symbol Function Symbol Function Symbol Function Number Number Number Number OUTSBL SBLch Output terminal Analog ground terminal INR3 Rch input terminal 3 Analog ground terminal OUTSBR SBRch Output terminal SBLIN1 SBLch input terminal for DSP INL3 Lch input terminal 3 FRIN2...
  • Page 58 www.ti.com SBAS495 – JUNE 2010 PIN CONFIGURATIONS PT PACKAGE LQFP-48 PCM9211 (DIGITAL : IC21) (TOP VIEW) ERROR/INT0 VDDRX NPCM/INT1 RXIN1 MPIO_A0 MPIO_A1 RXIN2 MPIO_A2 RXIN3 MPIO_A3 RXIN4/ASCKIO PCM9211 MPIO_C0 RXIN5/ABCKIO MPIO_C1 RXIN6/ALRCKIO MPIO_C2 RXIN7/ADIN0 MPIO_C3 MODE MPIO_B0 MS/ADR1 MPIO_B1 MC/SCL PCM9211 www.ti.com SBAS495 –...
  • Page 59 PCM9211 Pin Discriptions DESCRIPTION NAME TOLERANT ERROR/INT0 DIR Error detection output / Interrupt0 output NPCM/INT1 DIR Non-PCM detection output / Interrupt1 output MPIO_A0 Multipurpose I/O, Group A(1) MPIO_A1 Multipurpose I/O, Group A(1) MPIO_A2 Multipurpose I/O, Group A(1) MPIO_A3 Multipurpose I/O, Group A(1) MPIO_C0 Multipurpose I/O, Group C(1) MPIO_C1...
  • Page 60 PCM9211 Pin Discriptions...
  • Page 61 SLAS764 – MAY 2011 www.ti.com DEVICE INFORMATION TERMINAL FUNCTIONS, PCM510x PCM5102 (DIGITAL : IC34,35) PCM510X (top view) Table 2. TERMINAL FUNCTIONS, PCM510x TERMINAL DESCRIPTION NAME CPVDD Charge pump power supply, 3.3V CAPP Charge pump flying capacitor terminal for positive rail CPGND Charge pump ground CAPM...
  • Page 62 IR4322 (MAIN : IC71,72) Features Product Summary 2 channel integrated analog input Class D audio amplifier in a small 7 x 7 mm PQFN44 package Half-Bridge, Topology No mechanical heatsink required Full-Bridge High peak music power output 100 W/ 4 Ω IR4322 Output power Split or single power supply (Typical, THD+N=10%)
  • Page 63 Lead Assignments (Top View) Lead Definitions Pin # Description Symbol CLIP Clipping detection output, open drain, referenced to GND COMP2 CH2 PWM comparator input IN-2 CH2 Analog inverting input IN+2 CH2 Analog non-inverting input GND for internal shunt zener diodes to VAA and VSS Floating input negative supply Floating input positive supply IN+1...
  • Page 64 CVIANAM1918A IC32 236810083506S I.C , CLOCK JITTER CVICS210010-CZZR IC33 23171011751AS I.C, REGULATOR(1.8V/TO-252) CVINJM2845DL118 IC34,35 943239100810D I.C, AUDIO DAC, REV.F, DENON CVIPCM5102PWRF IC41 943239101090S I.C , High side switch (TSSOP-B8) CVIBD82065FVJ-E2 Q101 00MHX300012AY T.R, 2SC4081, NPN, UMT3, ROHM CVT2SC4081 Q102 943216500020S T.R,RT1N141C(10K-10K)
  • Page 65 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R369,370 RES, CHIP(1005/5%/0ohm) CRJ06IJ0R0T R371 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R383-386 RES, CHIP(1005/5%/470ohm) CRJ06IJ471T R391,392 RES, CHIP(1005/5%/0ohm) CRJ06IJ0R0T R395 RES, CHIP(1005/5%/0ohm) CRJ06IJ0R0T R406 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R410-412 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R413,414 RES, CHIP(1005/5%/0ohm) CRJ06IJ0R0T R416 RES, CHIP(1005/5%/10Kohm)
  • Page 66 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C430-433 CAP, CHIP(1608, 50V/0.1uF, X7R)_SAMSUNG CCUS1H104KCS C434 CAP, CHIP(1005, 16V/0.1uF, X7R)_SAMSUNG CCUI1C104KCS OTHER PARTS GROUP CN11 WAFER, FFC, SMD(07P-1mm, STRAIGHT) CJP07GA193ZY CN13 WAFER, 2mm, SMD, Vertical, 07p CJP07GA208ZY CN14 PIN SOCKET (09P,1.25mm,ANGLE,B-TO-B) CJP09HJ282Z CN21 PIN SOCKET (27P,1.25mm,ANGLE,B-TO-B)
  • Page 67 MAIN MAIN PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 68 MAIN REF No. Part No. Part Name Remarks Q'ty New R518 RES, CHIP(1608/5%/15Kohm) CRJ10DJ153T R519 RES, CHIP(1608/5%/4.7Kohm) CRJ10DJ472T R520 RES, CHIP(1608/5%/10Kohm) CRJ10DJ103T R523,524 RES, CHIP(1608/5%/100Kohm) CRJ10DJ104T R525 RES, CHIP(1608/5%/220ohm) CRJ10DJ221T R526 RES, CHIP(1608/5%/100Kohm) CRJ10DJ104T R527 RES, CHIP(1608/5%/47Kohm) CRJ10DJ473T R528 RES, CHIP(1608/5%/470ohm) CRJ10DJ471T R529 RES, CHIP(1608/5%/3.3Kohm)
  • Page 69 MAIN REF No. Part No. Part Name Remarks Q'ty New R832 RES, CHIP(1608/5%/180ohm) CRJ10DJ181T R833 RES, CHIP(1608/5%/10Kohm) CRJ10DJ103T R835 RES, CHIP(1608/5%/180ohm) CRJ10DJ181T R836 RES, CHIP(1608/5%/470ohm) CRJ10DJ471T R837 RES, CHIP(1608/5%/180ohm) CRJ10DJ181T R838-840 RES, CHIP(1608/5%/10Kohm) CRJ10DJ103T R901 RES, CHIP(6432/5%/68Kohm) CRJ01HJ683T R902 RES, CHIP(2012/5%/0ohm) CRJ18AJ0R0T R903 RES, CHIP(6432/5%/1.5ohm/1W)
  • Page 70 MAIN REF No. Part No. Part Name Remarks Q'ty New C515 CAP, CHIP(1608, 50V/100pF, C0G)_SAMSUNG CCUS1H101JAS C517 CAP, SMD ELECT(50V/1uF) CCEC1HMVG1R0T C518,519 CAP, CHIP(1608, 50V/2200pF, X7R)_SAMSUNG CCUS1H222KCS C520 CAP, SMD ELECT(16V/22uF) CCEC1CMVG220T C521 CAP, CHIP(2012, 50V/4700pF, MURATA GRM21) CCUMUC1H472JAM C522,523 CAP, CHIP(3216, 50V/0.1uF, MURATA GRM31) CCUMUP1H104JAM C524,525...
  • Page 71 MAIN REF No. Part No. Part Name Remarks Q'ty New C902 943134503130D CAP , ELECT (470uF/250V, 105'C, 25.4X35) CCET250VTDA471NW 1 C903 CAP, CHIP(2012, 50V/0.47uF, X7R)_SAMSUNG CCUC1H474KCS C904 CAP, CHIP(2012, 50V/1uF, X7R, X7S)_SAMSUNG CCUC1H105KCS C905 CAP, CHIP(2012, 50V/1000pF, X7R)_SAMSUNG CCUC1H102KCS C906 CAP, CHIP(2012, 50V/2200pF, X7R)_SAMSUNG CCUC1H222KCS C907...
  • Page 72 MAIN REF No. Part No. Part Name Remarks Q'ty New ★ PROTECTOR , THERMAL ASS'Y CRTST22110070WZA 1 ★ PROTECTOR , THERMAL (110'C, 70mm) CRTST22110070W ★ PROTECTOR , THERMAL ASS'Y (110'C, 70mm) CRTST22110070WA ★ SCREW CTB3+8JR ★ SCREW CTB3+8JR ★ SCREW CTB3+10JR ★...
  • Page 73 MAIN PCB FRONT LED SUPPORT CUP12669Z-8 943189100840D CORE MODULE ASS'Y (HEOSAMP) CNVH/AMPCOREMODULEA PLATE 2 , WHIGHT CMD1A914 42141002500AD BADGE , DENON (same as DA300USB) CGB1A277 SURPORT , PCB CDF1A043 HEAT SINK , PLATE CMY1A410 BOTTOM CHASSIS CUA1A356Z PLATE 1 , WHIGHT...
  • Page 74 PACKING PACKING ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
