  • Page 1 OPERATING MANUAL 1-8DM VERSION 1.1 www.blastrac.com 1-800-256-3440...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction 2. Machine Description 3. Safety 4. Initial Operation 5. Operation 6. Maintainece 7. VFD Trouble Codes 8. Technical Data 9. Contact...

  • Page 3: Introduction

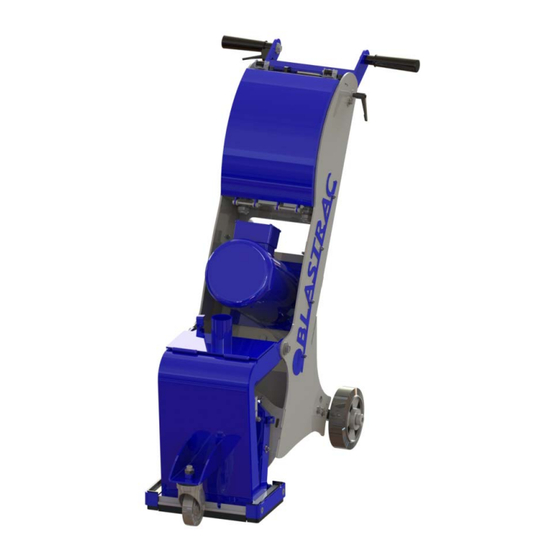

    Only authorized and trained personnel may operate this machine. 2. Machine description The Blastrac 1-8DM is a downward blasting machine with a closed abrasive circuit, designed for the pre-treatment of horizontal surfaces. The bouncing impact of metallic abrasive onto the surface to be treated, thoroughly removes surface contaminants, coats of paint, sealants and thin coatings.

  • Page 4: Safety

    3. Safety Before operating the machine, the personnel must be familiar with the safety instructions given in this manual. Keep this manual near the machine, so it can always be consulted. Safety precautions  The surface to be treated must be swept clean to remove stones, screws etc. ...
  • Page 5  The dust container / bag of the dust collector must be emptied regularly. Comply with the local waste treatment regulations considering the removed material.  The weight of the 1-8DM is 230lbs. Always use a team lift to pick up the machine.

  • Page 6: Initial Operation

    4. Initial operation Before using the machine, it is of great importance to inspect the machine. It is not permitted to use the machine if the machine safety is not according the checkpoints below. Checkpoints power supply  Use only extension cables for extending the main cable that are sized and marked in accordance with the overall power consumption of the machine.

  • Page 7: Operation

    5. Operation Controls The ON/OFF switch (1) controls the blast wheel motor. The shot valve lever (2) controls the amount of abrasive going into the blast wheel. Observe the Ammeter (3) to ensure that the proper amount of shot is being let through the shot valve.
  • Page 8 During operation of the 1-8DM, the following additional safety instructions must be followed closely: Before switch on  Check if the distance from magnet to the floor is approx. 1/4”. Check this height with aluminum strips.  Check the distance from brush sealing to the floor. This may be max. 1/32”.

  • Page 9: Maintainece

    Store the cleaned machine in a dry room. Protect the electrical motor from moisture, heat, dust and shocks. Remove the abrasive out of the abrasive storage hopper. All repair work has to be done by qualified Blastrac personnel, this guarantees a safe and reliable machine.

  • Page 10: Vfd Trouble Codes

    7. VFD Trouble Codes...

  • Page 11: Technical Data

    8. Technical Data 1-8DM BLAST WHEEL MOTOR 1.32 kW/1.67kW POWER (110V/220V) APPLICATION CONCRETE LENGTH (L) 41" WIDTH (W) 21" MINIMUM HEIGHT HANDLE 36" (H1) MAXIMUM HEIGHT HANDLE 41" (H2) WEIGHT...
  • Page 12 SERVICE MANUAL 1-8DM VERSION 1.1 www.blastrac.com 1-800-256-3440...

  • Page 13: Contact

    Index 1. Spare parts 2. Accessories 3. Electrical 4. Contact...
  • Page 14 Spare Parts Fig. 01...
  • Page 15 Fig. 01 Item Part Number Description QTY. PG-10522 CHASSIS - 1-8DM PG-10889 MOTOR – 110V PG -10890 MOTOR – 220V 6908170-EU MOTOR BASE PLATE PG -10846 NUT/COUPLING 6908190 SHEAVE 6908380 BUSHING/ TAPER LOCK 6908200 SHEAVE 6908370 TAPERLOCK BUSHING P000107-EU BELT GUARD...
  • Page 16 Fig. 02...
  • Page 17 Fig. 02 Item Part number Description Qty. PG-10521 BLAST HOUSING 979085 BEARING UNIT 9790660 BRACKET/ALUM BRG MTG SEAL/BEARING MOUNTING PA-11203 PLATE 9763100 4923050-EU WHEEL-KIT 6.50" 9763240-EU CONTROL CAGE BRACKET P000001 MAGNETIC VALVE ASSY 9700120 CLAMP/CONTROL CAGE 6916120 NIPPLE/ THROTTLE & NUT PA-11206 LATCH/BLASTHOUSING LID PA-11211...
  • Page 18 Fig. 03...
  • Page 19 Fig. 03 Item Part number Description Qty. CP-10888 VARIABLE FREQUENCY DRIVE – 120V CP-10887 VARIABLE FREQUENCY DRIVE – 220V PA-11212 VFD MOUNTING PLATE PG-10529 VFD LID 800931 HEX CAP SCREW CP-10879 DRAW LATCH CP-10882 NYLON ADJUSTABLE HANDLE CP-10880 CARRIAGE BOLT CP-10886 SHOT CABLE CP-10874...
  • Page 20 Accessories Item Part number Description Qty. PG-10539 4” Edge Pattern Reducer PG -10540 5” Edge Pattern Reducer PG -10541 6” Edge Pattern Reducer...
  • Page 21 Electrical Fig. 04 220V...
  • Page 22 Fig. 05 110V...
  • Page 23 13201 North Santa Fe Avenue  Oklahoma City, OK 73114  Ph: 800-256-3440  F: 405-478-8608 blastrac.com Product Warranty Standard Equipment Products: Blastrac warrants its Blastrac Standard Equipment Products against defects in quality of material and workmanship, under normal and proper use for a period of 1 Year from the date of delivery, as noted on the returned warranty registration card, or, in the case of Rental Fleet Machines, 180 Days from the date of assignment to Rental Fleet.
  • Page 24 Blastrac Returned Merchandise Authorization (RMA) Form. Blastrac will then send the RMA form to the customer authorizing the return of the parts for warranty evaluation. The parts must be received within sixty (60) days following the RMA origination date or the warranty claim will be denied.
  • Page 25 ® the information recorded here by registering online at blastrac.com, or complete this page and fax to 866-485-1046, or if you prefer, detach and mail to: Blastrac, 13201 North Santa Fe Avenue, Oklahoma City, OK 73114-9901...
  • Page 26 Contact Blastrac NA 13201 North Santa Fe Avenue Oklahoma City, OK 73114 Tel: 800-256-3440 Fax: 405-478-8608 www.blastrac.com...
