Hardware Installation

ENH1350EXT

1. Connect one end of the Ethernet cable into the LAN port
(PoE) of the AP/ Bridge and the other end to the PoE
port on the PoE adapter.
2. Connect the Power cord with the PoE Adapter and plug
the other end into an electrical outlet.
3. Connect the second Ethernet cable into the LAN port of
the PoE adapter and the other end to the Ethernet port
on the computer.
4. Screw on the provided antennas to the top of this device.
Note: The AP/Bridge should ONLY be powered via
Ethernet cable connected to the included PoE Adapter.

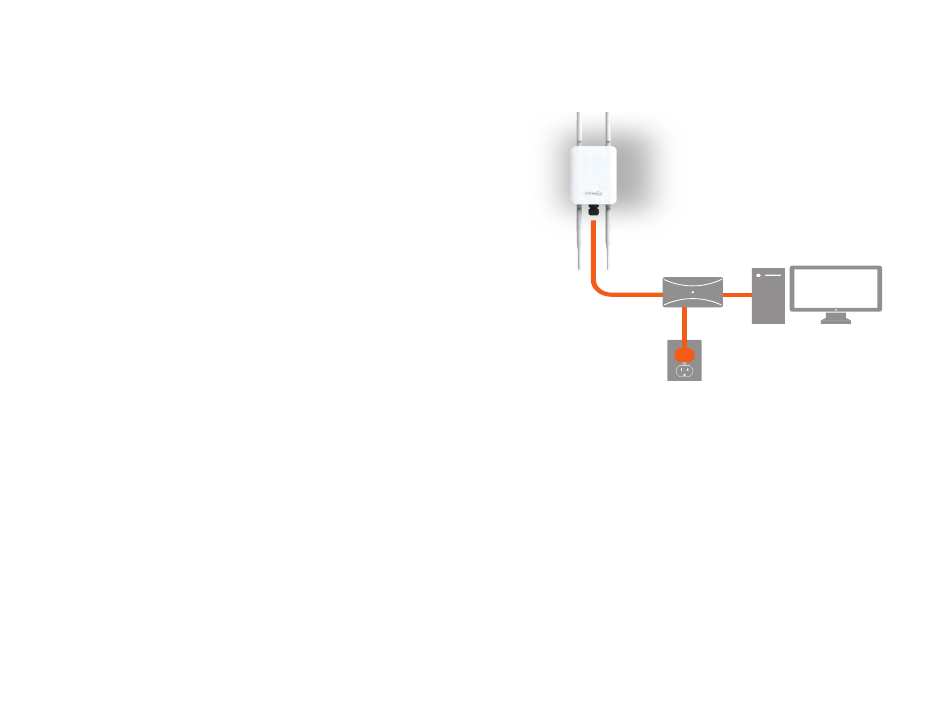

This diagram depicts the hardware configuration.
Ethernet
Power
Outlet
Note: The AP/Bridge should ONLY be powered via
Ethernet cable connected to the included PoE Adapter.
25
PoE Adapter
PC
