MARTINDALE CT60 Instruction Manual

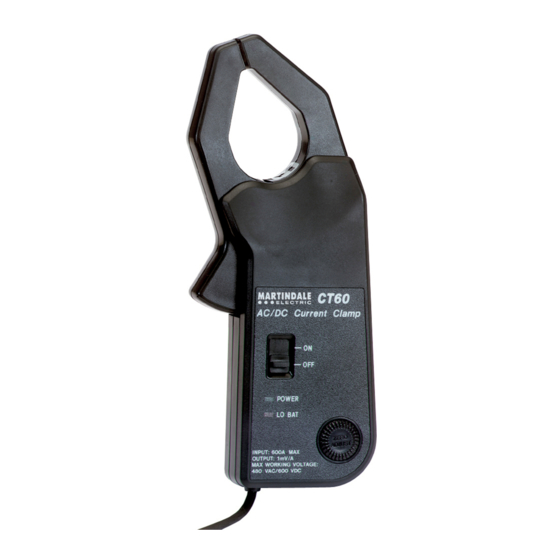

Ac/dc current clamp

Enlarged version

SPECIFICATIONS

Captured Conductor Size: 30mm maximum.

Low Battery Indicator: Red LED lighting.

Operating Temperature: 0° C to 50° C, Max 70% R.H.

Storage Temperature: -20° C to +70° C, Max 80% R.H.

Weight: 290gm typical

Dimensions: 178mm (H) x 70mm (W) x 33mm (D).

Accuracy (At 23° ± 5° C, 70% R.H maximum)

DC Current: 0 to 600A, ± (2% reading + 2A)

AC current: 50Hz to 400Hz

0 to 400A, ± (2% reading + 2A)

400A to 500A, ± (3% reading + 2A)

500A to 600A, ± (6% reading + 2A)

Load Resistance: 10K Typical.

Output: 0 to 600mV (AC and DC) for 0 to 600A.Met

Metrohm House, Imperial Park, Imperial Way, Watford, Hertfordshire, WD24 4PP, UK

Tel: 01923 441717 Fax: 01923 446900.

Due to policy of continuous development, Martindale reserves the right to alter equipment specification and description

outlined in this document without prior notice. No part of this document shall be deemed to be part of any contract for the

equipment unless specifically referred to as an inclusion within such contract.

CT60

AC/DC Current

Clamp

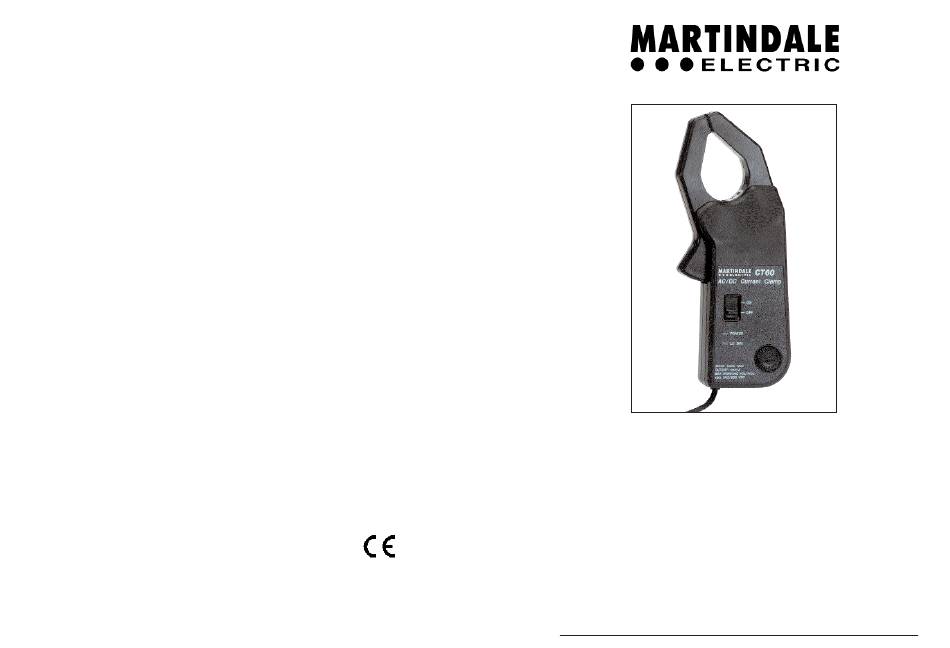

INSTRUCTION MANUAL

Table of Contents

Do you have a question about the CT60 and is the answer not in the manual?

Page 1 Metrohm House, Imperial Park, Imperial Way, Watford, Hertfordshire, WD24 4PP, UK Tel: 01923 441717 Fax: 01923 446900. Due to policy of continuous development, Martindale reserves the right to alter equipment specification and description INSTRUCTION MANUAL outlined in this document without prior notice. No part of this document shall be deemed to be part of any contract for the equipment unless specifically referred to as an inclusion within such contract.
Page 2 INTRODUCTION 1. In the case of DC current, the output is positive when the The model CT60 AC/DC Current Clamp is an accessory which current flows from the top to the underside of the clamp. The red will allow your multimeter to measure electrical current up to 600 4mm plug is positive.
