HBM T12 Manual

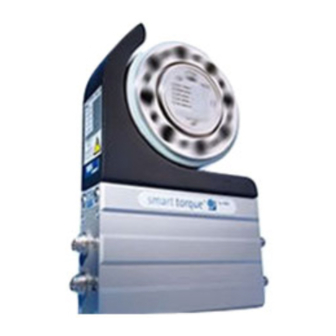

Digital torque transducer
Hide thumbs Also See for T12:
Table of Contents

Advertisement

Quick Links

Mounting Instructions
Digital
Torque Transducer
T12
A1979−10.0 en

Advertisement

Table of Contents
loading

Related Manuals for HBM T12

Summary of Contents for HBM T12

  • Page 1 Mounting Instructions Digital Torque Transducer A1979−10.0 en...

  • Page 3: Table Of Contents

    Contents Page Contents Safety instructions ..........Markings used .
  • Page 4 Connector pin assignment ....... . Supply voltage ......... . 10 Shunt signal .

  • Page 5: Safety Instructions

    (2) this device must accept any interference received, including in- terference that may cause undesired operation. The FCC identifier or the unique identifier, as appropriate, must be displayed on the device. Model FCC ID T12, 100 Nm, 200 Nm 2ADAT−T12S2 12438A−T12S2 T12, 500 Nm, 1 kNm 2ADAT−T12S3 12438A−T12S3 T12, 2 kNm, 3 kNm 2ADAT−T12S4...
  • Page 6 FCC regulations. Appropriate use The T12 torque flange is used exclusively for torque, angle of rotation and power measurement tasks within the load limits stipulated in the specifications. Any other use is not appropriate.
  • Page 7 Use as a machine element The torque flange can be used as a machine element. When used in this manner, it must be noted that, to favor greater sensitivity, the transducer is not designed with the safety factors usual in mechanical engineering. Please refer here to the section “Load carrying capacity limits”...
  • Page 8 or destroyed by non-designated use of the transducer or by non-compliance with the mounting and operating instructions, these safety instructions or any other applicable safety regulations (BG safety and accident prevention regulations), when using the transducers. Transducers can break, particularly in the case of overloading.

  • Page 9: Markings Used

    Meaning: CE mark The CE mark enables the manufacturer to guarantee that the product complies with the requirements of the relevant EC directives (the Declaration of Conformity can be found on the HBM website at www.hbm.com under HBMdoc). Lable example with FCC ID and IC number. Location on the stator of the device.

  • Page 10: The Markings Used In This Document

    1.2 The markings used in this document Important instructions for your safety are specifically identified. It is essential to follow these instructions in order to prevent accidents and damage to property. Symbol Significance This marking warns of a potentially dangerous situation in which failure to WARNING comply with safety requirements can result in death or serious physical injury.

  • Page 11: Scope Of Supply

     protect your settings or load the factory settings  display and evaluate the measured values Instructions for installing the T12 Assistant on your PC can be found in the “T12 Assistant Control Software” Quick Start Guide (pdf file on the T12 System CD and included in the “Setup Toolkit for T12”...

  • Page 12: Application

    Application The T12 digital torque transducer acquires static and dynamic torque at stationary or rotating shafts, determines the rotational speed or angle of rotation while specifying the direction of rotation, and calculates the power. It is designed for:  highly dynamic torque measurements when testing the power and functionality of engines and compound sets ...

  • Page 13: Signal Flow

    Signal flow Low pass LP1: 0.05 Hz to 4000 Hz Low pass LP2: 0.05 Hz to 100 Hz Low pass LP: 0.1 Hz to 80 Hz Fig. 4.1: Signal flow diagram The torque and the temperature signal are already digitized in the rotor and transmission is noise-free.

  • Page 14: Structure And Mode Of Operation

    For settings over 100 Hz (torque low-pass filter 1 only), phase delay compensation is run for the angle of rotation signal. This ensures that torque and angle of rotation values that are measured simultaneously are also output simultaneously. Two pulse strings, offset by 90, are also available as RS422-compatible signals for rotational speed and angle of rotation.
  • Page 15 Side A Side B Transmitter head Rotor Stator Slotted disc (option) Rotational speed sensor (option) Housing Fig. 5.1: Mechanical structure, exploded view A1979−10.0 en...

  • Page 16: Mechanical Installation

     Comply with the mounting dimensions to enable correct operation. An appropriate shaft flange enables the T12 torque flange to be mounted directly. It is also possible to mount a joint shaft or relevant compensating element directly on the rotor (using an intermediate flange when required).

  • Page 17: Conditions On Site

    Darmstadt factory for testing. 7.2 Conditions on site The T12 torque transducer is protected to IP54 according to EN 60529. Protect the transducer from coarse dirt, dust, oil, solvents and moisture. During operation, the prevailing safety regulations for the security of personnel must be observed (see “Safety instructions”).

  • Page 18: Installing The Slotted Disc (Rotational Speed Measuring System Only)

    7.4 Installing the slotted disc (rotational speed measuring system only) To prevent damage to the rotational speed measuring system’s slotted disc during transportation, it is not mounted on the rotor. The customer must attach it to the mounting ring before installing the rotor in the shaft train. The mounting ring and the associated rotational speed sensor are already mounted at the factory.

  • Page 19: Installing The Rotor

    7.5 Installing the rotor Usually the rotor type plate is no longer visible after installation. This is why we include with the rotor additional stickers with the important characteristics, which you can attach to the stator or any other relevant test-bench components.
  • Page 20 1. Prior to installation, clean the plane faces of the transducer flange and the counter flange. For safe torque transfer, the faces must be clean and free from grease. Use a piece of cloth or paper soaked in solvent. When cleaning, make sure that you do not damage the transmitter coils.

  • Page 21: Fitting The Protection Against Contact (Option)

    Important Use a threadlocker (medium strength, e.g. LOCTITE) to glue the screws into the counter thread to exclude prestressing loss due to screw slackening, in the event of alternating loads. NOTE Comply with the maximum thread reach as per Table 6.1. Otherwise significant measurement errors may result from torque shunt, or the transducer may be damaged.
  • Page 22 Important Use a threadlocker (medium strength, e.g. LOCTITE) to glue the connecting screws into the counter thread. 1. Remove the side cover plates on the stator housing (see Fig. 6.4.) Cover plate Cover plate Fig. 6.4: Cover plates on the stator housing 2.
  • Page 23 Threaded pin Fig. 6.5: Cut out the film 3. For 5 kN@m and 10 kN@m measuring ranges only: remove the threaded pins from the tapped holes on both sides of the stator. Screw the spacing bolt into the tapped hole on the side of the rotational speed sensor (see Fig.
  • Page 24 4. Screw the cover plate onto the side parts (screws with hexagon socket 2 a.f.; tightening torque M = 1 N@m). Note that the cover plate with cutouts must be fitted onto the side with countersunk holes! (see Fig. 6.7). Side part Cover plate with holes Cover plate with cutouts...
  • Page 25 Fig. 6.8: Angled cover plates (5 kN@m and 10 kN@m measuring ranges) 5. Attach each of the side parts to the stator housing with two M6x25 hexagon socket screws (5 a.f.). Hand-tighten the screws. 6. Screw the side parts together at the top, by hand (two M6x30 hexagon socket screws;...
  • Page 26 M6 x 30 M6 x 25 M6 x 25 Fig. 6.9: Fit the protection against contact halves 7. Align the protection against contact in such a way that its end face is parallel to the stator housing. Locking screw (on both sides) Parallel surfaces Fig.

  • Page 27: Installing The Stator

    (option), see Chapter 7.7.3 . Fig. 6.11: Mounting holes in the stator housing (viewed from below) With the T12/5 kN@m and T12/10 kN@m torque transducers, we recommend additionally supporting the stator at the protection against contact. Fig. 6.12 shows an example of how to attach an angle bracket with a bolt (A) or with a threaded rod (B).

  • Page 28: Preparing With The Mounting Kit (Included Among The Items Supplied)

    Section through the countersunk hole in the protection against contact Fig. 6.12: Supporting the stator with an angle bracket (5 kN@m and 10 kN@m) 7.7.1 Preparing with the mounting kit (included among the items supplied) The supplied mounting kit contains self-adhesive spacers, to make it easier for you to align the stator to the rotor.
  • Page 29 Radial alignment with spacers The spacers should preferably be attached to the transmitter head, offset by 90, as shown in Fig. 6.14. If your stator is equipped with a rotational speed measuring system, you must either shorten the spacers to an appropriate length or attach them slightly offset, next to the rotational speed measuring system.

  • Page 30: Aligning The Stator

    Outer edge of transmitter head Red line Fig. 6.15: Axial position of the spacers Now remove the protective film and attach the spacers to the transmitter head, as described. Important Remove the spacers after installation. 7.7.2 Aligning the stator 1. Position the stator on an appropriate mounting base in the shaft train, so that there are sufficient opportunities for horizontal and vertical adjustments to be made.
  • Page 31 When data are being exchanged via the CAN Bus or the PROFIBUS, the LED flashes green. You can also use the T12 Assistant to check for the correct alignment. The LED must stay green in the “Rotor clearance setting mode”.

  • Page 32: Stator Installation Over The Protection Against Contact (Option)

    7.7.3 Stator installation over the protection against contact (option) You can also axially flange the stator over the protection against contact (material: aluminum). Holes are provided in the side parts of the protection against contact for this purpose. For this mounting, we recommend M6 fillister-head screws with hexagon sockets in accordance with DIN EN ISO 4762;...

  • Page 33: Optical Rotational Speed/Angle Of Rotation Measuring System (Option)

    Fig. 6.18: Face-mounting on the engine shielding 7.8 Optical rotational speed/angle of rotation measuring system (option) As the stator with the optical rotational speed sensor only partially encloses the slotted disc, if there is sufficient space available for installation, you can subsequently move the stator tangentially over the ready-mounted rotor.

  • Page 34: Radial Alignment

    Slotted disc Flange B Alignment lines Sensor pickup Fig. 6.19: Position of the slotted disc in the rotational speed sensor 7.8.2 Radial alignment The rotor axis and the optical axis of the rotational speed sensor must be along a line at right angles to the stator platform. A conical machined angle (or a colored mark) in the center of flange B and a vertical marker line on the sensor pickup serve as aids to orientation.
  • Page 35 Fig. 6.20: Alignment marks on rotor and stator Connect the power line (plug 1). Switch the LED display mode of the T12 Assistant to “optical rotational speed system” setting mode and turn the rotor. Notice the LED to the right of plug 4;...

  • Page 36: Led Status Display

    The phase relation of the two sensor signals is not optimum, there is a variation of 10 to 30 The phase relation of the two sensor signals is not correct, there is a variation of more than 30 For more information on setting mode, look in the T12 Assistant online Help. A1979−10.0 en...

  • Page 37: Electrical Connection

    Electrical connection 9.1 General information Detailed instructions for connecting the T12 to the CAN Bus or the PROFIBUS can be found in the “T12 CAN Bus/PROFIBUS” interface description (in pdf format) on the T12 system CD. To make the electrical connection between the torque transducer and the measuring amplifier, we recommend using shielded, low-capacitance measurement cables from HBM.
  • Page 38 3 loops Fig. 6.21: Installation Example If the core has to be removed for any purpose (e.g. for maintenance), it must be replaced on the cable. Use only wounded core (toroidal core) of the correct type. Type: Vitroperm R Model No.: T60006−22063W517 Size: external diameter x internal diameter x height = 63 x 50 x 25 The core should be placed as close as possible to the connector.

  • Page 39: Shielding Design

    9.2 Shielding design The cable shield is connected in accordance with the Greenline concept. This encloses the measurement system (without the rotor) in a Faraday cage. It is important that the shield is laid flat on the housing ground at both ends of the cable.
  • Page 40 Important If plug 1 is used to power the device a tape wound core (toroidal core) is nec- cessary to suppresse high frequencies in order to ensure compliance with FCC regulations NOTE Torque transducers are only intended for operation with a DC supply voltage (separated extra-low voltage), see page 43.
  • Page 41 Assignment for plug 2: Rotational speed measuring system with reference signal Plug Assignment Color Sub-D code plug pin Rotational speed measurement signal (pulse Binder 423 string, 5 V ; 0) device plug Reference signal (1 pulse/rev., 5 V Rotational speed measurement signal (pulse string, 5 V ;...
  • Page 42 Important If plug 3 is used to power the device a tape wound core (toroidal core) is nec- cessary to suppresse high frequencies in order to ensure compliance with FCC regulations. NOTE Do not use cable KAB149 to connect the voltage output signal at AP01i to ML01B of the MGCplus system! This cable is only suitable for connecting the frequency output signal.

  • Page 43: Supply Voltage

    DC voltage network , additional precautions must be taken to discharge excess voltages. The notes in this section relate to the self-contained operation of the T12 without HBM system solutions. The supply voltage is electrically isolated from signal outputs and shunt signal inputs.
  • Page 44 voltage (24 V) can be up to 50 m long and in the nominal (rated) voltage range, 20 m long (see Accessories, page 88). If the permissible cable length is exceeded, you can feed the supply voltage in parallel over two connection cables (plugs 1 and 3). This enables you to double the permissible length.

  • Page 45: Shunt Signal

    Shunt signal The T12 torque transducer supplies a shunt signal, at either 50% or 10% of the nominal (rated) torque, as selected. Activate this function via the T12 Assistant or the shunt signal trigger on plug 1 or plug 3 (see Section 9.3). The last shunt selected in the T12 Assistant is then triggered.

  • Page 46: Load-Carrying Capacity

    The torque transducer is suitable for measuring static and dynamic torques. The following apply to the measurement of dynamic torque:  The T12 calibration run for static measurements is also valid for dynamic torque measurements.  The natural frequency f...

  • Page 47: Teds

    A template is also stored, which provides the conversion factors for the different physical units. The T12 is a transducer, that is to say, the T12 does not read the TEDS blocks, it only writes them. (We therefore strongly advise against editing the values with the HBM TEDS Editor, for example!) You can read the data of the TEDS block with the TEDS Editor.
  • Page 48 7 first position of stator ident no. Area 3: Data specified by the manufacturer and the user are contained in this area. Typical values for an HBM T12/1 kN@m torque transducer are shown in the “Value” column of the table below. Torque HBM has already written the “Frequency/Pulse Sensor”...
  • Page 49 Format: day-month-year. Abbreviations for the months: Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec. Calibration Initials HBM or PTB Initials of the calibrator or calibration laboratory concerned. Calibration Period days Time before recalibration,...
  • Page 50 Format: day-month-year. Abbreviations for the months: Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec. Calibration Initials HBM or Initials of the calibrator or calibration laboratory concerned. Calibration Period (Days) days Time before recalibration,...
  • Page 51 Rotational speed/angle of rotation HBM has already written the “Frequency/Pulse Sensor” template for the rotational speed measurand. Template: Frequency/Pulse Sensor Parameter Value Unit Required Explanation user rights Transducer Electrical Pulse Signal Type Sensor The physical measurand and Minimum Frequency 0.000...
  • Page 52 Template: Frequency/Pulse Sensor Parameter Value Unit Required Explanation user rights Measurement location ID Identification number for the measuring point. Can be assigned according to the application. Possible values: a number from 0 to 2047. Transducer Electrical Pulse Signal Type Sensor The physical measurand and Minimum Frequency 0.000E+000...
  • Page 53 Template: Frequency/Pulse Sensor Parameter Value Unit Required Explanation user rights Calibration Initials HBM or Initials of the calibrator or calibration laboratory concerned. Calibration Period days Time before recalibration, (Days) calculated from the date specified under Calibration Date. Measurement location ID Identification number for the measuring point.

  • Page 54: Maintenance

    Maintenance The T12 torque transducer without a rotational speed measuring system is maintenance-free. Cleaning the rotational speed measuring system During operation and depending on the ambient conditions, the slotted disc of the rotor and the associated optical system of the stator sensor can get dirty.

  • Page 55: Waste Disposal And Environmental Protection

    Packaging The original packaging of HBM devices is made from recyclable material and can be sent for recycling. Store the packaging for at least the duration of the warranty. In the case of complaints, the torque flange must be returned in the original packaging.

  • Page 56: Specifications

    Specifications 15.1 Nominal (rated) torque 100 NVm to 1 kNVm Type Accuracy class 0.03 Torque measuring system Nm Nominal (rated) torque M kNm Nominal (rated) rotational speed n Option 3, code L 15 000 12 000 Option 3, code H 18 000 16 000 Non-linearity including hysteresis, related to...
  • Page 57 Nm Nominal (rated) torque M kNm Output signal at torque = zero Frequency output 10 kHz/60 kHz 10/60 Voltage output Nominal (rated) output signal Frequency output with positive nominal (rated) torque 10 kHz/60 kHz 15/90 (5 V symmetrical with negative nominal (rated) torque 10 kHz/60 kHz 5/30 (5 V symmetrical Voltage output...
  • Page 58 Nm Nominal (rated) torque M kNm Rotational speed/angle of rotation measuring system Optical, using infrared light and a metallic slotted disc Mechanical increments number Positional tolerance of the increments "0.05 Tolerance of the slot width "0.05 Pulses per revolution (adjustable) number 360;...
  • Page 59 Nm Nominal (rated) torque M kNm Temperature effect per 10 K in the nominal (rated) temperature range on the output signal, related to the actual value < 0.03 of the signal span on the zero signal < 0.03 Residual ripple <...
  • Page 60 Fieldbuses CAN Bus Protocol − CAN 2.0B, CAL/CANopen-compatible Meas. values/ Data rate max. 4800 (PDO) Hardware bus link as per ISO 11898 Baud rate kBit/s 1000 Maximum line length Connector − 5-pin, M12x1, A-coding per CANopen DR−303−1 V1.3, electrically isolated from power supply and measurement ground PROFIBUS DP Protocol...
  • Page 61 Nm Nominal (rated) torque M kNm General information − Emission (per FCC 47 Part 15, Subpart C) Emission (per EN61326−1, Table 3) RFI voltage − Class A RFI power − Class A RFI field strength − Class A Immunity from interference (EN61326−1, Table A.1) Electromagnetic field (AM) Magnetic field...
  • Page 62 Nm Nominal (rated) torque M kNm Mechanical values kNm/ Torsional stiffness c degree Torsion angle at M 0.048 0.043 0.055 0.066 Stiffness in the axial direction c kN/mm Stiffness in the radial direction c kN/mm kNm/ degree Stiffness during the bending moment round a radial axis c 11.5 Maximum deflection at longitudinal limit...

  • Page 63: Nominal (Rated) Torque 2 KnM To 10 KnM

    15.2 Nominal (rated) torque 2 kNVm to 10 kNVm Type Accuracy class 0.03 Torque measuring system kNm Nominal (rated) torque M Nominal (rated) rotational speed n Option 3, code L 12 000 10 000 Option 3, code H 16 000 14 000 12 000 Non-linearity including hysteresis, related to...
  • Page 64 Nominal (rated) torque M kNm Output signal at torque = zero Frequency output 10 kHz/60 kHz 10/60 Voltage output Nominal (rated) output signal Frequency output with positive nominal (rated) torque 10 kHz/60 kHz 15/90 (5 V symmetrical with negative nominal (rated) torque 10 kHz/60 kHz 5/30 (5 V symmetrical Voltage output...
  • Page 65 Nominal (rated) torque M kNm Rotational speed/angle of rotation measuring system Optical, using infrared light and a metallic slotted disc numbe Mechanical increments Positional tolerance of the increments "0.05 Tolerance of the slot width "0.05 Pulses per revolution (adjustable) numbe 360;...
  • Page 66 Nominal (rated) torque M kNm Temperature effect per 10 K in the nominal (rated) temperature range on the output signal, related to the actual value < 0.03 of the signal span on the zero signal < 0.03 Residual ripple < 3 Angle of rotation degree Accuracy...
  • Page 67 Fieldbuses CAN Bus Protocol − CAN 2.0B, CAL/CANopen−compatible Meas. values/ Data rate max. 4800 (PDO) Hardware bus link as per ISO 11898 Baud rate kBit/s 1000 Maximum line length Connector − 5-pin, M12x1, A-coding per CANopen DR−303−1 V1.3, electrically isolated from power supply and measurement ground PROFIBUS DP Protocol...
  • Page 68 Nominal (rated) torque M kNm General information Emission (per EN61326−1, Table 3) RFI voltage − Class A RFI power − Class A RFI field strength − Class A Immunity from interference (EN61326−1, Table A.1) Electromagnetic field (AM) Magnetic field Electrostatic discharge (ESD) Contact discharge Air discharge Fast transients (burst)
  • Page 69 Nominal (rated) torque M kNm Mechanical values kNm/ Torsional stiffness c 2300 2600 4600 7900 Torsion angle at M degrees 0.049 0.066 0.06 0.07 Stiffness in the axial direction c kN/mm 1000 1600 Stiffness in the radial direction c kN/mm 1300 1500 1650...

  • Page 70: Dimensions

    Dimensions 16.1 Rotor 100 NVm to 200 NVm 30 6x60 d View A 60 30 = measuring plane 6x60 (center of the installation point) 60 6x60 d Dimensions without tolerances, per DIN ISO 2768−mK Dimensions in mm (1 mm = 0.03937 inches) Measuring range 100 Nm/200 Nm 47.15...

  • Page 71: Rotor 500 NM To 10 KnM

    16.2 Rotor 500 NVm to 10 kNVm d View A = measuring plane (center of the installation point) Dimensions without tolerances, per DIN ISO 2768−mK d Measuring range Dimensions in mm (1 mm = 0.03937 inches) 500 Nm/1 kNm 45.7 2 kNm/3 kNm 47.7 5 kNm...

  • Page 72: Stator 100 NM To 200 NM With Rot.speed Meas. System

    16.3 Stator 100 Nm to 200 Nm with rot.speed meas. system View Z Dimensions in mm (1 mm = 0.03937 inches) min. 43 approx. 100 Reserved additional space for Reserved additional space for connected state min. 10 connection cable with plug Reserved additional space for mounting and dismounting...

  • Page 73: Stator 100 NM To 200 NM With Rot. Speed Meas. System

    16.4 Stator 100 Nm to 200 Nm with rot. speed meas. system Dimensions in mm (1 mm = 0.03937 inches) View A For rotational speed measuring system and rotational speed measuring system with reference marker only A1979−10.0 en...

  • Page 74: Stator 100 NM To 10 KnM With Rot. Speed Meas. System

    16.5 Stator 100 Nm to 10 kNm with rot. speed meas. system View Z Dimensions in mm (1 mm = 0.03937 inches) approx. 100 min. 43 Reserved additional Reserved additional space for connected state min. 10 space for connection cable with plug Reserved additional space for mounting and dismounting Maximum thread reach 10...

  • Page 75: Stator 100 NM To 200 NM With Prot. Against Contact

    16.6 Stator 100 Nm to 200 Nm with prot. against contact Dimensions in mm (1 mm = 0.03937 inches) [Protection against contact cpl.] [Protection against contact cpl.] [Housing] 118 [Housing] [Covering agent] 0.55 View without housing half Cutaway dimension (in rotational speed measuring system only) and without Part of the standard version! cutaway in the standard version (without...

  • Page 76: Stator 100 NM To 200 NM With Prot. Against Contact

    16.7 Stator 100 Nm to 200 Nm with prot. against contact View B Dimensions in mm (1 mm = 0.03937 inches) −2 Connection holes Z View without covering agent [Housing] Connecting hole with countersinking A1979−10.0 en...

  • Page 77: Stator 500 NM To 1 KnM With Prot. Against Contact

    16.8 Stator 500 Nm to 1 kNm with prot. against contact (58) (Protection against contact, cpl.) (56)  139 (Cover plate) (Protection (Cover plate) against contact)  223 View without  205 protection against  196 contact half  187 −2 View A Connection holes Z...

  • Page 78: Stator 2 KnM To 10 KnM With Prot. Against Contact

    16.9 Stator 2 kNm to 10 kNm with prot. against contact (Housing) d (Cover plate) (Cover plate) View without protection against contact half d d d View A d Connection holes Z Protection against contact Connecting hole with countersinking View without cover plate Measuring range Dimensions in mm (1 mm = 0.03937 inches) 2 kNm/3 kNm...

  • Page 79: Protection Against Contact Plates 100 NM To 200 NM

    16.9.1 Protection against contact plates 100 Nm to 200 Nm Dimensions in mm (1 mm = 0.03937 inches) M3 screw head M4 screw head [Locking screw] External  = 7 Height = 2 External  = 9 Height = 2.5 16.9.2 Protection against contact plates 500 Nm to 10 kNm Dimensions in mm (1 mm = 0.03937 inches)

  • Page 80: Mounting Dimensions

    16.10 Mounting dimensions Mounting dimensions Measuring Mounting dimension (mm) Stator Rotor range mid-point mid-point 100 Nm 200 Nm 500 Nm 1 kNm 2 kNm 3 kNm 5 kNm 10 kNm (Tolerance "1 mm) Reserved add. space for fieldbus connection cables: approx.

  • Page 81: Supplementary Technical Information

    Supplementary technical information Axial and radial run-out tolerances Axial run-out AB Radial run-out Internal Hardness 46 to 54 HRC centering Surface quality of the axial and radial run-out tolerances (A, B and AB) Measuring range (NVm) Axial run-out tolerance (mm) Radial run-out tolerance (mm) 0.01...

  • Page 82: Condition At The Time Of Delivery

    Condition at the time of delivery Parameter factory settings are marked with an asterisk (*). Underlined parameters are not overwritten by returning to the factory settings. SYSTEM Default settings Project name My Project Language Deutsch; English Define pass code (1 – 9999) Pass code active? Yes*;...
  • Page 83 Calibration initials for rotational speed/angle of rotation output Calibration cycle for rotational speed/angle of rotation output Measuring point number Voltage calibration date 30.11.06 (dd.mm.yyyy) Voltage calibration initials Voltage calibration cycle Measuring point number Pass code input Enter pass code (1 – 9999) TRANSDUCER PARAMETERIZATION Torque Measuring point designation...
  • Page 84 Rotational speed/angle of rotation output Measuring point designation MySpeedMeasPnt Measuring point number Mechanical increments 360*/720* Signals F1/ F2 Frequency* Pulse (pos. edge)/direction of rotation Pulse (pos./neg. edge)/direction of rotation Pulse (4 edges)/direction of rotation Output pulse division 1*; 2; 4; 6; 8; 12 Increments per revolution 360*/720* Hysteresis for reversing the...
  • Page 85 Angle of rotation Measuring range 0 to n x 360 degrees, pos. direction of rotation* 0 to n x 360 degrees, neg. direction of rotation 0 to −n x 360 degrees, pos. direction of rotation 0 to −n x 360 degrees, neg. direction of rotation −n x 360 to n x 360 degrees, pos.
  • Page 86 Choose parameter set 1*; 2; 3; 4; factory settings Save to transducer Choose parameter set 1; 2; 3; 4 TEDS template for torque HBM Frequency Sensor* High Level Voltage Output Rotational speed/angle of rotation HBM Frequency Sensor* output HBM Pulse Sensor...

  • Page 87: Ordering Numbers

    "10 V Order no.: For voltage output: lin. "0.05% ; K-T12 − "0.1%/10 K For Option 3, code L only; see Ordering example: data sheet B1957-xx de for K-T12 − 5 0 0 Q S F 1 specifications. A1979−10.0 en...

  • Page 88: Accessories

    Termination resistor PROFIBUS M12, B-coded, 5-pin 1−PROFI−AB−M12 T-piece PROFIBUS M12,B-coded, 5-pin 1−PROFI−VT−M12 Connection cable, by the meter Kab8/00−2/2/2 4−3301.0071 Kab8/00−2/2/2/1/1 4−3301.0183 DeviceNet cable 4−3301.0180 Other Setup toolkit for T12 (System CD T12, PCAN-USB adapter, CAN Bus 1−T12−SETUP−USB connection cable, 6 m) A1979−10.0 en...
  • Page 89 A1979−10.0 en...
  • Page 90 A1979−10.0 en...
  • Page 92 They are not to be understood s a guarantee of quality or durability. Hottinger Baldwin Messtechnik GmbH Im Tiefen See 45 S 64293 Darmstadt S Germany Tel. +49 6151 803−0 S Fax: +49 6151 803−9100 Email: info@hbm.com S www.hbm.com measure and predict with confidence...
