Eaton Zeta 3 Installation Instructions

 Product luminaires comply with EN60598 and are suitable for use in normal interior/exterior conditions.
 This luminaire has an ambient temperature range of 5 C to 25 C.

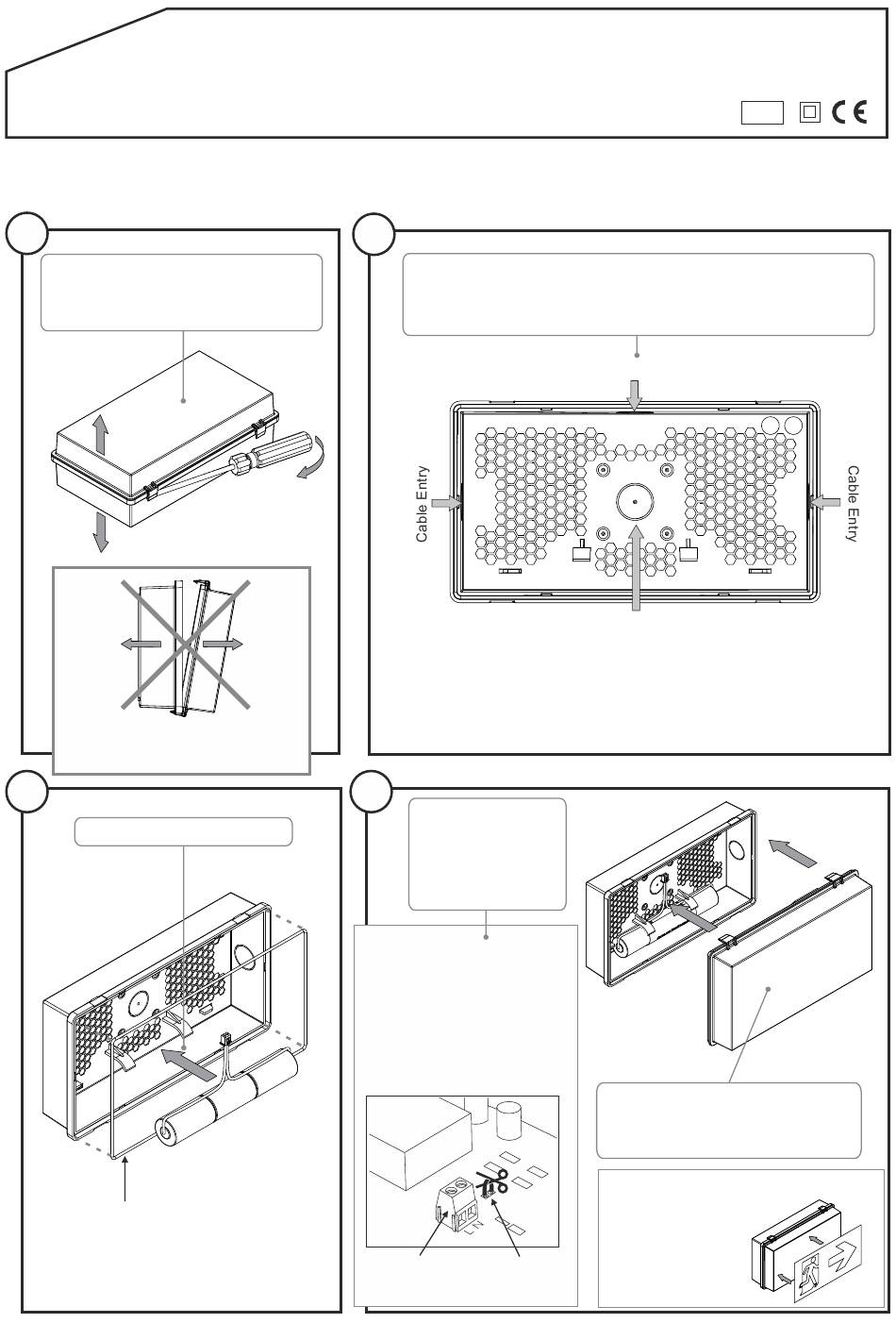

1
Using a screwdriver, release 4 x clips
and remove transparent lid.
Remove the battery and gasket from
the base.
ENSURE ALL 4 CLIPS ARE RELEASED,
FORCING OPEN WITH ONLY 2 CLIPS
OPEN WILL DAMAGE THE OTHER CLIPS
3
Clip battery back into position
Optional Gasket
If fitting is required to be IP65 rated,
ensure gasket is fitted around outside
groove. If not required, please discard.
Installation Instructions for:
Zeta 3
o o
2
Take base of fitting, knock through the preferred cable entry point.
Note: Centre cable entry requires drilling. Using the hexagonal
pattern, knock out suitable points and mount to fixing surface, if
wall mounted ensure battery clips are at the bottom of the fitting
NOTE: If the fitting is required to be IP65 rated, ensure a suitable IP65 rated cable
gland is used to seal cable entry.
For BESA entry or fixing points, fit to a flat surface. Sealant or suitable sealing
washers should be applied around fixing screw heads to maintain the ingress
protection of the luminaire.
4
Feed mains cable
through cable entry
and wire the PCB on
the lid as per below,
connect the battery
lead to the PCB
Wiring
Zeta 3 can be operated in
Maintained or Non-Maintained
mode by cutting or removing the
link on the PCB.
Note: There is 'no' switched
input supply to the luminaire
and therefore cannot be remotely
switched between maintained
and non-maintained operation.
Link Wire
Terminal Block:
L - Live (Brown)
N - Neutral (Blue)
Cable Entry
Cable Entry with
Besa entry available
Refit lid on to the base, ensuring the
capacitors are the opposite side to
the battery in the base. Ensure tabs
are fully fastened to ensure IP rating

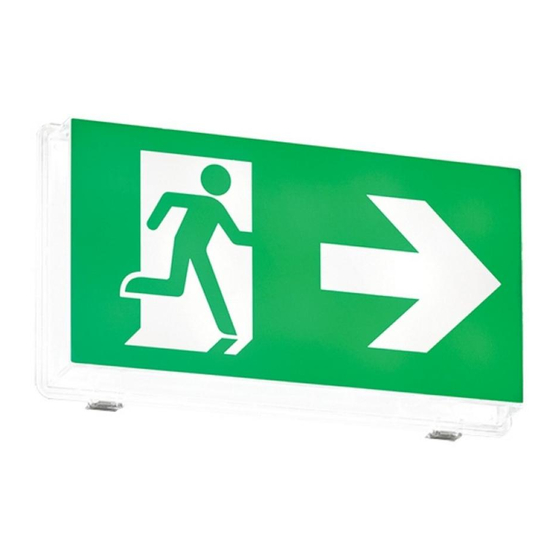

Fitting the Legend (Ordered separately)
Self adhesive legends
can be fitted to the
front face, use
soapy water to
position correctly.
IP65
