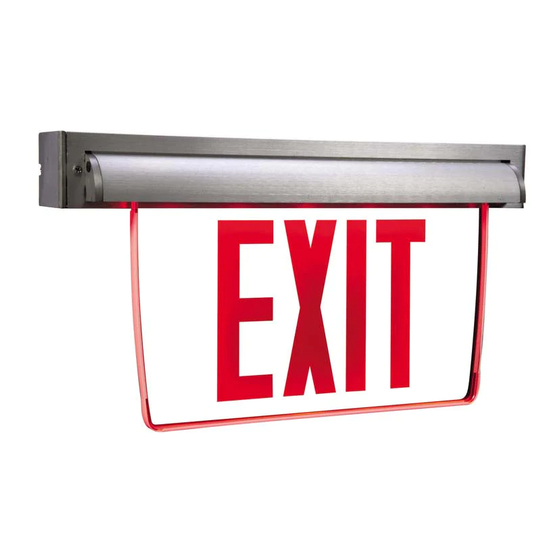

Eaton EUX Universal Edge Lit Exit Installation Instructions Manual

049-240
Installation Instructions for the EUX Universal Edge Lit Exit – Battery Backup
Instructions d'installation pour enseigne de sortie à éclairage périphérique
universel EUX - Pile de secours
Instrucciones de instalación para la señal de salida universal de iluminación de
borde EUX -Batería de respaldo
WARNING
Risk of Fire/Electric Shock
If not qualified, consult an electrician.
Important Safeguards
WHEN USING ELECTRICAL EQUIPMENT, BASIC
SAFETY PRECAUTIONS SHOULD ALWAYS BE
OBSERVED INCLUDING THE FOLLOWING.
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Dry location only. Do not use outdoors.
3. Do not use in hazardous locations, or near gas or
electric heaters.
4. Do not let power supply cords touch hot surfaces.
5. Use caution when servicing batteries. Battery
acid can cause burns to skin and eyes. If acid is
spilled on skin or in eyes, flush acid with fresh
water and contact a physician immediately.
6. Do not use this equipment for other than the
intended use.
7. Installation is to be performed only by qualified
personnel.
8. Install in accordance with National Electric Code
and local regulatory agency requirements.
9. The use of accessory equipment not
recommended by the manufacturer may cause
an unsafe condition.
10. Equipment should be mounted in locations and
at heights where it will not readily be subjected
to tampering by unauthorized personnel.
11. SAVE THESE INSTRUCTIONS
WARNING
Risk of Electric Shock
Disconnect power at fuse or circuit breaker before
installing or servicing.
For Recessed Installation
1. Turn off power supply.
2. Determine if the fixture will be mounted in the
ceiling or the wall.
3. Remove the screws securing the trim plate to the
housing (See Figure 1). Place the trim assembly
and screws aside and save them for later
installation. It is not necessary to disconnect the
wire harness connecting the charger driver circuit
board to the LED board. Instead, the trim plate
can be hung from the sliding plastic installation
hook (see figure 2).
4. Determine where supply wires will be brought
into the fixture. There are knockouts in each
endcap on the side of the housing, and a hole
between the hanger bars. If the hole between the
hanger bars is to be used, remove the two screws
holding the cover plate and the hanger bars,
discard the plate, and then replace the screws
and hanger bars.

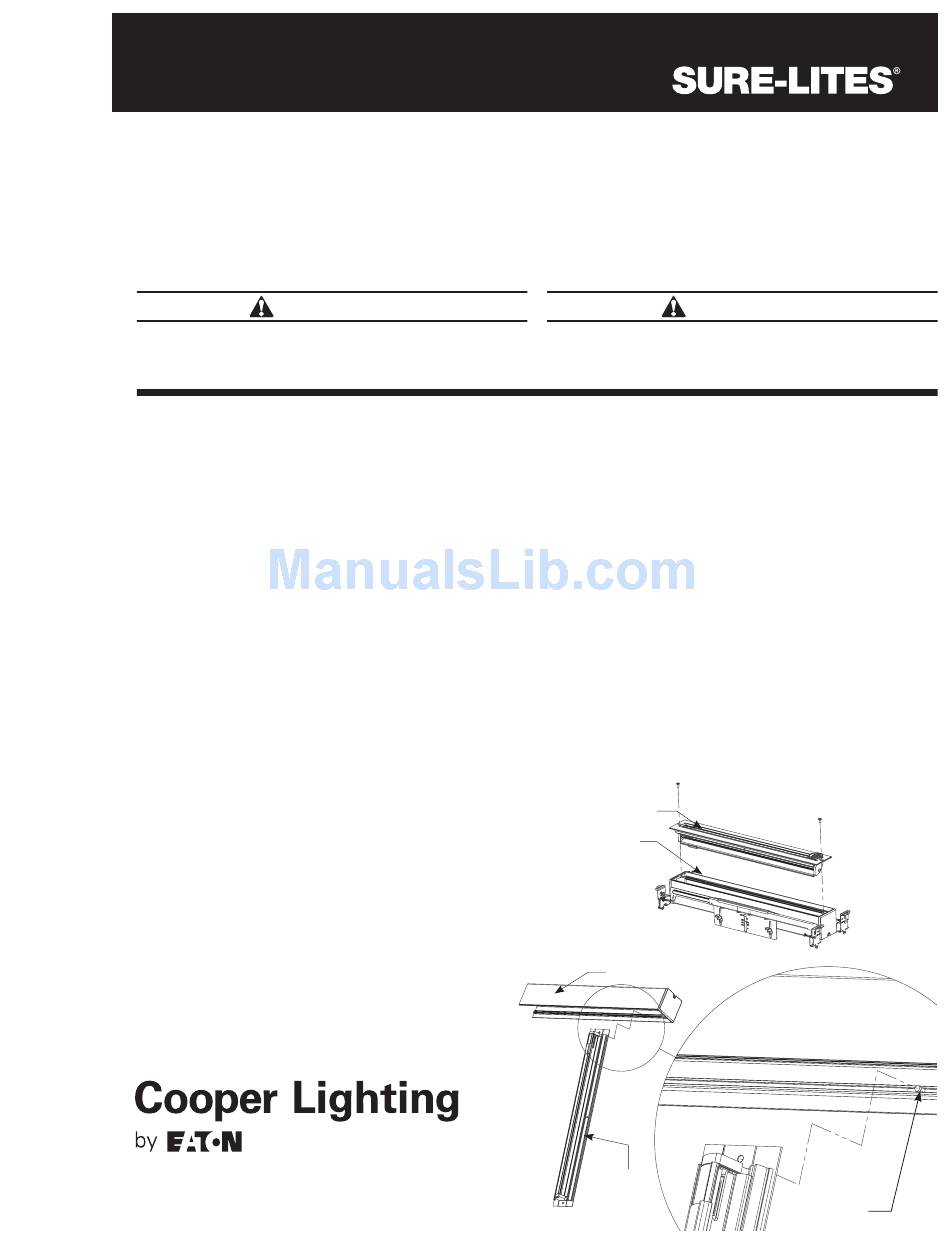

Trim Plate
Housing
Figure 1
Housing
Trim
Assembly
Figure 2
INS #
Plastic
Installation
Hook
