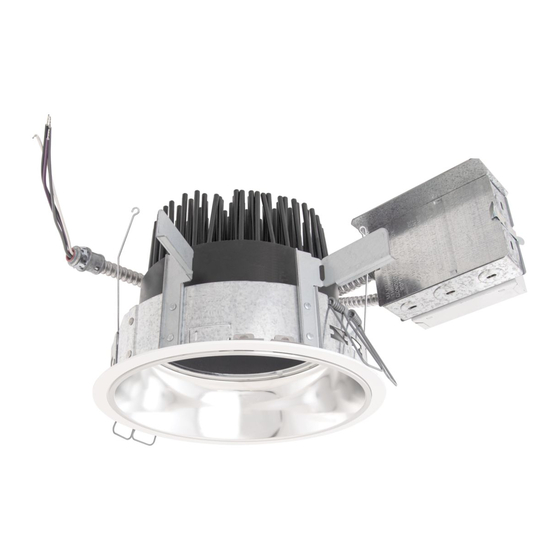

Recessed led retrofit
Table of Contents

Advertisement

Available languages

Available languages

IB520052EN
Installation Instructions – LDRT8B/LDRT812B Recessed LED
Retrofit
Instructions d'installation – LDRT8B/LDRT812B LED Retrofit
encastré
Instrucciones de instalación de las luminarias LED adaptadoras,
empotradas y de uso LDRT8B/LDRT812B
IMPORTANT: Read carefully before installing fixture. Retain
for future reference.
WARNING
Risk of Electrical Shock! Disconnect power at fuse or
circuit breaker before installing or servicing.
WARNING
Risk of Fire! Do not install insulation within 76 mm
(3 in) of any part of the luminaire or in a way that may
entrap heat.
WARNING
To prevent wiring damage or abrasion, do not expose
wiring to edges of sheet metal or other sharp objects.
WARNING
Installation and servicing to be performed only
by qualified personnel, if not qualified, consult an
electrician.
WARNING
Do not energize the LED Engine until the protective
covering has been removed and the lower trim
properly installed. Do not touch the yellow surface of
the LED as it may damage the light engine.
This fixture should be supported by main runners or
N
otee:
other structure that is capable of supporting fixture
weight of 30 Ibs.
SAFETY: When using electrical equipment, basic safety
precautions should always be followed, including the
following:
1.
This unit is for recessed mounting only. Do not use in
hazardous locations nor near gas or electric heaters.
2.
Do not use this equipment for other than the intended
use.
3.
Install only in accordance with National Electrical Code
and local regulatory agencies' requirements.
4.
Install this kit only in luminaires that have the
construction features and dimensions shown in the
photographs and/or drawings.
5.
Installation of this retrofit assembly requires a person
familiar with the construction and operation of the
luminaire's electrical system and the hazard involved.
If not qualified, do not attempt installation. Contact a
qualified electrician.
6.
Do not alter, relocate, or remove wiring, lampholders,
power supply, or any other electrical component
unless specifically mentioned in these instructions or
shown in the included photographs and/or drawings.
7 .
Only those open holes indicated in the photographs
and/or drawings may be made or altered as a result of
kit installation. Do not leave any other open holes in
an enclosure of wiring or electrical components.
TM
INS #

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Portfolio DRT8B and is the answer not in the manual?

Questions and answers

Summary of Contents for Eaton Portfolio DRT8B

  • Page 1 INS # IB520052EN Installation Instructions – LDRT8B/LDRT812B Recessed LED Retrofit Instructions d’installation – LDRT8B/LDRT812B LED Retrofit encastré Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso LDRT8B/LDRT812B This fixture should be supported by main runners or IMPORTANT: Read carefully before installing fixture. Retain otee: for future reference.
  • Page 2: Installation

    (see Wiring Diagrams). 10. Replace ballast/junction box cover to completely close junction box. Installation Instructions – LDRT8B/LDRT812B Commercial Recessed LED Retrofit IB520052EN www.eaton.com...
  • Page 3 Feed supply wires from retrofit driver assembly through knock-out that was removed in junction box and insert snap-in connector into junction box (Figure 18). Figure 17 Figure 18 Installation Instructions – LDRT8B/LDRT812B Commercial Recessed LED Retrofit IB520052EN www.eaton.com...
  • Page 4 Adapter Band Ring (if present) rest flush on ceiling. Retrofit Ring Assembly may need to be rotated to avoid interference (Figure 30). Figure 29 Figure 30 Installation Instructions – LDRT8B/LDRT812B Commercial Recessed LED Retrofit IB520025EN www.eaton.com...
  • Page 5 (Figure 39). 10. Press LED module and reflector assembly into retrofit ring assembly until flush with ceiling (Figure 40). 11. Restore power after installation of fixture is completed. Figure 36 Installation Instructions – LDRT8B/LDRT812B Commercial Recessed LED Retrofit IB520052EN www.eaton.com...
  • Page 6: Electrical Connection

    Wipe with mild detergent solution on a soft, clean cloth to remove fingerprints and stains. Rinse with clean water and dry with soft, clean, dry lint- free cloth. Installation Instructions – LDRT8B/LDRT812B Commercial Recessed LED Retrofit IB520052EN www.eaton.com...
  • Page 7: Driver Replacement

    Driver BLACK (LINE) BLACK (LINE) BLUE TRAILING EDGE WHITE WHITE OR 0-10V DIMMING (NEUTRAL) (NEUTRAL) DRIVER. PURPLE GROUND BLACK GRAY MODULE WIRING DIAGRAM 0-10V DIMMING OPTION (FIELD INSTALLATION) Figure 42 Installation Instructions – LDRT8B/LDRT812B Commercial Recessed LED Retrofit IB520052EN www.eaton.com...
  • Page 8 The Portfolio LDRT8B*DLE/LDRT812B*DLE Series can be dimmed with Lutron EcoSystem® digital controls. To be assured of the latest information regarding luminaire and dimmer compatibility, please reference the Portfolio LED website: www.portfolio-lighting.com. Installation Instructions – LDRT8B/LDRT812B Commercial Recessed LED Retrofit IB520052EN www.eaton.com...
  • Page 9 Module DEL Portfolio bague d’accouplement de Outils nécessaires (facultatif) (Vendu séparément) luminaire de 30,5 cm. • Tournevis à tête plate (entre autres) Anneau adaptateur (en option) Réflecteur DEL Portfolio (Vendu séparément) Instructions d’installation – LDRT8B/LDRT812B DEL Retrofitb commercial encastré IB520052EN www.eaton.com...
  • Page 10 Pour les boîtiers de fluorescents compacts verticaux Retirez le réflecteur ou la garniture et l’ampoule (Figure 7). Réglez le support à douille à la position la plus haute (Figure 8). Figure 9 Figure 10 Instructions d’installation – LDRT8B/LDRT812B DEL Retrofitb commercial encastré IB520052EN www.eaton.com...
  • Page 11 été retirée dans la boîte de jonction, et insérez le connecteur à pression à l’intérieur de la boîte de jonction (Figure 18). Figure 17 Figure 18 Figure 11 Figure 12 Figure 19 Figure 20 Instructions d’installation – LDRT8B/LDRT812B DEL Retrofitb commercial encastré IB520052EN www.eaton.com...
  • Page 12 Pour éviter un déplacement dans l’ouverture du boîtier/ plafond, utilisez un tournevis à tête plate pour dégager les 4 languettes de centrage sur l’assemblage d’anneaux Retrofit (Figure 32.). Orientation vers le bas Figure 31 Instructions d’installation – LDRT8B/LDRT812B DEL Retrofitb commercial encastré IB520052EN www.eaton.com...
  • Page 13 à ressorts situés à l’intérieur de l’ensemble d’anneaux installé après coup, des deux côtés (Figure 39). débranchement Figure 36 rapide du luminaire moteur lumineux à sur l’assemblage de la garniture Ressorts de torsion Figure 33 Figure 37 Instructions d’installation – LDRT8B/LDRT812B DEL Retrofitb commercial encastré IB520052EN www.eaton.com...
  • Page 14: Raccordement Électrique

    à l’intérieur de la boîte de jonction et fermez supérieur le couvercle. Insérez tous les raccords et les fils dans la boîte de jonction et fermez le couvercle. Lentille Figure 38 Figure 41 Instructions d’installation – LDRT8B/LDRT812B DEL Retrofitb commercial encastré IB520052EN www.eaton.com...
  • Page 15: Schémas De Câblage

    SCHÉMA DE CÂBLAGE VERT MISE À LA TERRE POUR MODULE NOIR OPTION DE SCHÉMA DE CÂBLAGE MISE À LA TERRE GRADATEUR POUR MODULE 0 - 10 V (INSTALLÉ SUR PLACE) Instructions d’installation – LDRT8B/LDRT812B DEL Retrofitb commercial encastré IB520052EN www.eaton.com...
  • Page 16 Lutron EcoSystemMD. Pour vous assurer de posséder les informations les plus récentes à propos de la compatibilité du gradateur et du luminaire, veuillez consulter le site Web des luminaires à DEL de Portfolio : www.portfolio-lighting.com. Instructions d’installation – LDRT8B/LDRT812B DEL Retrofitb commercial encastré IB52052EN www.eaton.com...
  • Page 17 • Destornillador de cabeza plana (de otras marcas) (opcional) Módulo LED Portfolio Reflector LED Portfolio (se vende por separado) (se vende por separado) Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso comercial LDRT8B y LDRT812B IB520052EN www.eaton.com...
  • Page 18: Instalación

    Ajuste el soporte del portacasquillo en su posición máxima (Figura 8). Ubique la caja de derivación, extraiga la cubierta del Figura 9 Figura 10 Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso comercial LDRT8B y LDRT812B IB520052EN www.eaton.com...
  • Page 19 10. Vuelva a colocar la cubierta del balasto/la caja de derivación para cerrar por completo la caja de Figura 22 Figura 21 derivación. Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso comercial LDRT8B y LDRT812B IB520052EN www.eaton.com...
  • Page 20 Puede ser necesario girar la unidad del anillo adaptador para evitar su obstaculización (Figura 30). Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso comercial LDRT8B y LDRT812B IB520052EN www.eaton.com...
  • Page 21 LED (Figura 36). El anillo de la moldura (opcional) debe colocarse entre el techo y la moldura inferior. Figura 35 Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso comercial LDRT8B y LDRT812B IB520052EN www.eaton.com...
  • Page 22: Conexión Eléctrica

    Coloque todos los cables y conexiones excedentes en la caja de derivación y vuelva a colocar la cubierta. Figura 38 Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso comercial LDRT8B y LDRT812B IB520052EN www.eaton.com...
  • Page 23: Diagramas De Cableado

    VIOLETA NEGRO CONEXIÓN A TIERRA GRIS DIAGRAMA DE CABLEADO DE MÓDULO OPCIÓN DE REGULADOR DE 0-10 V (INSTALACIÓN EN CAMPO) Figura 42 Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso comercial LDRT8B y LDRT812B IB520052EN www.eaton.com...
  • Page 24 Para asegurarse de que cuenta con información actualizada sobre la compatibilidad entre luminarias y reguladores, remítase al sitio web de las luminarias LED Portfolio: www.portfolio-lighting. com. Instrucciones de instalación de las luminarias LED adaptadoras, empotradas y de uso comercial LDRT8B y LDRT812B IB520052EN www.eaton.com...
  • Page 25 Warranties and Limitation of Liability Please refer to www.eaton.com/WarrantyTerms for our terms and conditions. Garanties et limitation de responsabilité Veuillez consulter le site www.eaton.com/WarrantyTerms pour obtenir les conditions générales. Garantías y Limitación de Responsabilidad Visite www.eaton.com/WarrantyTerms para conocer nuestros términos y condiciones.
