Summary of Contents for Erie water treatment IQsoft

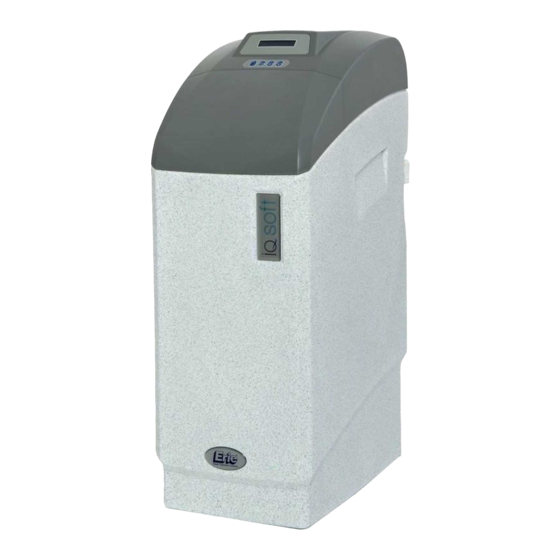

- Page 1 Technical Manual WATER SOFTENER Models: IQ-CS- © 2018 erie water treatment TM-EN-IQ-CS-Rev2018.06...
-
Page 2: Table Of Contents
TABLE OF CONTENT Table of content ........................Page 2 Warning & Safety instructions ....................Page 3 Operating conditions & Requirements ..................Page 4 Installation ..........................Page 5 Commissioning ......................... Page 6 Electronic control panel ......................Page 7 Maintenance ..........................Page 12 Hydraulic flow diagrams ...................... -
Page 3: Warning & Safety Instructions
WARNING & SAFETY INSTRUCTIONS Before you begin the installation of the appliance, we advise you read • and carefully follow the instructions contained in this manual. It contains important information about safety, installation, use and maintenance of the product. The actual system that you have received, may differ from the pictures/illustrations/descriptions in this Technical Manual. -
Page 4: Operating Conditions & Requirements
OPERATING CONDITIONS & REQUIREMENTS OPERATING PRESSURE MIN-MAX: 1,4-8,3 bar / 20-120 psi • − this appliance is configured to perform optimally at an operating pressure of 3 bar (45 psi) ±½ bar (7 psi); in case of a lower or higher operating pressure the performance may be affected negatively! −... -
Page 5: Installation
INSTALLATION PREPARATION BRINE CABINET DRAIN We recommend the use of a stand pipe with P-trap. Picture 1&10 To facilitate the installation, you may want to remove the salt To prevent backflow from the sewerage system into the lid and main cover from the brine cabinet. appliance, always install and use the included drain adaptor with air gap and double hose barb, to connect the drain hoses to the sewerage system. -
Page 6: Commissioning
COMMISSIONING • to reduce the residual hardness: turn the screw ELECTRICAL clockwise. 2. Measure the residual water hardness with a water Picture 5 hardness test kit; readjust if necessary. 1. Plug the transformers output lead into the socket on the appliances power cord;... -
Page 7: Electronic Control Panel
ELECTRONIC CONTROL PANEL Picture 7 SERVICE MODE In service mode the display shows: symbol button function • on 1 line: the time of day and the remaining capacity; to advance to the next SCROLL • on 2 line: alternately every 5 seconds: parameter the total volume of water used since commissioning;... - Page 8 ELECTRONIC CONTROL PANEL • To cancel this mode, press the scroll button PROGRAMMING INSTRUCTIONS - repeatedly; the control panel will return to the service BASIC SETTINGS mode. Before entering the programming mode, make sure that SALT LEVEL ALARM the appliance is in service mode. ...
- Page 9 ELECTRONIC CONTROL PANEL 7. Press the scroll button again; the display will show: PROGRAMMING INSTRUCTIONS - CONFIGURATION PARAMETERS Override: 7 days All configuration parameters on this appliance have been pre-programmed in the factory, to offer optimal • Press the up or down button to set the number performance in a wide range of applications and situations.
- Page 10 ELECTRONIC CONTROL PANEL 12. Press the scroll button again; the display will show: DIAGNOSTICS MODE Alarm interval: In the Diagnostics mode several operating parameters 9 Regens can be consulted; particularly during a service intervention, these parameters can be helpful to identify the cause of a •...
- Page 11 MAINTENANCE WITH 3-VALVE BYPASS SYSTEM (not included) RECOMMENDATION Picture 9.a Notwithstanding the reliability of the appliance, we strongly recommend to have it serviced and maintained on a regular SERVICE POSITION basis by a competent and duly trained technician. He will be ...
-
Page 12: Maintenance
MAINTENANCE SANITIZING THE APPLIANCE This appliance is manufactured from premium quality material and assembled in safe conditions to assure it is clean and sanitary. If installed and serviced correctly, this appliance will not infect or contaminate your water supply. However, as in any 'device' plumbed-in in your water distribution system, a proliferation of bacteria is possible, especially in case of 'stagnant water'. -
Page 13: Hydraulic Flow Diagrams
HYDRAULIC FLOW DIAGRAMS SERVICE REFILL BRINE PREP. BRINE DRAW SLOW RINSE FAST RINSE SERVICE REFILL BRINE PREPARATION BRINE DRAW / SLOW RINSE FAST RINSE Page 13... -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Hard (untreated) water Open or defective bypass Close or replace bypass to service Appliance in regeneration Wait until regeneration finishes or manually advance regeneration to end No salt in brine cabinet Add salt and initiate regeneration manually Salt bridging Break salt bridge(s) and initiate regeneration manually... - Page 15 TROUBLESHOOTING PROBLEM CAUSE SOLUTION Improper brine draw Low operating pressure Check operating pressure; must be higher than 1,4 Plugged injector and/or brine draw restrictor Clean injector and/or brine draw restrictor Plugged injector filter Clean injector filter Restricted drain line Verify drain line for kinks or restrictions Restricted brine line Verify brine line for kinks or restrictions Leak in brine line...
-
Page 16: Electrical Wiring Diagram
ELECTRICAL WIRING DIAGRAM = flow meter = power lead = auxilliary contacts (2 x 24 VDC, max. 500mA) AUX1 = LED light brine cabinet AUX2 = Function can be programmed = refill solenoid (marked ‘RF’) ... -
Page 17: Default Configuration Parameter Settings
DEFAULT CONFIGURATION PARAMETER SETTINGS Model IQ-CS- Resin Units Metric Metric Metric Metric MaintInt (mths) (1) (2) Exchange capacity per liter resin (°f M Age correction (%) Resin (liters) Override (days) Cycle 1: REFILL (sec) Cycle 2: BRINE PREPARATION (min) Cycle 3: BACKWASH (min) Cycle 4: BRINE DRAW/SLOW RINSE (min) Cycle 5: FAST RINSE (min) Regen... -
Page 18: Exploded View - System
EXPLODED VIEW - SYSTEM Page 18... - Page 19 3 mtr Drain hose 74170 5 mtr 74163 Air gap with double hose barb 38521 Clamp, drain hose (4x) 39004 Dome label ‘erie water treatment’ 39013 Dome label ‘IQsoft’ 39009 Cabinet body, micro 39010 Cabinet body, mini 39011 Cabinet body, midi...
-
Page 20: Exploded View - Cover Assembly
EXPLODED VIEW - COVER ASSEMBLY Page 20... - Page 21 EXPLODED VIEW - COVER ASSEMBLY Item Description Remark 71502 Screw, PCB housing 39003 PCB housing back ✓ 74360 Printed Circuit Board, 24VDC 39020 PCB housing front assembly 39000 Main cover ✓ 74343 Back wash solenoid cable (marked ‘BW’) ✓ 74340 Refill solenoid cable (marked ‘RF’) ✓...
-
Page 22: Exploded View - Valve Body Assembly
EXPLODED VIEW - VALVE BODY ASSEMBLY Page 22... - Page 23 EXPLODED VIEW - VALVE BODY ASSEMBLY Item Description Remark ✓ 74345 Solenoid coil ✓ 74346 Solenoid assembly: Only available as assembly • Guide • Spring • Plunger • Diaphragm ✓ 74328 Screw, back cap (4x) ✓ 74306 Back cap 74258 Brine elbow 74015 Brine draw restrictor 0,8 mm (white)
-
Page 24: Exploded View - Valve Head Assembly
EXPLODED VIEW - VALVE HEAD ASSEMBLY Item Description Remark 74328 Screw, valve head 74375 Valve head 541/300/J Drain flow control 2,6 gpm 74371 Filter, drain solenoid 74364 O-ring, valve head (2x) 74376 Holder, solenoid valve head 74353 Clip, valve head ✓... -
Page 25: Technical Data
TECHNICAL DATA Technical specifications: Model IQ-CS Resin (Ltr) Operating pressure min/max (bar) 1,4/8,3 Operating temperature min/max (°C) 2/48 Electrical connection 100-230/24VDC - 50/60Hz Maximum power consumption (VA) Hydraulic connection inlet/outlet ¾” BSP Male Supplied with 24VDC transformer Performances @ 3 bar operating pressure Model IQ-CS Resin (Ltr) - Page 26 Page 26...
- Page 27 Page 27...
- Page 28 Aquion, Inc. www.eriewatertreatment.com...
